Product Description

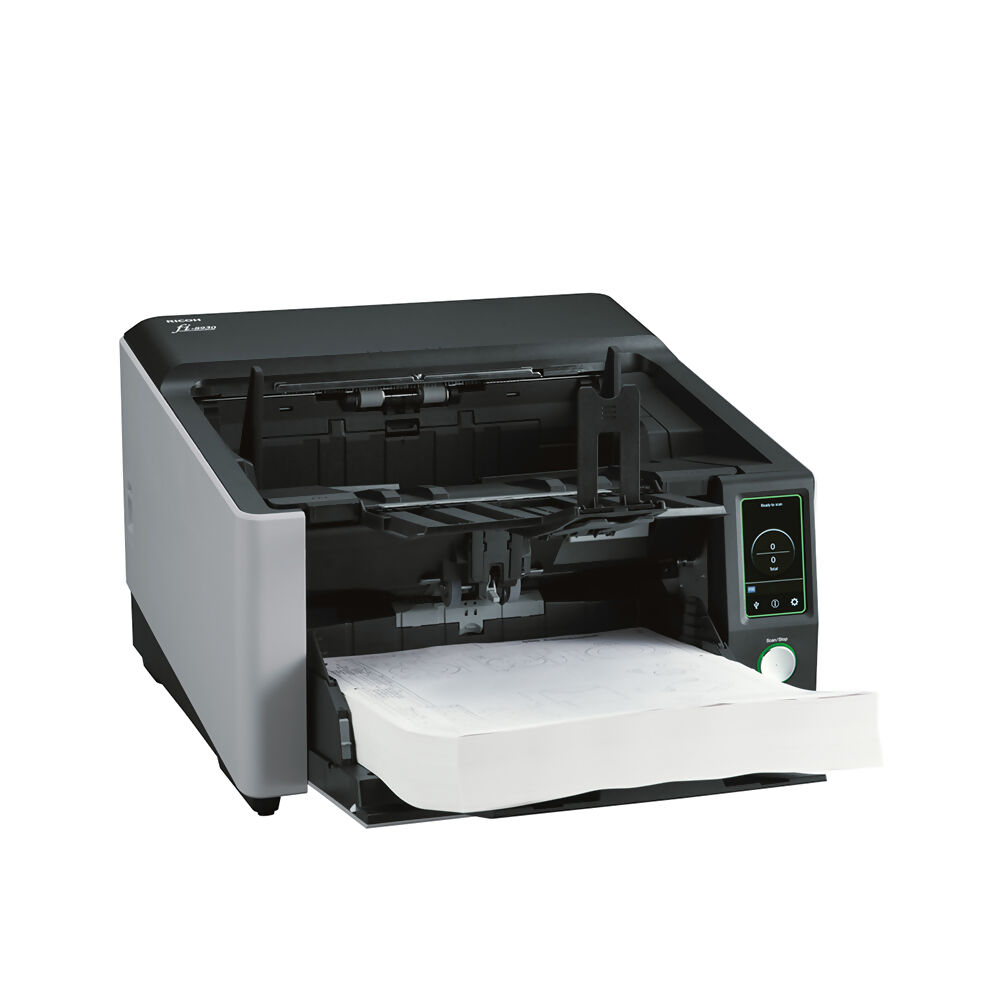

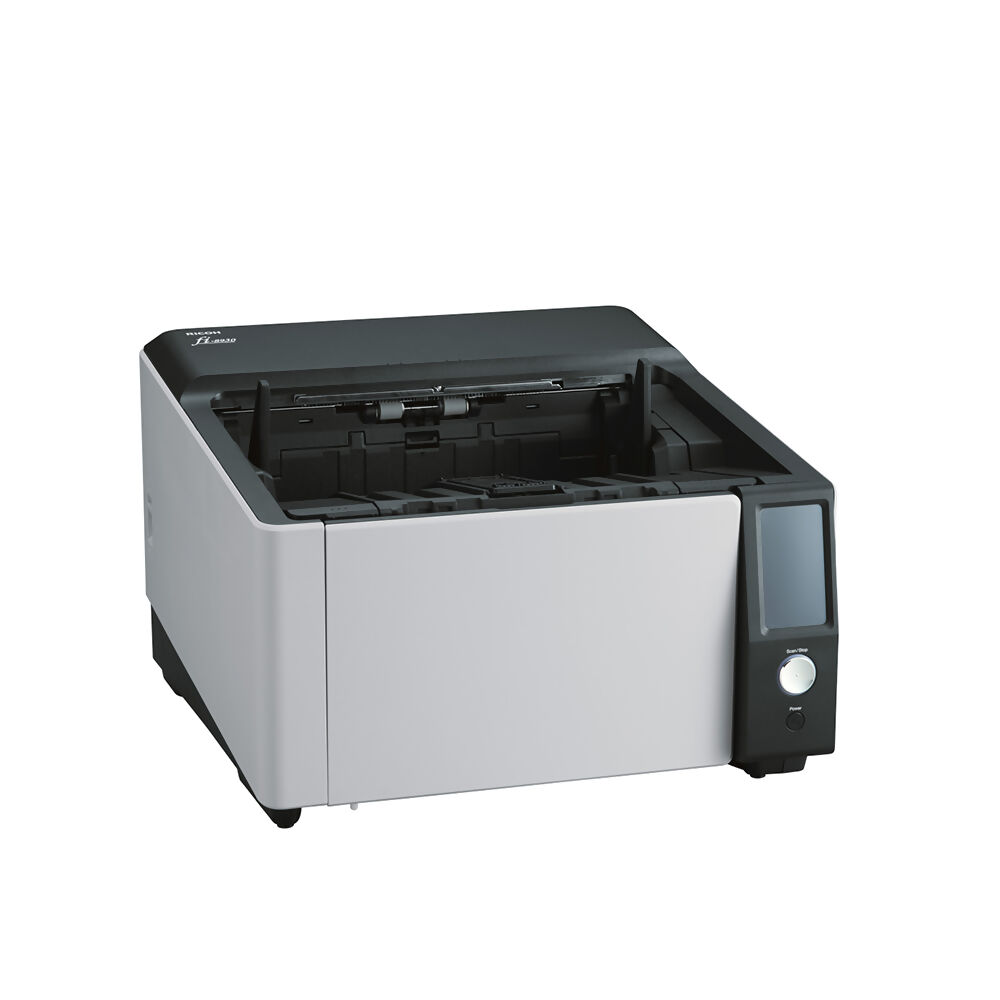

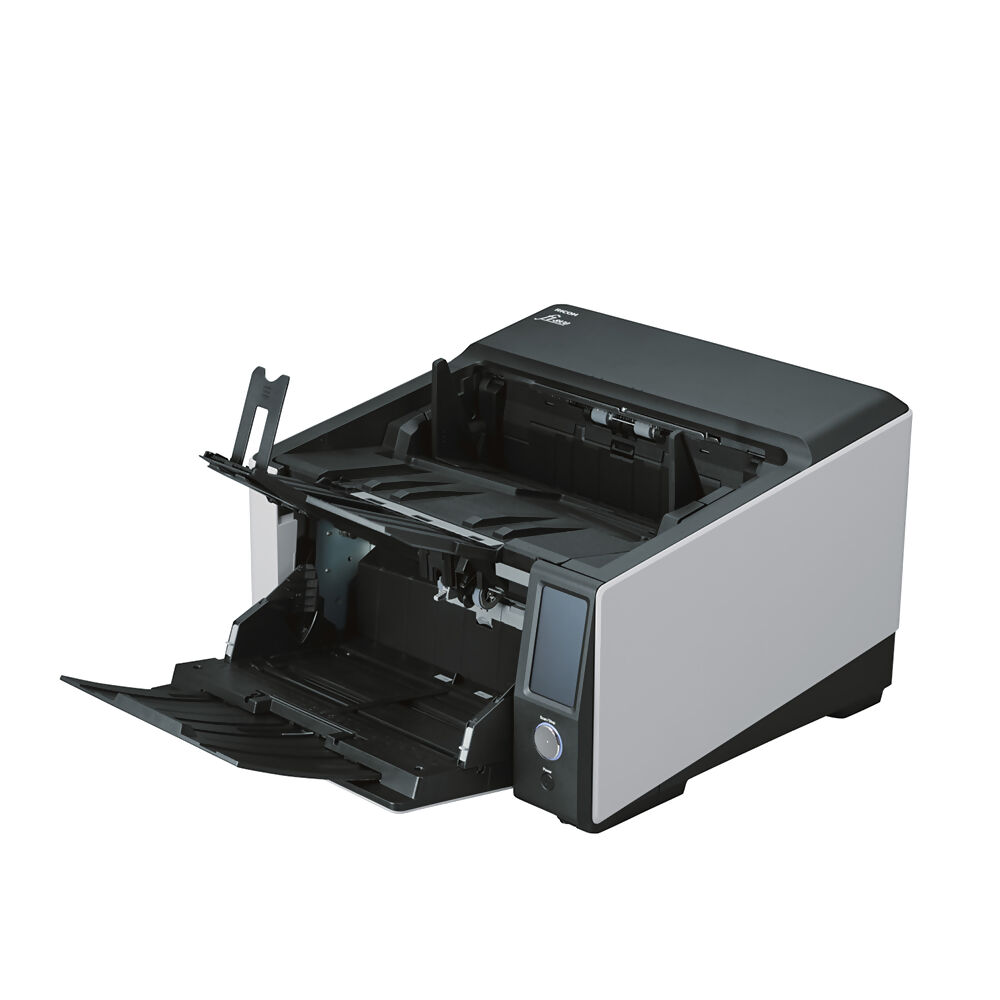

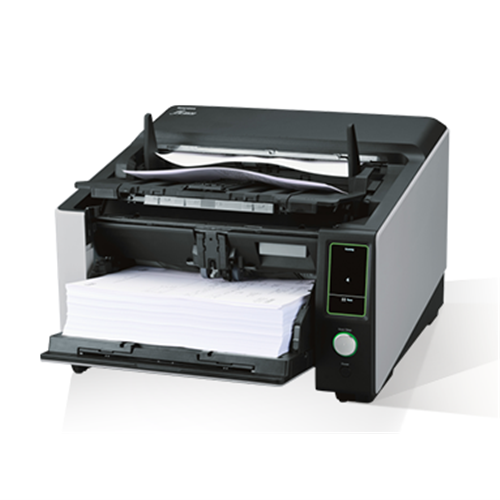

The fi-8930 is an A3 document scanner highly optimized for heavy-duty scanning. The scanner comes with features that help with reliable scanning, such as Automatic Skew Correction and Stapled Documents Detection. As an ideal model for scanning a large volume daily, the scanner offers speeds of 130 ppm/260 ipm (200/300 dpi, color, A4 landscape), loads up to 750 sheets at a time, and is capable of scanning up to 110,000 sheets a day.
Automatic Separation Control function and Automatic Skew Correction to ensure stable feeding
Stapled Documents Detection stops feeding of stapled documents immediately
Enhanced paper ejection control for easy paper collection from the stacker
Scan a wide variety of documents with just a switch to the Manual Feed Mode and the Straight Scan
User-friendly 4.3-inch touch screen for easier operation
Easy daily cleaning
Supports both LAN and USB 3.2 connectivity
Scanner Central Admin Desktop enables central management of scanners without a server
Optimized high-quality image data with "PFU Clear Image Capture"
Comes with PaperStream IP and PaperStream Capture, providing advanced image processing functions, with PaperStream Capture Pro software as a premium option
PaperStream ClickScan is also available for ad-hoc use to scan in 3 simple steps
Specifications:-
Scanner Type ADF (Automatic Document Feeder)/Manual Feed, Duplex
Scanning Speed (A4 Landscape)(Color*2/Grayscale*2/Monochrome*3) Simplex: 130 ppm (200/300 dpi)
Duplex: 260 ipm (200/300 dpi)
Scanning Speed (A4 Portrait) Simplex: 100 ppm (200/300 dpi)
(Color/Grayscale/Monochrome) Duplex: 200 ipm (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 4 (front x 2, back x 2)
Optical Resolution 600 dpi
Output Resolution (Color/Grayscale/Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White/Black (selectable)
Document Size Maximum 304.8 x 431.8 mm (12 x 17 in.)
Minimum 48 x 70 mm (1.9 x 2.8 in.)
Long Page Scanning 6,096 mm (240 in.) (up to 200 dpi)
Paper Weight (Thickness)
Straight Scan Larger than A5 and up to A4 Size 20 to 570 g/m² (5.3 to 152 lb)
A5 or Smaller and Over A4 Size 40 to 570 g/m² (11 to 152 lb)
Envelope 1.25 mm or less
U-turn Scan Larger than A5 and up to A4 Size 20 to 209 g/m² (5.3 to 56 lb)
A5 or Smaller Size 64 to 209 g/m² (17 to 56 lb)
Over A4 Size 64 to 256 g/m2 (17 to 68 lb)*7
ADF Capacity 750 sheets (A4 80 g/m² or Letter 20 lb)
Total thickness: less than 80 mm
500 sheets (A3 80 g/m² or Letter 20 lb)
Total thickness: less than 53 mm
Expected Daily Volume 110,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Stapled Documents Detection, Lag Detection
Other Functions: Automatic Skew Correction
Interface
USB USB 3.2 Gen1/USB 3.0/USB2.0/USB1.1
Ethernet 10BASE-T/100BASE-TX/1000BASE-T
Power Requirements AC 100 to 240 V ±10%
Power Consumption Operating Mode 70 W or less/40 W or less (Eco mode)
Sleep Mode 2.5 W or less
Auto Standby (Off) Mode 0.2 W or less
Operating Environment Temperature 5 to 35°C (41 to 95°F)
Relative Humidity 15 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR, RoHS
Dimensions (Width x Depth x Height) 460 x 430 x 315 mm (18.1 x 16.9 x 12.4 in.)
Weight 23 kg (50.7 lb)
Supported Operating Systems: Windows 11, Windows 10, Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016
Software/Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection
Included Items: AC cable, AC adapter, USB 3.0 cable, Setup DVD-ROM
