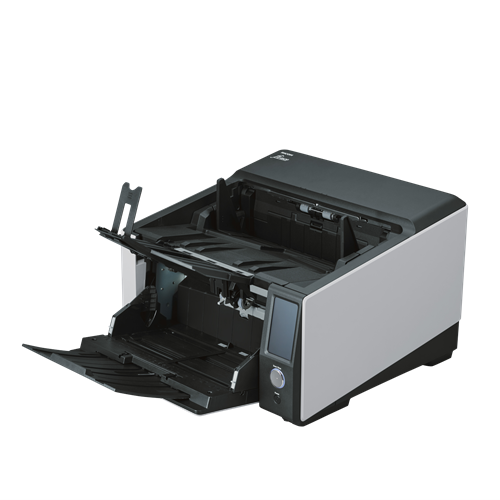

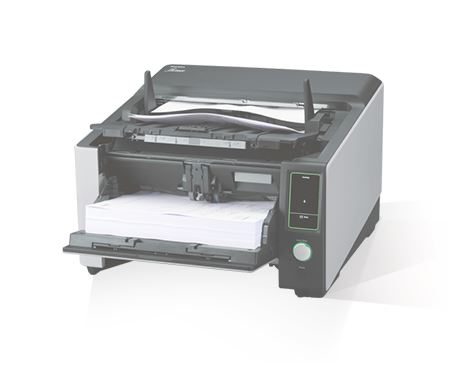

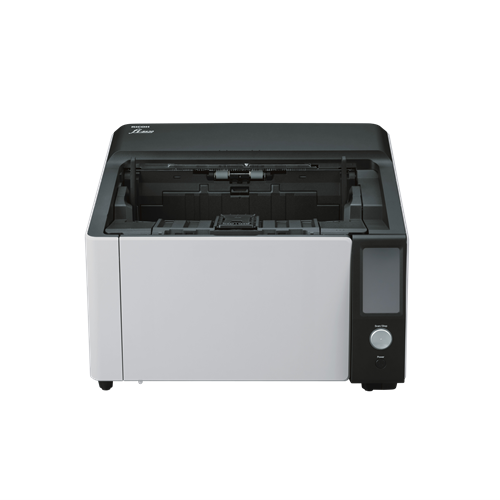

The fi-8820 is an A3 document scanner highly optimized for heavy-duty scanning. The scanner comes with features that help with reliable scanning, such as Stapled Documents Detection. As an ideal model for scanning a large volume daily, the scanner offers speeds of 120 ppm/240 ipm (200/300 dpi, color, A4 landscape), loads up to 500 sheets at a time, and is capable of scanning up to as many as 100,000 sheets a day.
Scan a wide variety of documents with just a switch to the Manual Feed Mode and the Straight Scan
Scanner Central Admin Desktop enables central management of scanners without a server
Comes with PaperStream IP and PaperStream Capture, providing advanced image processing functions, with PaperStream Capture Pro software as a premium option
Specifications
Scanner Type ADF (Automatic Document Feeder)/Manual Feed, Duplex
Scanning Speed (A4 Landscape) Simplex: 120 ppm (200/300 dpi)
(Color/Grayscale/Monochrome) Duplex: 240 ipm (200/300 dpi)
Scanning Speed (A4 Portrait) Simplex: 95 ppm (200/300 dpi)
(Color/Grayscale/Monochrome) Duplex: 190 ipm (200/300 dpi)
Image Sensor Type CIS x 2 (front x 1, back x 1)
Light Source RGB LED x 4 (front x 2, back x 2)
Optical Resolution 600 dpi
Output Resolution (Color/Grayscale/Monochrome) 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors White/Black (selectable)
Document Size
Maximum 304.8 x 431.8 mm (12 x 17 in.)
Minimum 48 x 70 mm (1.9 x 2.8 in.)
Long Page Scanning 6,096 mm (240 in.) (up to 200 dpi)
Paper Weight (Thickness)
Straight Scan Larger than A5 and up to A4 Size 20 to 570 g/m² (5.3 to 152 lb)
A5 or Smaller and Over A4 Size 40 to 570 g/m² (11 to 152 lb)
Envelope 1.25 mm or less
U-turn Scan Larger than A5
and up to A4 Size 20 to 209 g/m² (5.3 to 56 lb)
A5 or Smaller Size 64 to 209 g/m² (17 to 56 lb)
Over A4 Size 64 to 256 g/m2 (17 to 68 lb)*7
ADF Capacity 500 sheets (A4 80 g/m² or Letter 20 lb)
Total thickness: less than 80 mm
500 sheets (A3 80 g/m² or Letter 20 lb)
Total thickness: less than 53 mm
Expected Daily Volume 100,000 sheets
Multifeed Detection Overlap detection (Ultrasonic sensor), Length detection
Paper Protection Stapled Documents Detection, Lag Detection
Interface USB USB 3.2 Gen1/USB 3.0/USB2.0/USB1.1
Ethernet 10BASE-T/100BASE-TX/1000BASE-T
Power Requirements AC 100 to 240 V ±10%
Power Consumption Operating Mode 70 W or less/40 W or less (Eco mode)
Sleep Mode 2.5 W or less
Auto Standby (Off) Mode 0.2 W or less
Operating Environment Temperature 5 to 35°C (41 to 95°F)
Relative Humidity 15 to 80% (Non-condensing)
Environmental Compliance ENERGY STAR®, RoHS
Dimensions (Width x Depth x Height) 460 x 430 x 315 mm (18.1 x 16.9 x 12.4 in.)
Weight 23 kg (50.7 lb)
Supported Operating System Windows® 11*11, Windows® 10*11, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016
Software/Drivers PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*12, PaperStream Capture, PaperStream ClickScan*13, Software Operation Panel, Error Recovery Guide, Scanner Central Admin Server, Scanner Central Admin Desktop
Image Processing Functions Multi image output, Automatic color detection, Blank page detection, Static threshold, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Cropping, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Character extraction, Background pattern removal, Automatic profile selection
Included Items AC cable, AC adapter, USB 3.0 cable, Setup DVD-ROM
