Product Description
Powerful and flexible scanner with built-in Wi-Fi

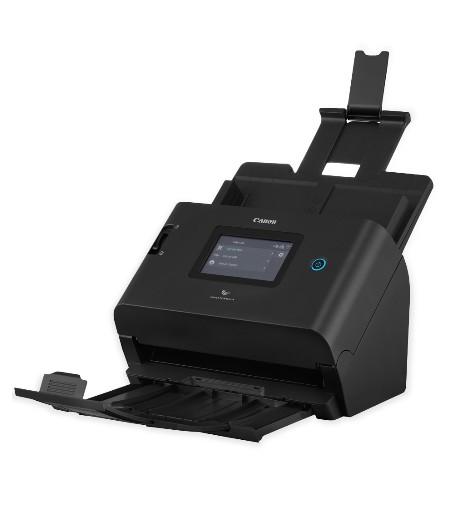

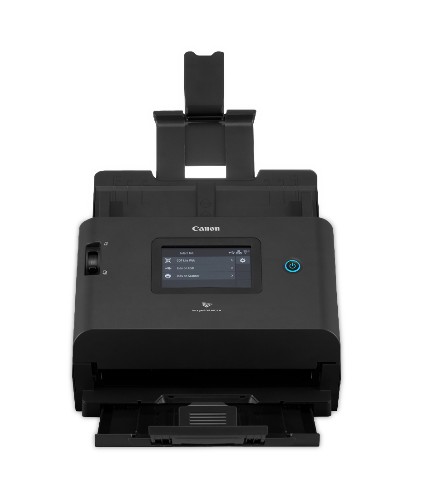

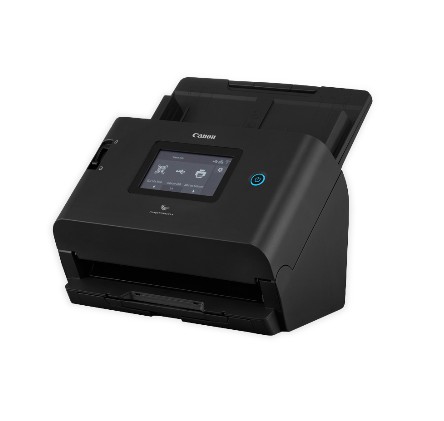

The Canon imageFORMULA DR-S350NW is a powerful, flexible office document scanner. It is designed to optimise the document workflow of businesses across various industries. With easy-to-use technology and fast, high-quality scanning, the DR-S350NW delivers on productivity and efficiency.
Fast and efficient
Specifically, the Canon imageFORMULA DR-S350NW is built for speed, delivering up to 50 pages per minute. It can also scan up to 100 images per minute in duplex mode, supporting colour, greyscale, and black-and-white formats. Its 60-sheet Automatic Document Feeder is suitable for processing large document batches while minimising downtime.
Easy to use

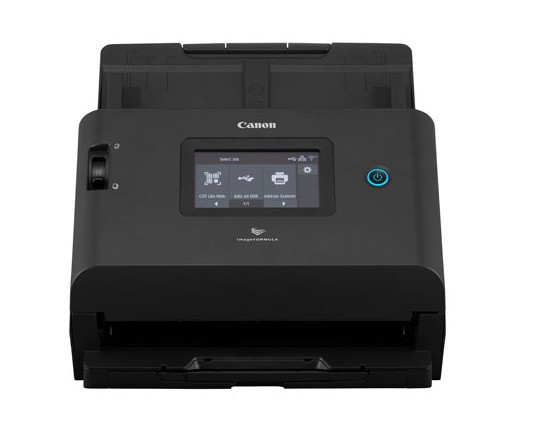

The DR-S350NW office document scanner is easy to use. Featuring a 4.3-inch colour touch panel, it allows you effortlessly configure scan settings, initiate scan jobs, and preview scanned documents - on the device - no computer needed.
Product Specifications
Type: Desktop-type double-sided capturing sheet-fed scanner
Scanning Sensor Unit CIS
Optical Resolution 600dpi
Light Source RGB LED
Scanning Side Front / Back / Duplex
Interface USB: USB3.2 Gen1,
Ethernet:10Base-T/100Base-TX/1000Base-T
Wi-Fi: 802.11 b, g, n (2.4GHz) / 802.11 a, ac (5GHz)1
USB host USB2.0 Type A (Only for NFC reader)
Dimensions (WxDxH) Tray closed: 291*267*242 mm
Weight Approx. 3.4kg
Power Requirements 220 - 240V (50/60Hz)
Power Consumption
Scanning : 28W or less
In sleep mode: 2.0W
Power off: 0.3W or less
Operating Environment 10°C to 32.5°C Humidity: 20% to 80% RH
Environmental Compliance Product: EPEAT Gold2, Energy STAR3, RoHS
Manufacturer: ISO 9001, ISO 14001, ISO 45001, ISO 13485, ESG
Certification (SGS)
Scanning Specifications
Black and White 50 ppm / 100 ipm
Colour 50ppm / 100ipm
Output Resolution 100/150/200/3240/300/400/600dpi
Output Mode Colour, Grayscale, Black & White
Suggested Daily Volume from 6,000 to 9,000 scans/day
Document Specifications
Width 50.8 - 216 mm
Length 54 - 356 mm
Thickness 27 g/m2 - 255g/m2 (0.04 - 0.3mm)
Pressure-Sensitive Paper Feeding only from the binding side.
Hole-Punched Paper Up to 8mm, 2/3/4 holes, paper only.
Long Document Mode Up to 5,588mm
Business Card Scanning W:50-55mm L:85-91mm Thickness:128~255g/㎡(0.15-0.3mm)Horizontal feeding only
Plastic Card Scanning W:86mm L:54mm Thickness:1.4mm or less
Embossed card available. Loading number:3 cards(non-embossed)
1 card(embossed/non separation)
Passport Scanning Thickness: 4.0mm or less - 300 dpi or less.
Need an optional carrier sheet for the passport and passport mode setting.
Paper Separation Retard Roller Method
Feeder Capacity A4: 60 sheets
Larger than A4: 40 sheets
Special Features
Special Features Web scan (without driver)
Web browser scanning with any device on the same network by embedded CaptureOnTouch Lite Web (Supports QR code connection, OCR recognition, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection, Password protection)
Direct scan (without driver)
Direct job scanning from panel for standalone operation. (Scanto Share folder, FTP/FTPS/SFTP/, Mail, Printer. Supports OCR recognition, Image Preview, Ultrasonic Double Feed Detection, Passport mode, Skip Blank Page, Auto Page Size Detection)
Settings (with driver)
Ultrasonic Double Feed Detection, Auto Colour Detection, Skip Blank Page, Auto Page Size Detection, Auto Resolution Setting, Text Orientation, Recognition, Barcode/2D Code Recognition, OCR Recognition, Batch separation, Active Threshold, Text Enhancement (I/II), Deskew, Double Feed Release, Prescan, 3-Dimensional, Colour Correction, Prevent Bleed-Through/ Remove Background, Background Smoothing, Character Emphasis, Colour Dropout/Enhance (RGB), , MultiStream Function, Adjustable Gamma Settings, Moire Reduction, Folio Mode, Reduction ratio adjustment, B&W Contrast, Reverse Image, Rapid Recovery System.
Bundled Software
Windows ISIS, TWAIN and WIA Driver / CaptureOnTouch Pro / Canon imageFORMULA Driver Setting Tool / IEEE 802.1X Setting Tool / DR-Management Tool (by download only)/ CoT Admin Tool (by download only)
Supported Operating Systems: CaptureOnTouch Lite Web (device embedded web app) supports use with web browsers from various operating systems. Mopria® certified for use with Android and Chrome OS.
Other Options
Consumables Exchange Roller Kit
Accessories Flatbed Scanner Unit 102
Flatbed Scanner Unit 202
A4 Carrier Sheet
Passport Carrier Sheet
