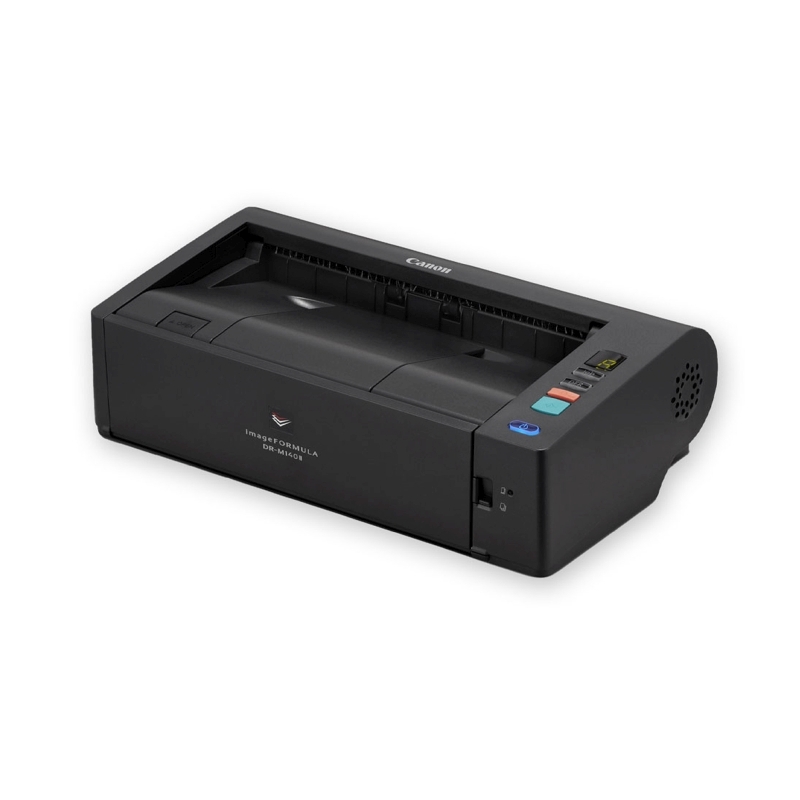

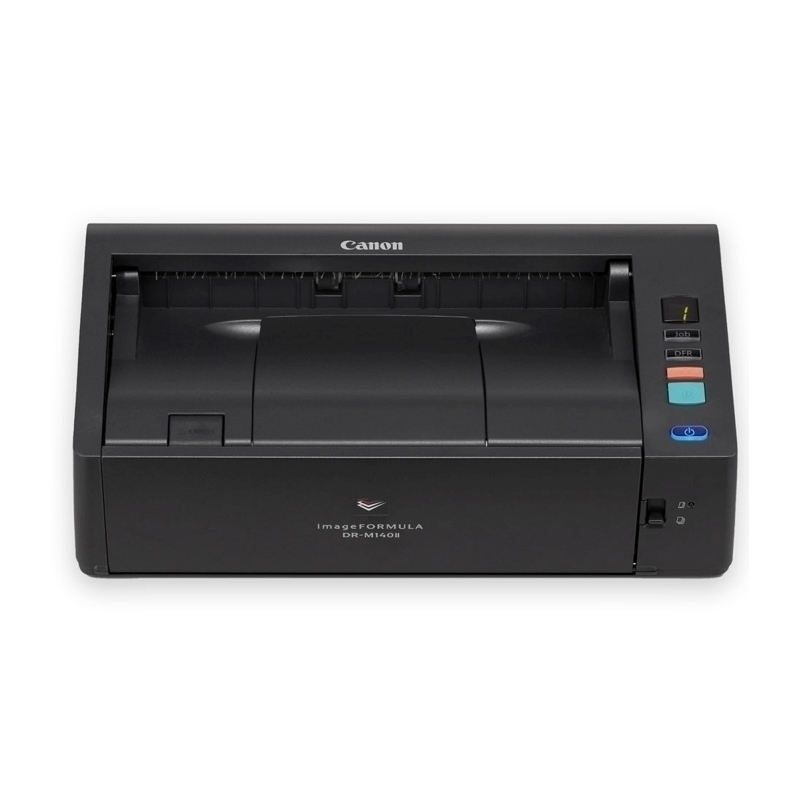

Canon imageFORMULA DR-M140II A4 Document Scanner

This user friendly scanner comes at an affordable price, yet it’s loaded with several features to reduce admin. This includes the ability to automatically achieve clear, crisp scans for sharing and storing. The compact DR-M140 II scans different document sizes and weights at the same time with outstanding quality and without damaging the originals. Colour documents are scanned at speeds of up to 80ipm. Fully supported by Canon, it is designed for in-house maintenance with easy accessibility for replacing consumables.

You can scan plain plastic cards and embossed cards* (e.g., credit cards) alike. You can even scan mixed document batches that contain both cards and paper documents. *Up to three plain cards can be scanned at one time. Embossed cards must be scanned one at a time.

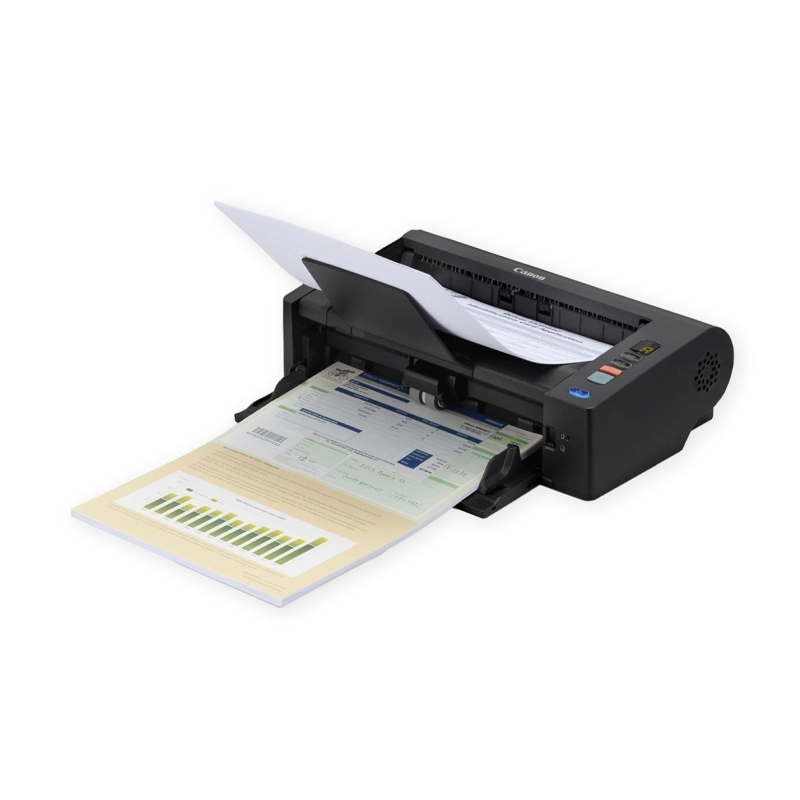

Thanks to the U-Turn path, you can feed and eject documents from the front of the scanner. Use the straight path to scan cards, thick documents or fragile documents without bending them.

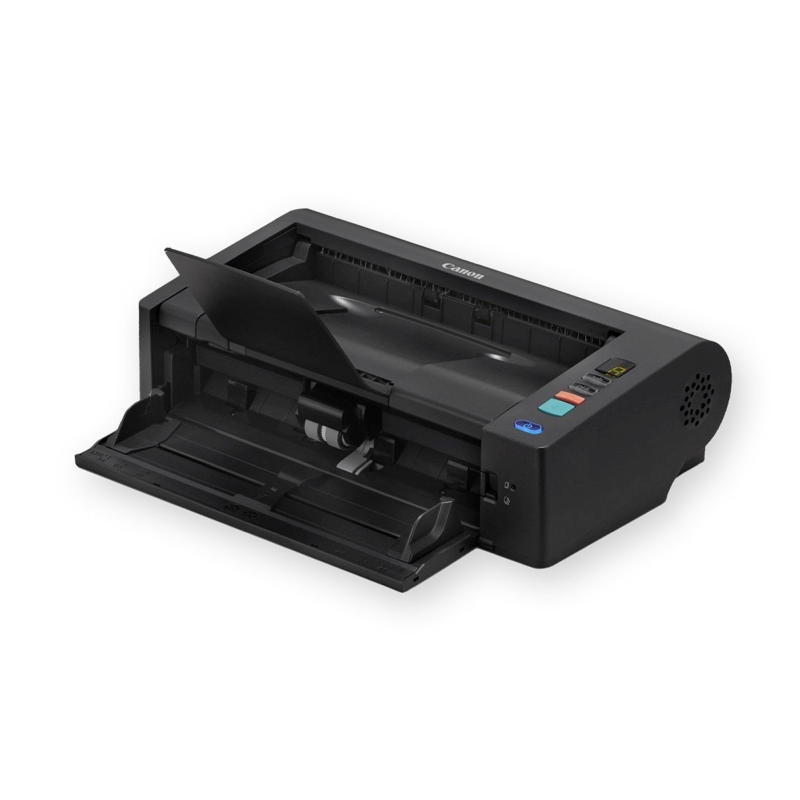

Everything can be accessed from the front of the scanner through the wide opening panels. Consumables such as the feed roller and retard roller are easy to replace.

The imageFORMULA DR-M140 II's slim design is unintrusive, fitting into narrow spaces and counter tops. You can also store it in a drawer when not in use.

The Automatic Colour Detection feature automatically identifies whether a document should be saved in colour, greyscale or B&W, so you no longer have to separate documents by type.

The clever separation mechanism allows you to scan different document sizes and weights at the same time, while the Ultrasonic Double Feed Detection sorts out misfeeds.

Type Desktop sheet-fed scanner

Document Size Width: 50.8mm to 55mm

Length: 85mm to 91mm

Scanning Document Thickness Plain paper:

• U-turn path: 27 to 128 g/m2 (0.04 mm to 0.15 mm)

• Straight path: 27 to 255 g/m2 (0.04mm to 0.3 mm)

Business card: 380 g/m2 (0.45 mm or smaller)

(Use the straight path and place vertically)

Plastic card: 0.76 mm or less, 1.4 mm or less for the embossment.

(Use the straight path and place vertically)

Feeding Capacity 80 sheets

Total thickness: 10 mm or less

Scanning Sensor Contact image sensor

Light Source LED

Scanning Side Simplex / duplex

Scanning Modes Black and White, Error Diffusion, 256-level Greyscale, Active Threshold,

Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour

Scanning Resolution Optical Resolution: Maximum 600dpi

Scanning output resolution: 100dpi / 150dpi / 200dpi / 240dpi / 300dpi / 400dpi / 600dpi / 1200dpi

(Primary scan lines x secondary scan lines)

Scanning Speed Greyscale/B&W: 200dpi: 40 pages/min. (Simplex), 80 images/min. (Duplex)

300dpi: 40 pages/min. (Simplex), 80 images/min. (Duplex)

Colour: 200dpi: 40 pages/min. (Simplex), 80 images/min. (Duplex)

300dpi: 40 pages/min. (Simplex), 80 images/min. (Duplex)

Interface Hi-Speed USB 2.0

Other Functions Folio scanning, Double feed Release

External Dimensions (with trays closed) 313 mm x 181 mm x 93 mm (WxDxH)

Weight (without AC adapter) Approximately 2.6 kg

Power Requirements AC100 to 240 V (50/60Hz)

Power Consumption Scanning: Maximum 24.5 W

In the sleep mode: Maximum 1.6 W

With power switch OFF: Maximum 0.1 W

Operating Environment Temperature: 10°C to 32.5°C

Humidity: 20% to 80% RH

Consumables Exchange Roller Kit

Optional accessories: Flatbed unit

A flatbed scanner unit can be connected to and used with the DR-M140 II scanner. The flatbed unit allows you to scan bound documents such as passports that are not supported on standard automatic document feeders, expanding possible applications

Scanner Main Unit

USB Cable

AC Adapter

Power Cable

Setup Guide

Warranty Card

User Manual
