Product Description
High-Functionality and Compact Desktop Document Scanner

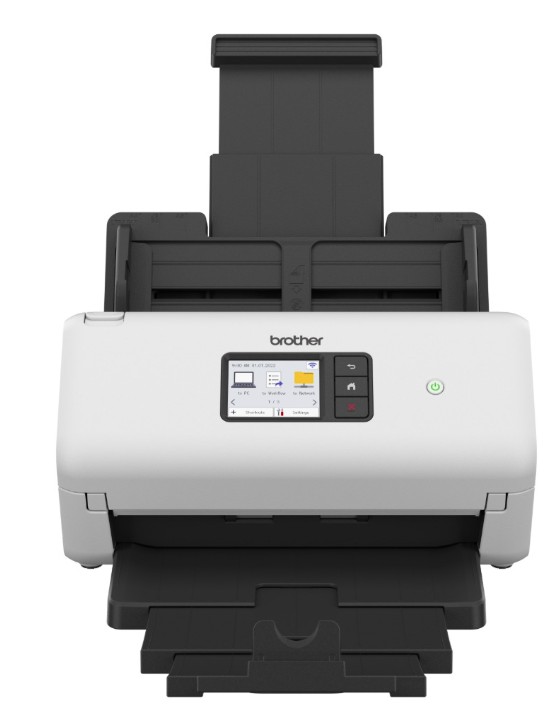

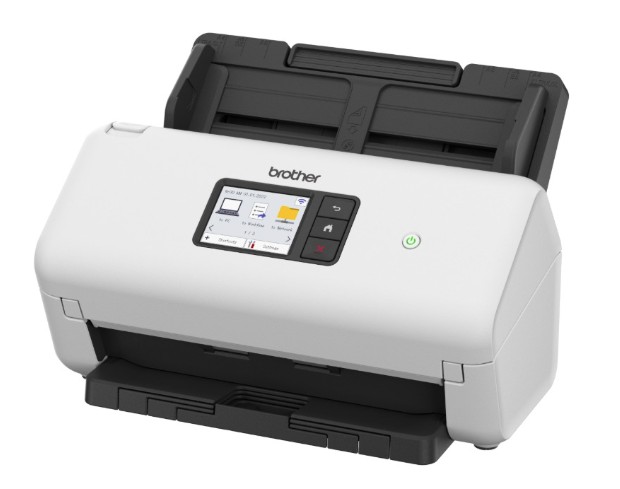

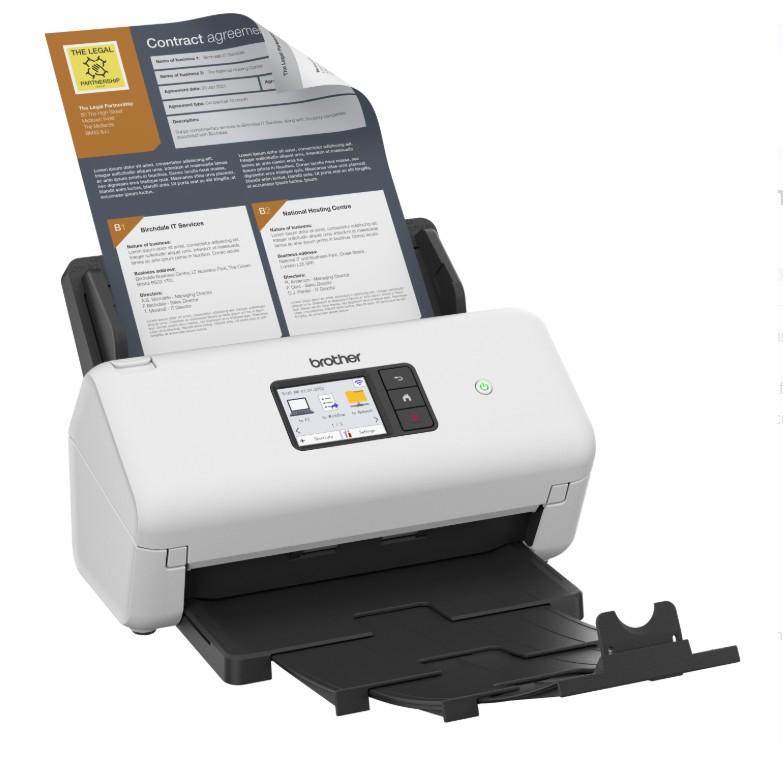

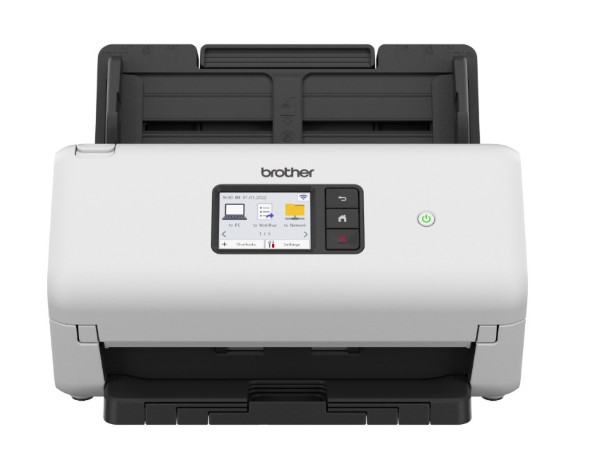

The ADS-3350W desktop document scanner combines high-functionality with a simple, intuitive design in a compact footprint - the perfect addition to your home or small office.
Fast and reliable
The ADS-3350W combines high-functionality with a simple, intuitive design in a compact footprint. It has a large 60-sheet ADF and can scan 2-sided (duplex) 40ppm (80ipm)
Simple and intuitive
With a user-friendly interface and intuitive 7.1cm touchscreen, you can automate your scanning with one-touch shortcuts to streamline work processes
Convenient connectivity options
Connect your way with convenient options available, including USB 3.0, USB host and Wi-Fi
Basic Specs
Scanning Speed 40 ppm
Document Size - Multiple Sheets - Width 50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length 50.8 mm to 355.6 mm
Document Size - Single Sheet - Width 50.8 mm to 215.9 mm
Colour / Monochrome Yes / Yes
2-Sided (Duplex) Scan Yes
Colour Depth - Input 48-bit colour processing
Colour Depth - Output 24-bit colour processing
Resolution - Optical Up to 600 dpi × 600 dpi
Resolution - Interpolated Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length Up to 215.9 mm
Product Dimensions (Width X Depth X Height) 300 mm × 216 mm × 191 mm
Weight 2.7 kg
ADF (Automatic Document Feeder) Up to 60 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
Memory Capacity 512 MB
Warranty 1 year Return to Base Warranty
What's in The Box Scanner, Quick Setup Guide, User's Guide, Network Guide, CD-ROM's, ADF Document Output Support, AC Adaptor, USB Cable
Connectivity
Connectivity Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct), Super Speed USB 3.0, IEEE 802.11 g (Wi-Fi Direct)
Network
Wireless Network Security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Setup Support Utility
WPS WLAN Assistant
Display Type
Touchscreen LCD 2.8 in. (71.1mm) TFT colour LCD screen
Operation
Power Source AC: 100-240 V, 50/60 Hz
Power Consumption - Scanning Approx. 25W
Power Consumption - Ready Approx. 7.3W
Power Consumption - Power Saving / Deep Sleep Approx. 1.7W
Power Consumption - Power OFF Approx. 0.1W
Temperature Operating 5°C to 35°C
Humidity - Operating 20% to 80%
Humidity - Storage 10% to 90%
Compliance
TWAIN Compliant - Windows® Windows Server 2016 / Windows Server 2019 / Windows Server 2022
TWAIN Compliant - Macintosh macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows® Windows 10 / Windows 11
ICA Compliant - Macintosh macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows® Windows 10 / Windows 11
What's in the box?
Brother ADS-3350W
Quick Setup Guide
User's Guide
Network Guide
CD-ROM's
ADF Document Output Support
AC Adaptor
USB Cable
Product Specifications
Up to Scan Speed 40ppm
Up to Resolution 600 x 600 dpi
60 Sheets ADF Capacity
7.1cm TFT Colour LCD Screen
120K Sheets Monthly Volume
USB, Network & Wireless
One-Year Return to Base Warranty
