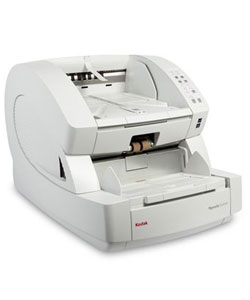

Kodak NGenuity 9090DC A3 Document Scanner

Brief Overview

Colour and bitonal Scanner, 90ppm at 200dpi and 70ppm at 300dpi, Duplex production Scanner for up to 90,000 pages per day

Product Description

Scanning Speed Letter Size Landscape at 200 dpi    Simplex/Duplex
9150 150 ppm/300 ipm
9125 125 ppm/250 ipm
9090 90 ppm/180 ipm
Black-and-White, Color, Grayscale Simplex/Duplex Portrait at 200 dpi    Simplex/Duplex
9150 120 ppm/240 ipm
9125 100 ppm/200 ipm
9090DB (color not available)    70 ppm/140 ipm
9090DC    70 ppm/140 ipm
Daily Duty Cycle
9150 150,000 pages per day
9125 125,000 pages per day
9090 90,000 pages per day
Roller Life (Bond Paper)    600,000
Resolution    Output: 600 dpi, Optical: 600 dpi
Camera Technology SharpShooter Trilinear 7.6k CCD
Lighting Technology White LEDs - Instant warm-up; designed to last the life of the scanner with normal use
Image Enhancement Onboard VRS Professional
Interface USB 2.0, USB 3.0 compatible; SCSI III
Supported Drivers (Included)    ImageControls, ISIS and TWAIN through VRS Professional; direct ISIS, TWAIN
Multifeed Detection Ultrasonic Multifeed featuring: Three sensors, Preemptive Ignore, Ignore As Is, Ignore by Size
Imprinting Optional user-installable pre- and/or post-scan imprinter, time and date stamping, 72 characters
Document Size    43 x 64 mm (1.7 x 2.5 in.) to 318 x 1016 mm (12.5 x 40 in.)
Document Size - Long Document Mode    Up to 200 m (219 yards)
Maximum Image Width    311 mm (12.25 in.)
Paper Thickness-Rotary    0.038–0.89 mm (.0015–.035 in.)
Paper Thickness-
Straight-Through
Paper Path 0.038–1.78 mm (.0015–.070 in.)
Paper Weight 30–1,200 gsm (7 to 320 lb. bond)
Feeder Capacity (80 gsm paper/20 lb. bond)    700 documents - Variable Feeder Tray Capacity Control
Scanner Size (HxWxD)**    49.5 x 52.1 x 76.2 cm (19.5 x 20.5 x 30 in.)
Scanner Weight    50.8 kg (112 lb.)
Power Requirement AC 100 - 120 V; 220 - 240 V; 50/60 Hz
Power Consumption
Maximum (Scanning) 175 W
Minimum (Standby) 60 W
Sleep    6.7 W
Environment
Temperature    10°C to 38°C (50°F to 100°F)
Relative Humidity 10% to 80%
Additional Features Straight Pass Through Paper Path, Straight-Through Paper Path Tray Adapter, Special Documents Mode, Advanced Color Functionality
Additional Contents USB Cable, Installation Resource CD with Kodak Ngenuity Operator Utility (NOU) and the VRS Professional, Power Cord, Starter Cleaning Kit, Camera Calibration Kit
Additional Options User-installable Pre- and/or Post-scan Imprinter with Time and Date Stamping, Roller Kit, Cleaning Kit, Power Conditioner, Supported by Kodak Capture Pro Software

What's in the box?

USB Cable, Installation Resource CD with Kodak Ngenuity Operator Utility (NOU) and the VRS Professional, Power Cord, Starter Cleaning Kit, Camera Calibration Kit
