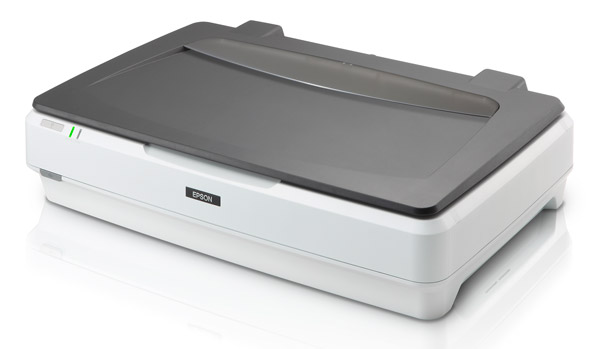

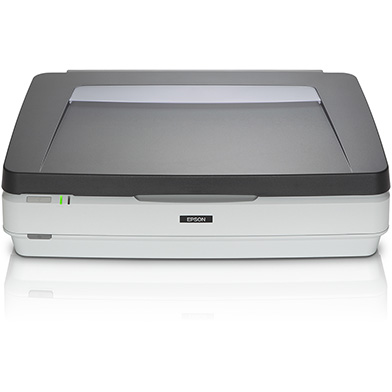

Epson Expression 12000XL A3 Scanner

Brief Overview

Readyscan LED Technology, 2400dpi, 6 Line alternated colour CCD, USB 2.0 High-Speed

Product Description

The Expression 12000XL is a high-resolution A3 scanner designed to meet the most demanding graphic arts applications.

Featuring Epson Scan advanced imaging features, an LED light source, and exceptional SilverFast Ai 8.8 image processing functions, this scanner offers excellent image reproduction.

SCANNER TYPE Flatbed A3 colour image scanner
PRODUCT NAME Expression 12000XL
PRODUCT CODE B11B240501
SUB-SCANNING METHOD Movement of the carriage
Photo ELECTRIC DEVICE 6 line alternated colour CCD (94,500 pixels)
DOCUMENT SIZE
SCANNING PLATEN 310 x 437mm
TRANSPARENCY UNIT 309 x 420mm (optional Extra)
LIGHT SOURCE Readyscan LED Technology
OPTICAL RESOLUTION
Main: 2,400dpi (optical resolution by 6 line CCD with 87,840 pixels) Sub: 4,800dpi with Micro Step
OPTICAL DENSITY 3.8 D Max
OUTPUT RESOLUTION
50dpi to 12,800dpi (in 1 dpi steps)
ZOOM 50% to 200% (in 1% steps)
PIXEL DEPTH 48 bit internal
24 bit external
SCANNING SPEED
Monochrome : 12 s/page – Colour : 12 s/page (Measured with size A4, resolution: 300dpi)
SUPPORTED PLATFORMS
USB2.0 (Type B) Mac OS 10.10.x, Mac OS 10.11, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows XP, Windows server 2003 R2
INTERFACES
USB 2.0 High-Speed (standard)
ENVIRONMENTAL CONDITIONS
TEMPERATURE 5°C to 35°C (operating)
-25°C to 60°C (storage)
HUMIDITY 10% to 80% without condensation (operating)
10% to 85% without condensation (storage)
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC100-120V

BUNDLED SOFTWARE
Epson Scan 2, SilverFast Ai ver.8.8

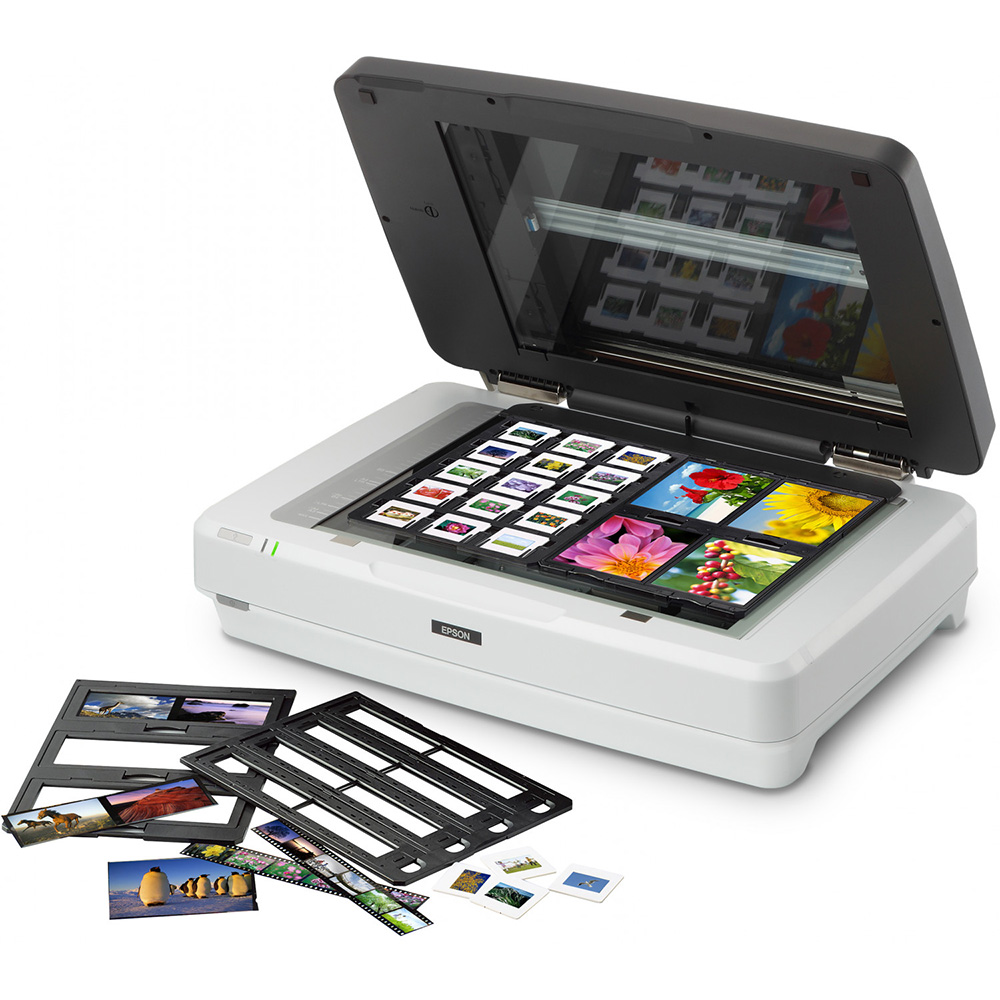

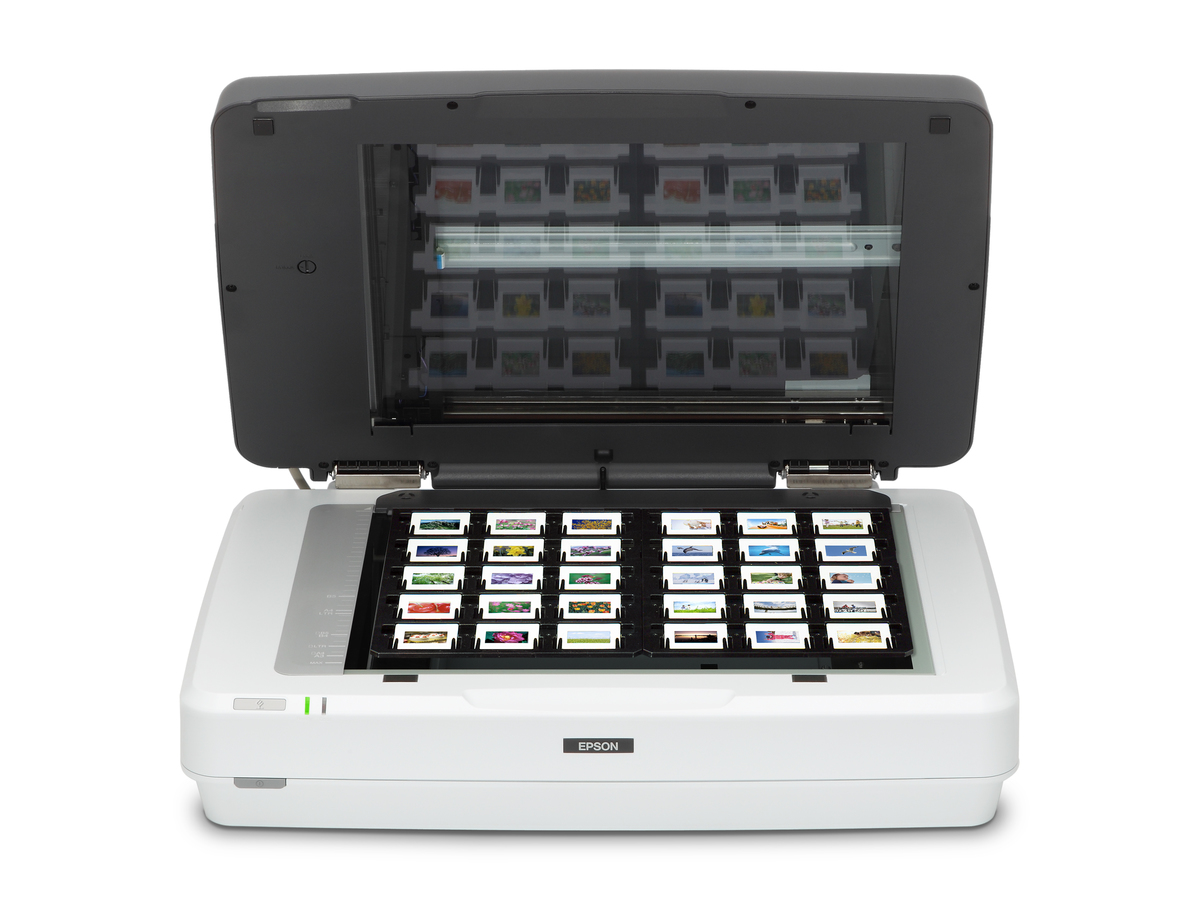

A3 TRANSPARENCY UNIT (optional extra)
RELIABILITY: 100,000 cycles for the MCBF
DOCUMENT: 35mm strip film
35mm slide
Medium format (120 / 220)
6 x 18cm strip film
4 x 5 inch film
Films up to 12.2 x 16.5 inch
READABLE AREA: 309 x 420mm
DIMENSIONS: Width: 656mm
Depth: 458mm
Height: 158mm
Weight: Approx. 14.3kg
Product Options
PRODUCT CODE DESCRIPTION
B12B819221 A3 Transparency Unit
A3 TRANSPARENCY UNIT
RELIABILITY 100,000 cycles for the MCBF
DOCUMENT 35mm strip film
35mm slide
Medium format (120/220) 6 x 18cm stip film
4 x 5 inch film
Films up to 12.2. x 16.5 inch
WARRANTY
12 MONTHS RETURN TO BASE
OPTIONAL ADDITIONAL 2 YEAR WARRANTY  3YWE12000XL

What's in the box?

Epson Expression 12000XL photo flatbed scanner;  ,LaserSoft Imaging SilverFast Ai and IT8 targets;  Hi-Speed USB cable; Power cable; Start Here poster
