Brief Overview

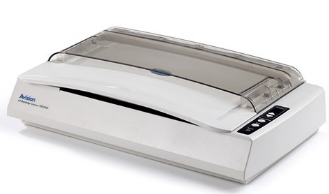

AVISION FB2280E BOOKEDGE SCANNER (A4, FLATBED)
Product Description
Leading Edge in Book Scanning
Avision’s book edge scanners feature a unique, innovative flatbed
platform, with a slanted front edge engineered to accommodate books in a
way that prevents the dark, shadowy area near the spine from appearing.
Curved text often seen near the center is also eliminated, since this
special design allows pages to spread flat on the scanner. Never again
would you need to press the book against the scanner, which distorts the
scanned image and potentially damages the book. Avision makes book
scanning a breeze!
The Avision FB2280E is designed from the ground up to excel at scanning
books. Packed with CCD sensors and a 600 dpi optical resolution, it can
produce high quality A4 scans in 4 seconds at 200 dpi in black and
white.
Another unique feature of the FB2280E is the document cover. With this
cover, you can temporarily place your documents safely on the scanner,
reducing the risk of misplacing them during scanning.
An optional ADF add-on is available for the FB2280E, with a 50 sheet capacity and a maximum document size of 21.6 x 36.5cm.
General Specification
Technology Color Charged-Coupled Device (CCD)
Light Source LED (Light Emitting Diode)
Document feeding mode Flatbed, ADF (optional)
Optical Resolution (dpi) 600
Output Resolution (dpi) 1200
File Formats BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF,
Multi-TIFF, TIFF, RTF, TXT, OCR(for iScan only), XPS,
DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16bits input 8bits output
Color mode 48bits input 24bits output
Dimensions (WxDxH) 480 x 288 x 115 mm (25.3 x 11.3 x 4.5 in)
Weight 6.5 kg ( 14.3 lb )
Interface USB 2.0
Power Consumption Operation: < 30 W
Stanby: < 10 W
Power saving: < 5 W
Recommended Daily Volume Up to 2,500 pages
OS Support Windows XP/Vista/Win 7
Bundled Software Twain Driver, ISIS Driver, AVScan, Avision Button Manager, PaperPort
Scan Size
ADF Minimum 114 x 139 mm ( 4.5 x 5.5 in ) (Option ADF)
ADF Maximum 216 x 356 mm (Legal) ( 8.5 x 14 in ) (Option ADF)
ADF Capacity 50 sheets (Option ADF)
Paper Weight (Thickness ) 49~ 120 g/m² ( 13 to 32 lb ) (Option ADF)
Scanning Speed
B/W @ 200dpi, A4 4 sec. / 5.5 sec. (Include Backhome)
B/W @ 300dpi, A4 4 sec. / 5.5 sec. (Include Backhome)
Color @ 200dpi, A4 4 sec. / 5.5 sec. (Include Backhome)
Color @ 300dpi, A4 4 sec. / 5.5 sec. (Include Backhome)
What's in the box?
FB2280E Scanner
Power Supply
USB 2.0 Cable
CD-ROM
Product Specifications
Up to Scan Speed 5.5/Sec.
Up to Optical Res 600 dpi
LED Light Source
2.5K Pages Daily Volume
Color Charged-Coupled Device
USB 2.0 Interface
One Year Return to Base Warranty
Brochure for Avision FB2280E A4 Bookedge Flatbed Scanner
