Brief Overview

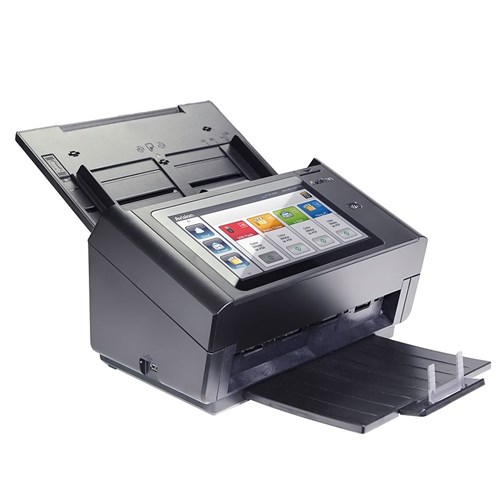

AVISION AN360W TRUE NETWORK SCANNER (A4, DUPLEX)
Product Description
AN360W series A Fast, Affordable, Network Scanner
The AN360W is a 60 page-per-minute, duplex, and network scanner that is
fast, reliable, and affordable for business where scanning plastic ID
cards, business cards, documents or other heavy card stock is necessary.
With simply one button, the AN360W series improves your business
efficiency by scanning and sending the document to various destinations
including e-mail, cloud servers, a shared folder (CIFS), a FTP server,
and a USB flash drive. Plus, with the wireless networking capability,
the AN360W series offers mobile scanning through Avision’s App.
Product Details
Easy-to-operate 8” LCD Touch Screen
The large 8” LCD touch screen makes it easy for everyone to scan and
share. By assigning your frequently used settings and scan to
destinations as Shortcuts, the AN360W series allows you to streamline
your workflow and complete your scanning task in one step. Configuration
and management of the scanner can also be performed via the LCD touch
screen.
Convenient mobile scanning
Built-in with a Wi-Fi dongle, the AN360W series can work as a wireless
device to scan and receive images directly from your mobile devices
through Avision’s App.
Support form document up to 242 x 356 mm (9.5 x 14 in.)
The AN360W series boasts a unique and innovative design in comparison
with its predecessors - the ability to accommodate form document up to
242 x 356 mm(9.5 x 14 in.). The extended document width from standard
216 mm (8.5 in.) to242 mm (9.5 in.) makes the AN360W series more
competitive to fit for a wider range of documents.
Convenient walk-up scanning
A USB direct interface is available for scanning files to your USB flash memory drive.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing
technology, mixed batches of documents with varies sizes and weights can
be scanned, appropriately cropped, deskewed, and ready to use. Scan
size accepts paper from receipts (50 x 50 mm/2” x 2”) to business
document (242 x 356 mm/9.5 x14 in.). The auto document feeder is also
robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard
cards such as ID cards, credit cards, driver’s license, and health
insurance card up to 1.25mm in thickness.
Reverse Roller Enhances Feeding Reliability
Designed with the innovative reverse roller for advanced paper
separation capability, the AN360W series delivers outstanding feeding
reliability and operating productivity by effectively reducing the risk
of a multi-feed or paper jam.
Ultrasonic Multi-Feed Detection
With the ultrasonic multi-feed detection capability, the scanner allows
you to set overlapped paper by detecting paper thickness between
documents. The ultrasonic function can be turned off when scanning
document with labels, sticky notes, or taped receipts. This innovative
design prevents double feeding and effectively scans documents of
different weights or thickness.
A Compact Design to Save Your Space
With a stylish design and a compact footprint of 12.4 x 8.1 x 7 in. (316
x 207 x178 mm) (W x D x H), the AN360W series can be fit perfectly on a
desk in any working environment.
Powerful Bundled Software Applications
The AN360W series come with TWAIN driver, and are bundled with a suite
of powerful software applications that include Avision Button Manager,
AVScan and PaperPort. With Button Manager, you can create searchable
PDFs, scan and send images to e-mail, printer, or clouds servers such as
Google DriveTM, FaceBook, or Evernote® with just a simple press of a
button. The AVScan and PaperPort are highly effective image processing
and document management software that helps you streamline your task
more efficiently.
Features:
Fast, 60ppm / 120ipm scanning in color, grayscale and monochrome (AN360W 300 dpi, color)
Scanning and sending images to e-mail, a shared folder (CIFS), a FTP
folder,cloud servers (Google Drive, Dropbox, Evernote), a USB flash
drive, and the product’s memory
Support form paper up to 242 x 356 mm (9.5 x 14 in.)
Offer preview feature to view your image result before distributing
Daily duty cycle up to 6,000 sheets
Robust 100-page automatic document feeder (75 g/m2, 20 lb)
Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
Reverse roller technology delivers outstanding feeding reliability
Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
Press and scan to cloud servers via the bundled software Button Manager
Earth-friendly LED technology
Long page scanning: 5540 mm (218”) (<300 dpi, duplex)/6000 mm (236”) (<200 dpi, duplex)
Auto power off setting
General Specification
Technology Contact Image Sensor ( CIS )
Light Source LED
Document feeding mode ADF
Optical Resolution (dpi) 600
File Formats BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF,
Multi-TIFF, TIFF, RTF, TXT, OCR( for iScan only ), XPS,
DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16-bit input 8-bit output
Color mode 48-bit input 24-bit output
Memory Size 512MB SDRAM
Dimensions (WxDxH) Maximum:316 x 675 x 254 mm (12.44 x 26.57 x 10 in.) Minimum:316 x 207 x 178 mm (12.44 x 8.15 x 7.01 in.)
Weight 4.2 kg (9.26 lb.)
Interface USB3.2 Gen1x1
Network connection RJ-45 Ethernet 10/100/1000 Mb, Wi-Fi
Wi-Fi standard IEEE 802.1b/g/n
Power Consumption Operation< 36 W
Ready< 12W
Sleep< 2.1W
Off< 0.12W
Acoustical Noise Operation< 55dB
Ready< 45dB
Recommended Daily Volume Up to 6,000 pages
OS Support Win XP / Vista / Win 7 / Win 8 / Win 10
Bundled Software Button Manager , PaperPort , AVScan
Features
Ultrasonic paper jam detection Yes
Long Paper Mode Up to 200 dpi Color Duplex 236 in. ( 6000 mm )
Up to 300 dpi Color Duplex 218 in. ( 5540 mm )
Up to 600 dpi Color Duplex 59 in. ( 1500 mm )
Card Scan Embossed card (Thickness 1.25mm)
Scan Size
ADF Minimum 50 x 50 mm ( 2 x 2 in)
ADF Maximum 216 x 356 mm (Legal) ( 8.5 x 14 in )
ADF Capacity 100 sheets
Paper Weight (Thickness ) 27g ~ 413 g/m² ( 7 to 110 lb. )
Scanning Speed
B/W @ 200dpi, A4 Simplex : 60 ppm
Duplex : 120 ipm
B/W @ 300dpi, A4 Simplex : 60 ppm
Duplex : 120 ipm
Color @ 200dpi, A4 Simplex : 60 ppm
Duplex : 120 ipm
Color @ 300dpi, A4 Simplex : 60 ppm
Duplex : 120 ipm
What's in the box?
AN360W Scanner
Power Supply
USB 3.1 Gen 1 Cable
Quick Guide
CD-ROM includes:
-Scanner Driver
(TWAIN Driver)
-Avision Button Manager V2
-Avision AVScan X
-Nuance PaperPort SE 14
Product Specifications
Up to Scan Speed 60ppm/120ipm
Up to Optical Resolution 600dpi
100 Sheet ADF Capacity
Ultrasonic Sensor
6K Sheets Daily Scan Volume
USB 3.1 Interface
One Year Return to Base Warranty
Brochure for Avision AN360W A4 Document Scanner
