Product Description

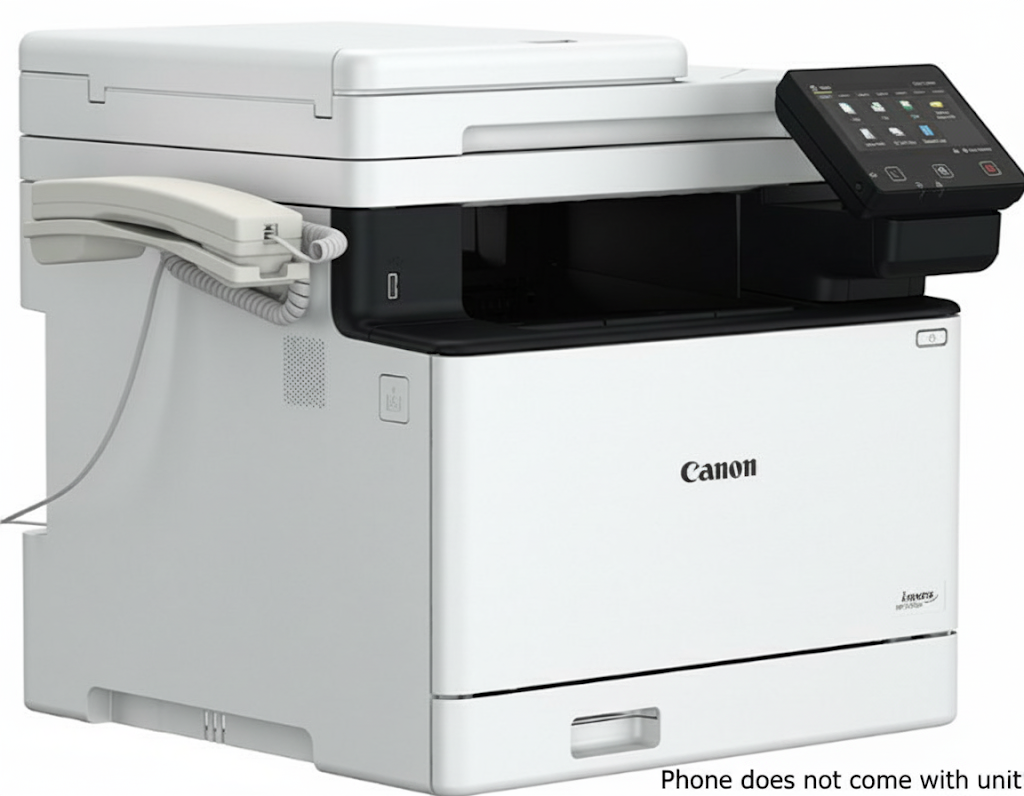

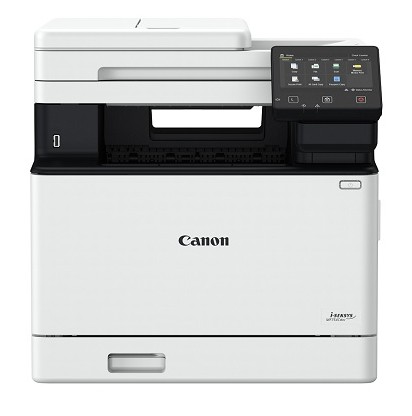

Canon i-SENSYS MF754Cdw A4 Multifunctional Laser Printer. This laser printer can do it all, from scanning and printing to copying and creating electronic documents for home or office use. The Canon MF754Cdw printer delivers fast, high-quality and dependable printing results, so you can rely on it to meet your daily printing needs.
Ultimate productivity
Work faster by printing and scanning at speeds of up to 33ppm and 100ipm* (A4), as well as utilising a wide range of media handling with the ability to scan small documents such as cheques and receipts.
Built-in cloud connectivity
Centralise print management with cloud-based Universal Print by Microsoft and access documents directly from cloud storage services: Google Drive, Dropbox and OneDrive.
Specifications:-
General Specifications
Machine Type Colour Laser All-In-One
Available Functions: Print, copy, scan, Fax
Print Specifications
Print Speed 33ppm
Printing Method: Colour laser beam printing
Print Resolution Up to 1200 x 1200 dpi
Warm-up Time Approx. 14 seconds or less from power on
First-Print-Out Time Colour approx.: 7.1 seconds or less, Mono approx.: 7.1 seconds or less
Printer Languages UFRII, PCL 5c, PCL6, Adobe® PostScript
Fonts: 45 PCL fonts, 136 PostScript fonts
Print Margins 5 mm-top, bottom, left and right, 10 mm-top, bottom, left and right (Envelope)
Toner Saver Mode Yes
Advanced Printing Features
Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive)3 (PDF/JPEG)
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
Copy Specifications
Copy Speed Single-sided (A4): Up to 33 ppm, Double-sided (A4): Up to 29 ipm
First-Copy-Out Time ADF (A4):
Colour Approx. 8.8 seconds or less
Mono Approx. 7.6 seconds or less
Platen (A4): Colour Approx. 9.4 seconds or less, Mono Approx. 8.3 seconds or less
Copy Resolution Up to 600 x 600 dpi
Copy Modes Text/Photo/Map (Default), Text/Photo/Map (quality), Printed Image, Text
Double-Sided Copying 2-sided to 2-sided (Automatic)
Multiple Copies Up to 999 copies
Reduction / Enlargement 25-400% in 1% increments
Other Features: Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy, Reserved copy
Scan Specifications
Standard Type Colour
Scan Resolution Optical: Up to 600 x 600 dpi Enhanced: Up to 9600 x 9600 dpi
Scan Speed Single-sided mono: 50ipm (300x300dpi)
Single-sided colour: 40ipm (300x300dpi)
Double-sided mono: 100ipm (300x300dpi)
Double-sided colour: 80ipm (300x300dpi)
Single-sided mono: 40ipm (300x600dpi)
Single-sided colour: 20ipm (300x600dpi)
Double-sided mono: 80ipm (300x600dpi)
Double-sided colour: 40ipm (300x600dpi)
Colour Scanning Depth 24 bit/24 bit (input/output)
Greyscales 256 levels
Compatibility TWAIN, WIA, ICA
Maximum Scan Width 216mm
Scan to E-mail TIFF/JPEG/PDF/Compact PDF/Searchable PDF/PDF A-1b
Scan to PC TIFF/JPEG/PDF/Compact PDF/Searchable PDF/PDF A-1b
Scan to USB Memory Key TIFF/JPEG/PDF/Compact PDF/Searchable PDF/PDF A-1b
Scan to FTP TIFF/JPEG/PDF/Compact PDF/Searchable PDF/PDF A-1b
Scan to Cloud TIFF/JPEG/PDF/PNG4
iFAX ITU-T.37
Fax Specifications
Modem Speed 33.6 Kbps (Up to 3 seconds/page5)
Receive Mode Fax only, Fax/Tel Auto Switch, Answer Mode, Manual
Fax Resolution
Standard: 200 x 100 dpi
Fine: 200 x 200 dpi
Super fine: 200 x 400 dpi
Ultra fine: 400 x 400 dpi
Fax Memory Up to 512 pages
Speed Dials Up to 281dials
Group Dials/Destinations Max. 299 dials / Max. 299 destinations
Sequential Broadcast Max. 310 destinations
Memory Backup Permanent fax memory backup (Backup with flash memory)
Double-Sided Faxing Yes (Transmit and Receive)
Other Features: Sender's Name (TTI), Direct Send, Review, TX Report, Sequential Broadcasting
Media Handling
Scanner Type Platen, 2-sided ADF (single pass)
Paper Input (Standard)
250-sheet cassette
50-sheet multi-purpose tray
50-sheet ADF

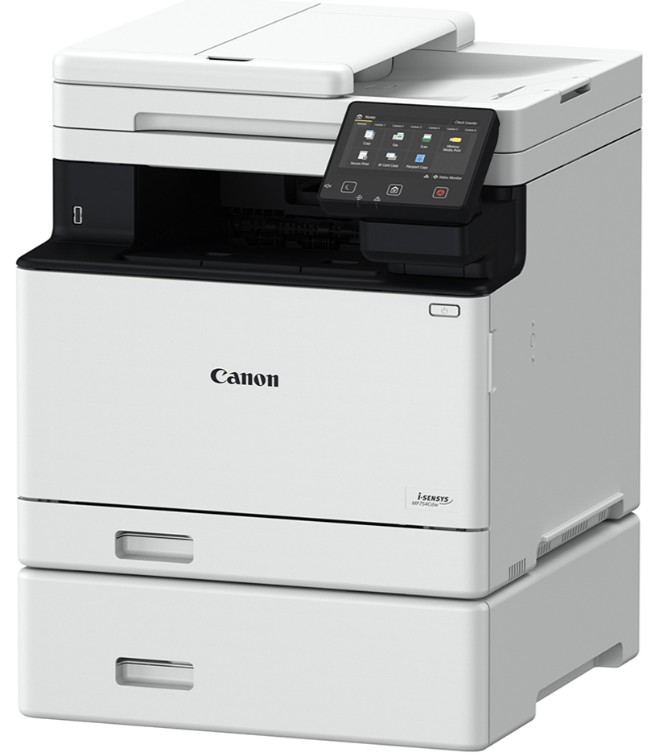

Paper Input (Option) 550-sheet cassette
Maximum Paper Input Capacity: 850-sheet cassette
Paper Output 150-sheet
Media Types: Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Post card, Envelope
Media Sizes Cassette (Standard): A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.
Multi-purpose tray: A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.0 x 127 mm Max. 216.0 x 356.0 mm.
Cassette (Optional): A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.
ADF: A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm, Max 216.0 x 355.6 mm
Media Weights Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)
ADF: 50 to 105 g/m²
Double-Sided Printing Automatic
Cassette: A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size - Min. 148 x 148 mm Max. 216 x 356 mm
60 to 200 g/m²
Interface & Software
Interface Type USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
Operating System Compatibility Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
Mac OS X version 10.12 & up
Linux7
Network Protocol Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan: Push Scan: File: FTP (TCP/IP), SMB3.0 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP
Management: SNMPv1, SNMPv3 (IPv4,IPv6)
Security: TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless): Infrastructure Mode: WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
Access Point Mode:
WPA2-PSK(AES)
Software and Printer Management
MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
Application Library
General Features
Recommended Monthly Print Volume 750 - 4,000 pages per month
Duty Cycle Max. 50,000 pages per month8
Processor Speed 1200MHz x 2
Memory 1GB

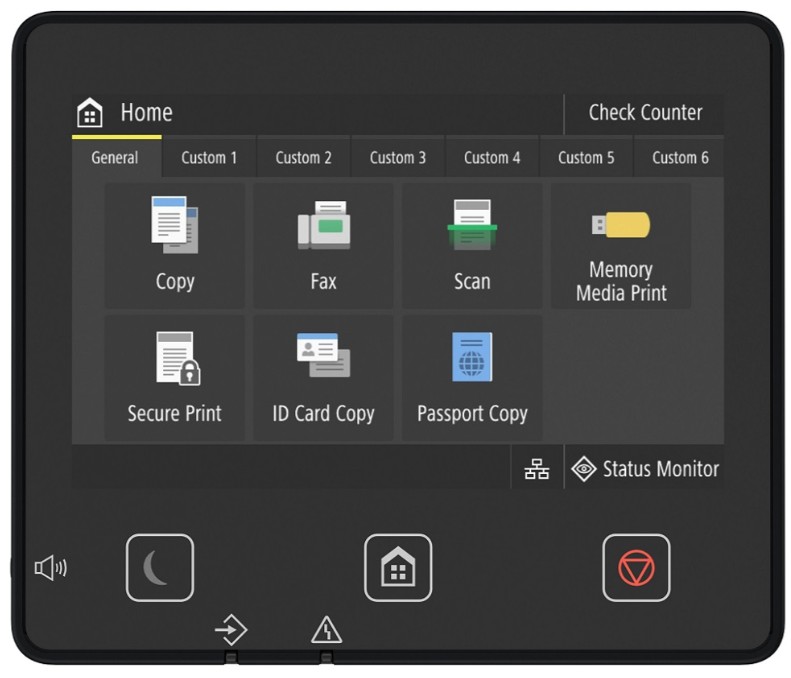

Control Panel 12.7 cm LCD Colour Touch Screen
Dimensions with Trays (W x D x H) 425 mm x 461 mm x 430 mm
Installation Space (W x D x H) 625 mm x 1,117 mm x 991 mm
Weight Approx. 23.60 Kg
Operating Environment Temperature: 10 to 30ºC (50 to 86ºF) Humidity: 20 to 80% RH (no condensation)
Power Source 220-240V(±10%) 50/60Hz (±2Hz)
Power Consumption Maximum: Approx. 1,380 W
Active printing: Approx. 700W
Standby: Approx. 24.0 W
Sleep mode: Approx. 1.0 W
Typical Electricity Consumption (TEC): 0.30 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to: http://www.canon-europe.com/For_Work/Lot26/index.aspx
Noise Levels Sound Pressure
Active: Simplex 51dB / Duplex 51dB (BW), 50dB (CL)
Standby: 29 dB
Sound Power:
Active: 65dB or less
Standby: 41dB or less
Consumables
Cartridges
Cartridge 069 Black (2,100 pages*)**
Cartridge 069H Black (7,600 pages*)**
Cartridge 069 Cyan (1,900 pages*)**
Cartridge 069H Cyan (5,500 pages*)**
Cartridge 069 Magenta (1,900 pages*)**
Cartridge 069H Magenta (5,500 pages*)**
Cartridge 069 Yellow (1,900 pages*)**
Cartridge 069H Yellow (5,500 pages*)**
Accessories & Options
Items

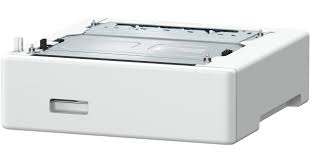

PAPER FEEDER PF-K1 (550-sheet cassette)
TEL 6 Kit Long Cord (Telephone handset)
