Product Description
A New Level of Performance, Versatility, and Ease of Use

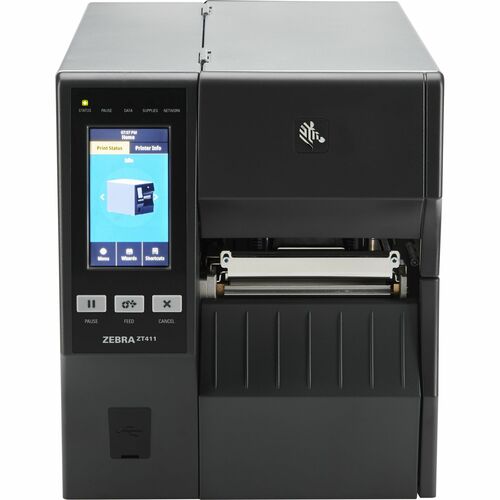

Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use, and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail, and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling, and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra's Print DNA suite of applications, utilities, and developer tools-all powered by Link-OS®. The result? The ZT400 offers the versatility, reliability, and performance to meet your industrial printing needs - today and tomorrow.
Versatile to meet your evolving needs | Configure your way with multiple connectivity options
The ZT400 comes standard with Ethernet, Serial, USB, dual USB Host, and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and Bluetooth for blazing-fast and reliable wireless connections.
Built to handle a wide range of media and applications
You can count on the ZT400 to print a variety of different label formats on a variety of different media types.
The printer is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi, and 600 dpi* (600 dpi available on 4 in. ZT411 only). Add factory- or field-installable RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra's exclusive ZT411 RFID On-metal Tagging Solution, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.
Dual USB Host ports for added flexibility
Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files, and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard - with two host ports, there's no need to plug and unplug peripherals.
Designed to evolve with your needs
You can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.
Save time and money for your business by using one printer for all your employees
The printer is capable of printing sharp and detailed monochrome documents quickly
Use a Thermal Transfer Printer for its versatility and compact design, as well as its high-resolution and durable printing capabilities
Delivers a high-speed, hassle-free labelling solution for your business needs
Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
Tech Specification:-
Software
Operating System Supported
Link-OS
Cutter
Cutter Yes
Cutter Type Guillotine
Memory
Flash Memory 512 MB
Standard Memory 256 MB
Miscellaneous
Energy Star Yes
Power Cable Localization US
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Touchscreen Yes
Power Description
Power Source AC Supply
Frequency 60 Hz
50 Hz
Interfaces/Ports
USB Yes
Serial Port Yes
USB Standard USB 2.0
USB Host Yes
Physical Characteristics
Weight (Approximate) 16.33 kg
Height 324 mm
Width 269 mm
Depth 495 mm
Fonts & Emulation
Language Emulation ZPL II
EPL
ZPL
EZPL
ZBI 2.0
EPL II
General Information
Product Type: Thermal Transfer Printer
Manufacturer Part Number ZT41142-T0PG000Z
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZT411
Product Name ZT411 Thermal Transfer Printer
Product Series ZT400
Brand Name Zebra
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
IEEE 802.11ax
Ethernet Technology Fast Ethernet
RFID Yes
Bluetooth Version 5.3
4.1
Near Field Communication (NFC) Yes
On-metal RFID Yes
Media Types & Handling
Media Thickness 250 µm
Maximum Roll Diameter 203 mm
Media Type Notch
Die-cut Label
Label
Continuous Label
Black Mark
Media Sensor Transmissive Media Sensor
Reflective Media Sensor
Adjustable Media Sensor
Maximum Label Width 103.89 mm
Maximum Label Length 990.60 mm
Technical Information
Application/Usage Industrial
Healthcare
Distribution Center
Desktop
Laboratory
Transportation & Logistic
Retail
Pharmacy
Manufacturing
Asset Tracking
Barcode Symbology Supported UPC-E
UPC-A
Code 49
Code 39
Code 128 (A/B/C)
Code 11
Codablock
Codabar
AZTEC
RSS-14
QR Code
Standard 2 of 5
TLC 39
UCC Case Codes
UPC 2 or 5 Digit Extension
Code 93
Data Matrix
EAN With 2 and 5 Digit Extension
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
LOGMARS
Maxi Code
Micro PDF
MSI
PDF417
Planet Code
Plessey
POSTNET
Maximum Print Width 104 mm (4.09")
Recommended Use Label Print
Connectivity Technology Wired & Wireless
Features UHF Reader
Versatile
Print Technology Thermal Transfer
Peel Facility Yes
Print Color Capability Monochrome
Maximum Print Length 3.99 m
Maximum Print Resolution (dpi) 203
