Product Description
Exceptional durability and reliability for the toughest environments
Zebra's ZQ500™ Series just got tougher. The premium ZQ511™ and ZQ521™ printers - both available in RFID models - give you best-in-class, rugged mobile printing for applications in any industry. Experience ultimate durability. Engineered for tough, demanding indoor and outdoor conditions, these printers can withstand significant drops, tumbles, accidents and environmental extremes that are common in mobile workplaces. Additional features, enhanced durability and military-grade design mean this printer will work as hard as you do.
Tough. Reliable. Built to Endure.
The Most Rugged Printers on the Market
You need a mobile printer that can handle serious abuse. Designed and certified to meet MIL-STD 810G for drop and shock, and tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3' (1M), the ZQ511 and ZQ521 printers can withstand more than the average mobile printer.
Protection from solid and liquid ingress is no problem with an IP54 rating right out of the box without the need for a protective case.

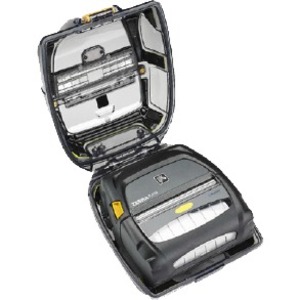

If this isn't enough to convince you that these are ultra-rugged mobile printers, we also offer an optional exoskeleton case that increases our standard drop testing from 6.6' to 10' and improves the IP rating to IP65.
Built to Last
New over-molding helps increase the longevity and keeps your ZQ500 Series looking good over the life of the printer.
Print it All: Receipts, RFID tags, Labels and Linerless
Optimized for on-demand receipt printing in 3" (72mm) and 4" (104mm) print widths, the ZQ511 and ZQ521 printers also print a variety of labels including UHF RFID tags for all your tracking needs. Zebra's comprehensive RFID portfolio is the only one to include mobile printers to help you reduce errors, and print and encode RFID labels on the go.
On-the-Go Power, Functionality and Premium Performance
Get All the Benefits of Linerless Media
Eliminate waste and improve your company's green initiative with linerless printing. Linerless media also allows your workforce to spend less time disposing waste and more time on the task at hand - improving your workforce productivity. And, since there are more labels on a roll, there are fewer rolls of media to carry and fewer media roll changes.
Optimize Your Printing Quality and Power
Consistent outstanding print quality and performance are key. New printhead and print mechanism, as well as new processor and added memory, deliver it. Keep your employees on task and on schedule with the ZQ500 Series' secondary Bluetooth communication channel. Send print jobs to the printer via one channel, while a second channel performs additional functions such as device management.
Android, Apple iOS, Windows Mobile connectivity
Bluetooth specification 4.1 EDR + LE
WLAN 802.11ac
Fast roaming 802.11r supported
528 MHz ARM processor
3250 mAh PowerPrecision+ (retrievable, rechargeable Li-Ion)
USB On-The-Go ports (with optional strain relief)
Power Smart Print Technology - anticipates upcoming printing to optimize battery consumption and print speed
Direct thermal printing of barcodes, text and graphics
IP54 rated for protection against solid and liquid ingress
Tech Specification:-
Interfaces/Ports
USB Yes
Memory
Standard Memory 256 MB
Power Description
Power Source Battery
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Fonts & Emulation
Language Emulation CPCL
ZPL
ZBI
Miscellaneous
Platform Supported Android
PC
iOS
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/c
Near Field Communication (NFC) Yes
Physical Characteristics
Weight (Approximate) 784.7 g
Form Factor Portable
Height 66 mm
Width 154.9 mm
Depth 157.5 mm
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ52-BAW100A-00
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ521
Product Name ZQ521 Direct Thermal Printer
Product Series ZQ500
Brand Name Zebra
Media Types & Handling
Media Thickness 139.7 µm
Maximum Roll Diameter 56.90 mm
Media Type Linerless
Tag
Receipt
Label
Gap
Black Mark
Media Sensor Black Mark Sensor
Maximum Label Width 113.03 mm
Technical Information
Application/Usage Mobile
Barcode Symbology Supported Micro PDF-417
Code 49
Code 39
Code 128
Code 11
Codablock
Codabar (NW-7)
Codabar
AZTEC
2D
2 and 5 Digits Add-on
UPC-A
UPC-E
UPC-E with EAN 2 or 5 Digit Extension
Data Matrix
EAN-13
EAN-8
FIM
GS1 DataBar
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
LOGMARS
Maxi Code
Code 93
MSI
MSI PLESSEY
PDF-417
Planet Code
Plessey
POSTNET
QR Code
Standard 2 of 5
TLC 39
UCC/EAN 128
Maximum Print Width 103.89 mm (4.09")
Recommended Use Label/Receipt Print
Connectivity Technology Wireless
Features Shock Resistant
Rugged
Drop Resistant
Print Technology Direct Thermal
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 990.60 mm
Real Time Clock Yes
Maximum Print Resolution (dpi) 203
