Product Description
Elevate your expectations: the advanced desktop printerthat delivers the features, flexibility, reliability and security you need
You need a reliable printer that delivers quality performance, now and for years to come. It needs to offer key features, and be easy to setup, operate, manage and maintain - onsite or remotely. It needs to be secure, whether it is integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it. Zebra delivers it, for more than 50 years. We design our printers to match your workflows, ensuring they are hassle-free and ready to work. Day in and day out. We're always innovating to deliver the best to help you advance your business and be ready for what's next. Building on the legacy of Zebra's popular GK Series, ZD421 printers add even more capabilities and security measures to set you up for years of use.
It's Time to Advance
Migrate from G to Z
The ZD421 builds on the legacy of Zebra's GK Series printers, offering you the functions and capabilities of its predecessor -and much more. The next-generation ZD421 leverages this heritage to deliver advanced features for a new era of intelligence and forward flexibility.
Simple to Use
Intuitive and Powerful Operation

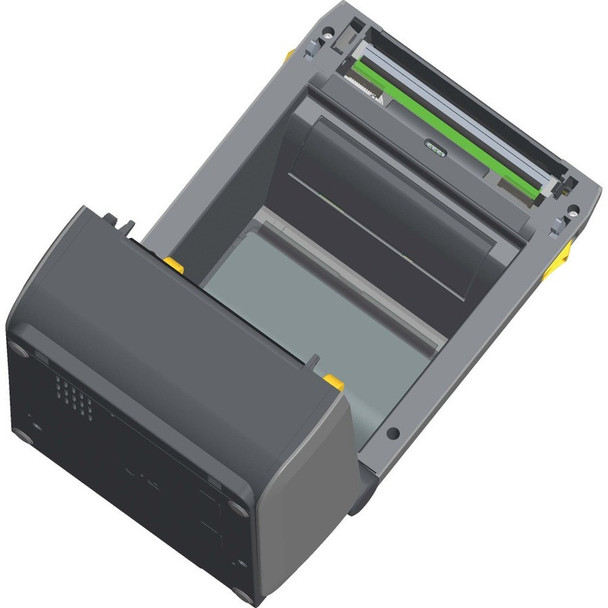

The ZD421 offers new, advanced features that make it stand apart. It includes a new, more intuitive user interface, powerful architecture and field-upgradeable wireless kit. It also has new media guide and media handling designs that make daily operation even easier
Flexible to Support Nearly Every Use Case

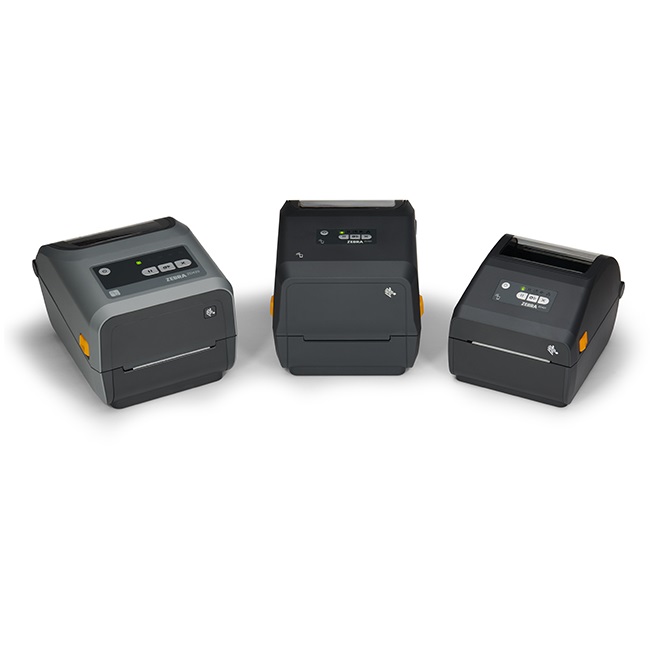

Multiple Models to Match Your Needs
Available in direct thermal, thermal transfer, healthcare and ribbon cartridge models, the ZD421 meets a wide variety of application requirements.
Ready for Now and What's Next
Get Years of Printing Performance
The ZD421 is designed to handle advancing technology. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD420 Series and 700% more than the GK Series. This lets you run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.
Features
Ideal to be used in field service, and in any application that has a need to print on the go
The printer is capable of printing sharp and detailed monochrome documents quickly
A smart and inexpensive solution to print temporary documents
Capable of printing labels and receipts virtually from anywhere and everywhere
Technical Specs
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Interfaces/Ports
USB Yes
USB Host Yes
Power Description
Input Voltage 230 V AC
120 V AC
Power Source AC Supply
Physical Characteristics
Weight (Approximate) 1.35 kg
Form Factor Portable
Height 150.6 mm
Width 177.3 mm
Depth 220.7 mm
Technical Information
Application/Usage Desktop
Barcode Symbology Supported Code 93
Data Matrix
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
LOGMARS
Maxi Code
MSI
PDF417
Planet Code
Plessey
POSTNET
QR Code
Standard 2 of 5
UPC 2 or 5 Digit Extension
UPC-A
UPC-E
Code 49
Code 39
Code 128
Code 11
Codablock
Codabar
AZTEC
Micro PDF
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Features Status Indicator
Dual Wall Frame
Mobile Device Printing Yes
Print Color Capability Monochrome
Optional Connectivity Wireless LAN
Serial (RS-232)
Ethernet
Near Field Communication (NFC)
Real Time Clock Yes
Maximum Print Resolution (dpi) 203
Fonts & Emulation
Language Emulation ZPL II
EPL
EPL2
XML
ZPL
ZBI
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZD4A042-D0PM00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD421
Product Name ZD421 Direct Thermal Printer
Brand Name Zebra
Miscellaneous
Platform Supported Android
iOS
PC
Environmentally Friendly Yes
Cables Included USB
AC
Energy Star Yes
Power Cable Localization UK
JP
EU
AUS
Media Types & Handling
Media Thickness 4826 µm
Maximum Roll Diameter 127 mm
Media Type Fanfold
Gap
Label
Receipt
Reflective
Roll Fed
Tag Stock
Wristband
Black Mark
Continuous Label
Continuous Receipt
Die-cut Label
Media Sensor Moveable Reflective/Black Mark Sensor
Multi-position Transmissive/Gap Sensor
Full Width Sensor
Maximum Label Width 108 mm
Maximum Label Length 991 mm
What's in the box?
Printer
empty ribbon take-up cores (1 in. and 0.5 in.)
300 m ribbon core adapters for non-Zebra ribbon (2)
AC power supply, power cord(s)
USB cable
Quick Start Guide
Regulatory Guide
Product Specifications
Max. Mono Print Speed 152mm/s
Max. Print Resolution 203 dpi
256 MB Standard Memory
Prints Up to 104mm Wide
EPL , XML, ZPLII Languages
USB & Bluetooth Interface
2 Years Standard Warranty
