Product Description

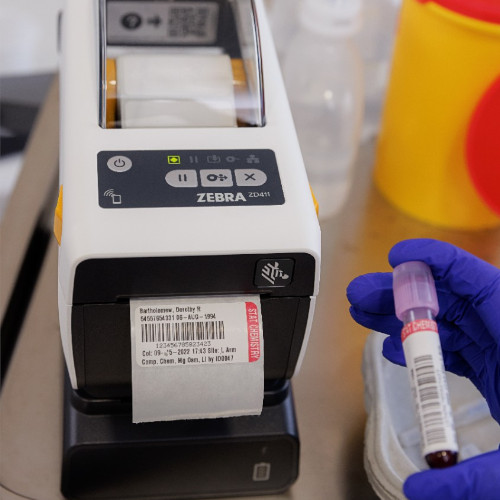

Expect more with Zebra's advanced, compact desktop printer, made for healthcare
Elevate your expectations with the reliable compact healthcare printer that's designed exclusively for healthcare. Zebra's ZD411-HC includes all the advanced features you need and is built to last for years to come. It's built with disinfectant-ready, UV-resistant plastics and a medical-grade power supply for added safety. Including a new architecture and our exclusive Print DNA software suite, it offers enhanced processing power, unmatched security and intuitive setup and operation. Add capabilities with field-installable options, including wireless capabilities. An extension of the proven ZD400 Series, it's ready to perform flawlessly for years to come.
Advance Your Healthcare Workflows | Easy to Clean, Sanitize and Safely Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD411-HC printer easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.
Simple to Setup, Use and Manage Today | Ready to Evolve for Tomorrow
Featuring Zebra's Print DNA software suite, the ZD411-HC is easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. It's designed to evolve with technology with its innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.
Change Media Easily
Color-coded touch points guide you through speedy media changes to keep printers operational and workers on task. See status easily via the five LED icons on the intuitive display.
It's Time to Advance | Powerful Printing with Intuitive Operation
Technology is constantly evolving, and so are your business needs. The ZD411-HC is ready to grow with you. Incorporating a powerful new processor, you can run more tasks and perform more operations simultaneously. Advanced features and connectivity options, including field-upgradeable media handling and wireless kits, make it stand apart. The ZD411-HC has five LED icons that allow you to instantly see what's needed to keep your printer up and running, from replenishing media to resolving printer issues. The advanced three-button user interface replaces the typical single-button/single-light interface common in desktop printers.
Features
Print methods: Direct Thermal
ZPL and EPL programming languages
5 status icon, 3 button user interface
USB 2.0, USB Host
Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection BLE is provided for use with Zebra printer setup mobile app only
Real Time Clock (RTC)
OpenACCESS™ for easy media loading
Dual-wall frame construction
ENERGY STAR® certified
PDF Direct
Technical Specs
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Software
Operating System Supported Link-OS
Interfaces/Ports
USB Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Near Field Communication (NFC) Yes
Technical Information
Application/Usage Healthcare
Barcode Symbology Supported MSI
PDF417
Planet Code
Plessey
POSTNET
QR Code
Standard 2 of 5
UPC
UPC-A
UPC-E
Maxi Code
Micro PDF
LOGMARS
ISBT-128
Interleaved 2 of 5
Industrial 2 of 5
EAN-8
EAN-13
EAN With 2 or 5 Digit Extension
2D
AZTEC
Codabar
Codablock
Code 11
1D
Code 128
Code 39
Code 49
Code 93
Data Matrix
Maximum Print Width 56 mm (2.20")
Recommended Use Label/Receipt Print
Connectivity Technology Wireless
Features Dual Wall Frame
Compact
Print Color Capability Monochrome
Real Time Clock Yes
Maximum Print Resolution (dpi) 203
Physical Characteristics
Weight (Approximate) 997.9 g
Height 152.4 mm
Width 114.3 mm
Depth 218.4 mm
Fonts & Emulation
Language Emulation ZPL II
EPL
EPL II
ZPL
XML
ZBI
EZPL
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZD4AH22-D0PM00EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD411-HC
Product Name ZD411-HC 2-inch Desktop Printer
Product Series ZD400
Brand Name Zebra
Miscellaneous
Platform Supported PC
Android
iOS
Environmentally Friendly Yes
Energy Star Yes
Power Cable Localization UK
JP
EU
AUS
Media Types & Handling
Media Thickness 190 µm
Maximum Roll Diameter 127 mm
Media Type Wristband
Fanfold
Continuous Receipt
Continuous Paper
Roll Fed
Tag Stock
Media Sensor Multi-position Transmissive/Gap Sensor
Full Width Sensor
Moveable Reflective/Black Mark Sensor
Maximum Label Width 57 mm
Maximum Label Length 991 mm
Product Specifications
Max. Print Width 56mm (2.20")
Max. Print Resolution 203 dpi
256 MB Standard Memory
Real-Time Clock (RTC)
ZPL, EPL, XML & EPL II
USB, Wireless & Bluetooth
2 Years Limited Warranty
