Product Description
SMART FEATURES. SMALL INVESTMENT. BIG PAYOFF.

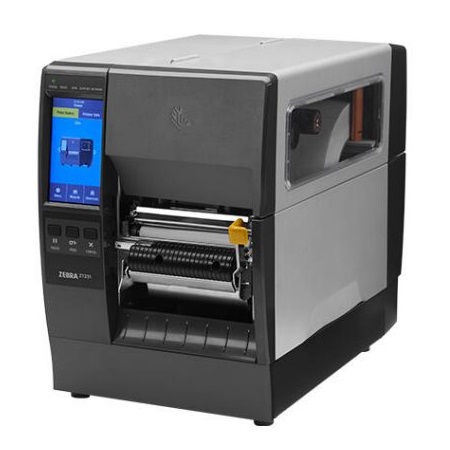

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design, and more - all in one space-saving footprint. Plus, add optional capabilities like RFID, wireless connectivity, and media handling features when needed. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.
GET MORE VALUE WITH ZEBRA | Simple Operation with Smart Features
Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos, and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without changing label formats or rewriting code.
Make It Easy for Your IT Team
Take advantage of Zebra's robust, ever-growing Print DNATM software suite for added capabilities. Easily configure, troubleshoot, and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.
The Smart Choice Now and Later
The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID encoding.
BUILT TO PERFORM. ENGINEERED TO ENDURE. | Don't Compromise on Quality
With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.
Get More Done with Greater Visibility
The ZT231 includes an all-new architecture to process more jobs at once and evolve with emerging technologies. Onboard analytics and printhead element-out detection help you plan maintenance in advance. And, the easy tool-less platen and print head removal makes maintenance easy.
Small Footprint, Big Access
To help you make the most of your workspace, we've engineered the ZT231 with a space-saving, compact design and a bi-fold door that reduces the height needed to open your printer. Take the trouble out of media loading with an intuitive design and color-coded cues. Adjustable sensors offer greater media flexibility and the large ribbon roll capacity lets you change media less frequently.
Connect Your Way
Take advantage of various standard connectivity options including USB, Serial, Ethernet, and USB Host. Tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Add a second Ethernet port, 802.11ac, or an Applicator port.
Get RFID Without Complication
Incorporate UHF RFID printing and encoding for greater visibility and tracking. Get greater media flexibility and simple RFID calibration with Zebra's adaptive encoding technology that eliminates complex placement guidelines.
Features
Print methods: direct-thermal or thermal-transfer
Construction: metal frame and metal enclosures
Bi-fold media door with large clear window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3â„¢ Element Energyâ„¢ Equalizer for superior print quality
Three-color LEDs for quick printer status
4.3" color resistive touch screen with intuitive menu for quick operation and settings
Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
ENERGY STAR® certified
Bluetooth Low Energy (BTLE) technology for enhanced location precision
ZebraDesigner Essentials - easy label design tool free at
Technical Specs
Memory
Standard Memory 256 MB
Technical Information
Application/Usage Healthcare
Transportation & Logistic
Retail
Manufacturing
Barcode Symbology Supported ISBT-128
LOGMARS
Maxi Code
MSI
Aztec Code
Codabar
Codablock
Code 11
PDF-417
PDF417
Planet Code
Plessey
POSTNET
QR Code
RSS Composite
2D
AZTEC
UPC 2 and 5 Digit Extension
UPC-A
UPC-E
Code 128
Code 128 (A/B/C)
Code 39
Code 49
Code 93
EAN 2 or 5 Digit Extension
EAN-13
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
Maximum Print Width 103.89 mm (4.09")
Recommended Use Label Print
Connectivity Technology Wired
Features Liner Take Up Spindle
Peel Facility Yes
Print Color Capability Monochrome
Maximum Print Length 1854.20 mm
Real-Time Clock Yes
Maximum Print Resolution (dpi) 300
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
Physical Characteristics
Weight (Approximate) 10.89 kg
Height 323.9 mm
Width 241.3 mm
Power Description
Power Source AC Supply
Frequency 50 Hz
60 Hz
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Touchscreen Yes
Display Screen Type LCD
Miscellaneous
Energy Star Yes
Power Cable Localization AUS
US
JP
EU
Fonts & Emulation
Language Emulation ZPL
ZPL II
ZBI 2.0
EPL2
EZPL
EPL
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZT23143T3P000FZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZT231
Product Name ZT231 Thermal Transfer Printer
Brand Name Zebra
Media Types & Handling
Media Thickness 250 µm
Media Type Black Mark
Notch
Die-cut Label
Continuous Paper
Media Sensor Reflective Media Sensor
Moveable Sensor
