Product Description

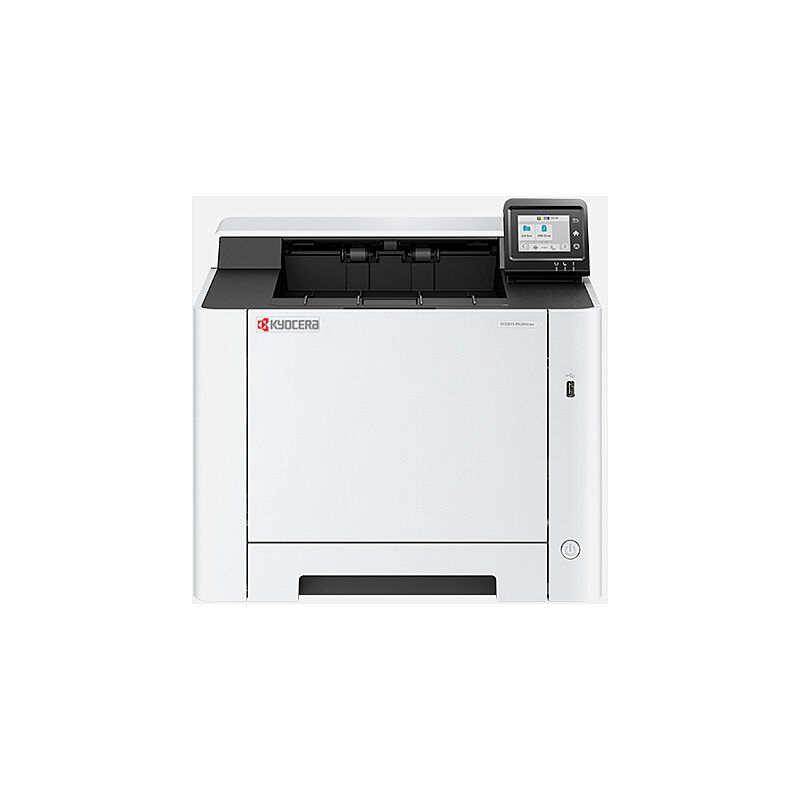

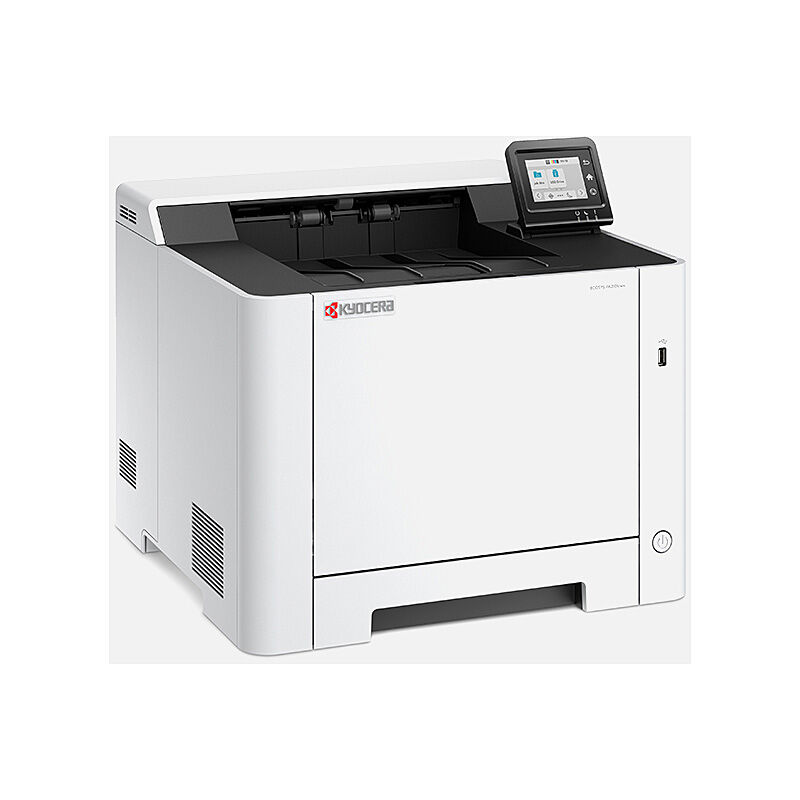

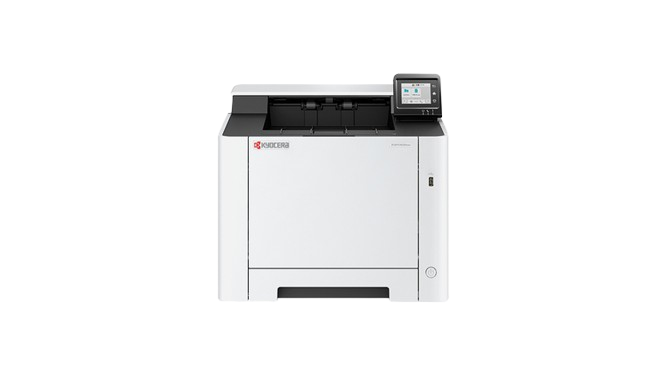

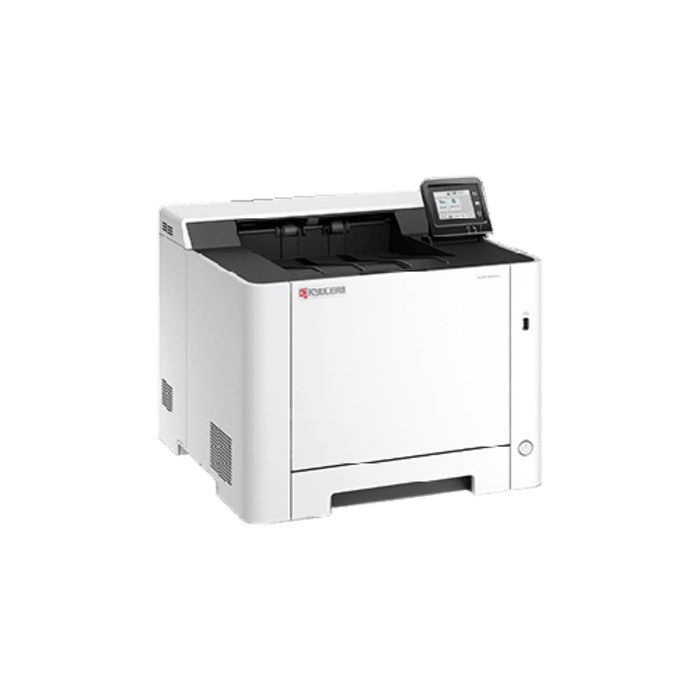

Compact and reliable, the ECOSYS PA2101cwx is a high-quality, economical colour A4 printer designed to fit perfectly on your desk and deliver consistent performance.
Print speed up to 21 ppm b&w and 21 ppm colour
2.7-inch touch screen for easy operation
Enterprise-grade information security to protect against threats
Optional additional paper feeder for a total of 550 sheets
Standard wireless and Wi-Fi Direct
ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range does this more than any other product on the market.
Driving efficiency through sustainability
The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical
For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly printers at an economical cost.
Specifications:-
General
General type Colour printer for A4 format
Engine speed Up to 21 pages per minute in A4 in colour and b/w
Warm-up time Approx. 32 seconds or less from power on
Power consumption Printing: 345 W, Ready mode: 33 W, Sleep mode: 0.4 W
Warranty 2 years return-to-base as standard. Optional upgrade to on-site available.
Paper Handling
Input capacity 50-sheet multi-purpose tray at 80 g/m²; 60–220 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm–216 x 356 mm) 250-sheet universal cassette at 80 g/m²; 60–163 g/m²; A4, A5, A6, B5, B6, Letter, Legal, Custom (105 x 148–216 x 356 mm)
Max. input capacity with options 550 sheets at 80 g/m²
Duplex unit Duplex as standard: Double-sided printing: 60 – 120 g/m²; A4, A5, B5, Letter, Legal
Output capacity 150-sheet face-down
Print
Processor ARM Cortex-A53 single core 1.0GHz
Fonts 93 scalable fonts for PCL/PostScript, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13, EAN128) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Applicable OS (Print) All current Windows operating systems, Mac OS X Version 10.8 or higher, UNIX, LINUX as well as other operating systems on request
Options and Consumables
Paper Handling Options
Article Type
PF-5110 Paper feeder
Capacity in sheets 250 sheets
Consumables
TK-5484K Average continuous black toner yield 1,250 pages A4 by ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5484C Average continuous cyan toner yield 1,250 pages A4 by ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5484M Average continuous magenta toner yield 1,250 pages A4 by ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5484Y Average continuous yellow toner yields 1,250 pages A4 under ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5494K Average continuous black toner yield 2,800 pages A4 under ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5494C Average continuous cyan toner yield 2,400 pages A4 under ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5494M Average continuous magenta toner yield 2,400 pages A4 under ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
TK-5494Y Average continuous yellow toner yields 2,400 pages A4 under ISO /IEC 19798. Starter toner yield: 1,500 pages A4.
Options
PCL Barcode SD Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
UG-33 AC ThinPrint support (Licence)
USB IC Card Reader + Card Authentication Kit (B) AC Support for various authentication keys available
UG-51 TPM (Trusted Platform Module)
What's in the box?
Kyocera ECOSYS PA2101CWX, Main Unit
Starter toner for 1,500 pages Black, Cyan, Magenta, Yellow,
Quick Guide
Safety instructions
Power supply cord
