Product Description

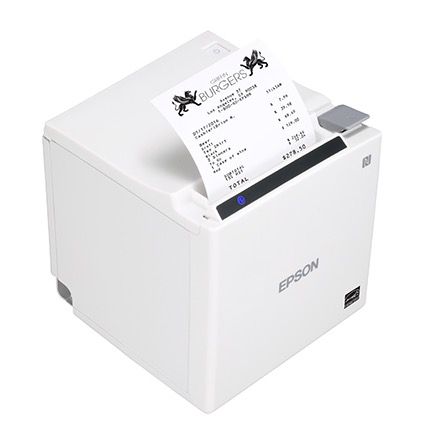

Epson TM-m30II-H-211 Desktop, Mobile Direct Thermal Printer - Monochrome - Receipt Print - Ethernet - USB - USB Host - Bluetooth - With Cutter - White - 250 mm/s Mono - 203 x 203 dpi - 80 mm Label Width - ePOS Emulation - Automatic Cutting - For PC, iOS, Android
Sleek, stylish, and compact - The ideal solution for tablet POS environments
The TM-m30II-H is an mPOS solution for specialist shops, boutique outlets, small restaurants, bars, coffee shops, delis, and food trucks. It features enhanced functionality and 'Sync and Charge' for tablet device connection, that allows the user to power* the tablet and print data over a single cable.
KEY FEATURES & BENEFITS
Sleek, compact, and stylish design with a very small footprint
Flexible placement -- place horizontally or vertically
NFC & Barcode pairing
Advanced Hub functionality with tablet charging*
ePOS print allows direct printing from ANY mobile device without the need to install or update drivers
Print speed of up to 250mm/sec
Paper width max 80mm
High-quality receipt printouts
Prints 1D and 2D barcodes
Stylishly compact
Epson's POS expertise has resulted in unrivaled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30II can be installed horizontally or vertically, that allows for even more positioning flexibility.
Enhanced Connectivity
This TM-m30II-H boasts advanced hub functionality and a rich set of features. Peripherals such as scanners, keypads, and scales, can connect directly with the TM-m30II-H and pass data to a device such as a tablet that would not normally support connection to peripherals. It also includes enhanced connectivity (USB, Ethernet and optional Bluetooth) and Server Direct Print (SDP) and Cloud (OMS) intelligent functionality.
Easy to install
Print directly from any smart device with ePOS-Print on both iOS and Android systems. Additional Ethernet, Bluetooth, USB, and Wi-Fi connectivity are available.
Adaptable
Quickly and easily customize receipts with logos and promotional messages. Advanced graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.
Paper saving
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.
Connectable
A single printer can be dynamically shared in mixed POS environments combining PC and Tablet solutions
Configuration Builds
CodeModelConnectivity*ColourC31CH92212 TM-m30II-H-212 Built-in USB, Ethernet, Bluetooth, USB Charging Black
C31CH92211 TM-m30II-H-211 Built-in USB, Ethernet, Bluetooth, USB Charging White
Direct printing from web browsers
Epson's innovative ePOS-Print technology means the TM-m30II-H can quickly, easily and seamlessly integrate with any PC, tablet, laptop or mobile device via a Wi-Fi or Bluetooth interface. Whether the device is running iOS, Android, Windows CE or Windows mobile, direct printing from the web browser becomes possible without the need to install or update any other drivers.
Easy pairing with mobile devices
NFC connectivity (Near Field Communication), means the TM-m30II-H can be easily paired with tablets and smartphones. Simply bring the devices close together to make the connection. For added convenience and flexibility, pairing by QR code is also possible.
Simple set-up using Wi-Fi
The 'Easy Setting Functionality' on the TM-m30II-H creates an access point for connecting smart devices. Once implemented, both devices can be easily set up and configured on a wireless network for instant use.
Features
Share the printer easily and efficiently with various other systems with the help of a built-in Ethernet port
Produce high-quality documents with this monochrome printer to increase your productivity
Direct Thermal Printer provides you with all the features that you need to print quickly and easily
Ideal for point-of-sale transactions for quick receipt printing
Technical Specs
Fonts & Emulation
Language Emulation ePOS
Technical Information
Application/Usage Desktop
Mobile
Barcode Symbology Supported ITF
Maxi Code
PDF417
QR Code
GS1-128
UPC-E
GS1 DataBar
UPC-A
EAN/JAN-8
EAN/JAN-13
Data Matrix
Composite Symbology
Code 93
Code 39
Code 128
Codabar (NW-7)
AZTEC
2D
Recommended Use Receipt Print
Connectivity Technology Wired
Features Compact
Installation Horizontal/Vertical
Print Color Capability Monochrome
Mean Time Between Failures (MTBF) 41.1 Year
Mean Cycles Between Failures (MCBF) 65000000
Character Sets 18 International
128 x 43 Graphic
95 Alphanumeric
Optional Connectivity Wireless LAN
Fonts Included Font A: 12 x 24 dots
Font B: 10 x 17 dots
Font C: 9 x 17 dots
Maximum Print Resolution (dpi) 203 x 203
Interfaces/Ports
USB Yes
USB Host Yes
Cutter
Cutting Method Automatic
Cutter Yes
Cutter Life 15000000 Cuts
Media Types & Handling
Media Type Receipt
Media Sensor Paper End Sensor
Maximum Label Width 80 mm
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Ethernet
Power Description
Input Voltage 120 V AC
230 V AC
Power Source Power Adapter
AC Supply
Physical Characteristics
Weight (Approximate) 1.30 kg
Height 127 mm
Width 127 mm
Depth 127 mm
Product Color White
Miscellaneous
Package Contents
TM-m30II-H-211 Direct Thermal Printer
Roll Paper
AC Adaptor
AC Cable
Spacer for 58mm Paper
Power Switch Cover
Platform Supported PC
iOS
Android
Cables Included AC
Power Adapter Included Yes
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CH92211
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model TM-m30II-H-211
Product Name TM-m30II-H-211 Direct Thermal Printer
Product Series TM
Brand Name Epson
