Product Description

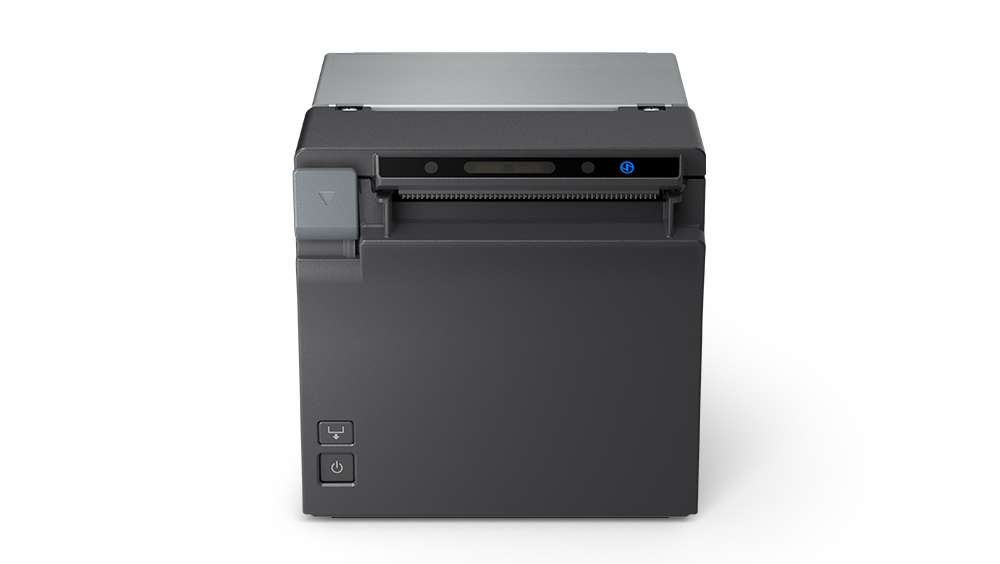

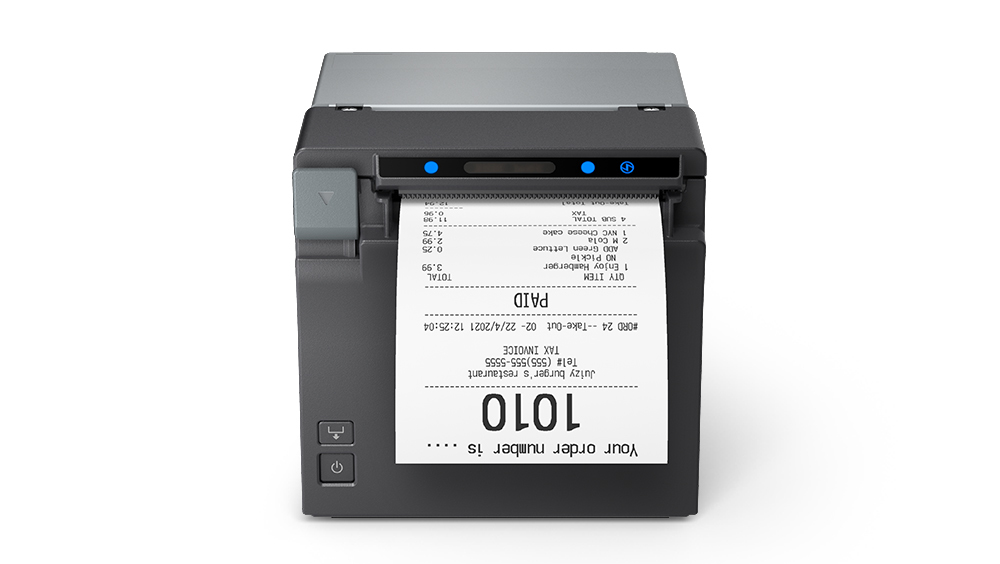

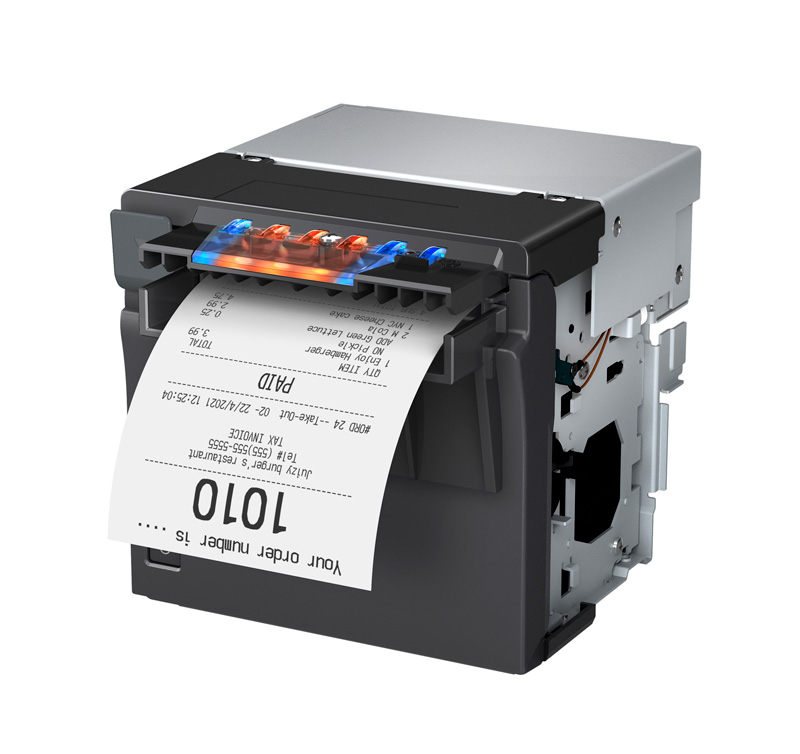

The sleek, new Epson EU-m30 Kiosk Thermal Receipt Printer offers innovative kiosk-friendly features for easy integration into various self-checkout and self-ordering kiosks. With the included easy mounting kit for effortless integration and serviceability, it’s ideal for busy retail and hospitality environments. Remote monitoring makes managing and minimizing downtime simple, and the EU-m30’s new bezel option helps improve paper path alignment which aids in preventing jams in a kiosk environment. Troubleshooting in the field happens fast thanks to illuminated LEDs for attention and error status. You can feel confident knowing the EU-m30 is secure with features like restricted front cover access and button cover options to prevent unauthorized printer access. A reliable performer, it features a 150 km printhead life and auto cutter life of 1.5 million cuts1. Customer waiting lines aren’t likely thanks to fast print speeds of up to 250mm/sec. Backed by local service and support, the EU-m30 includes a 2-year return to base warranty. The Epson EU-m30 Kiosk Thermal Receipt Printer is Built to keep customers and business moving.
Small-in-One printer – space-saving design with great performance
Compact and kiosk friendly – thermal receipt printer with easy mounting kit provides effortless kiosk integration and serviceability
Remote monitoring support – provides printer fleet management and minimizes downtime in kiosk deployments

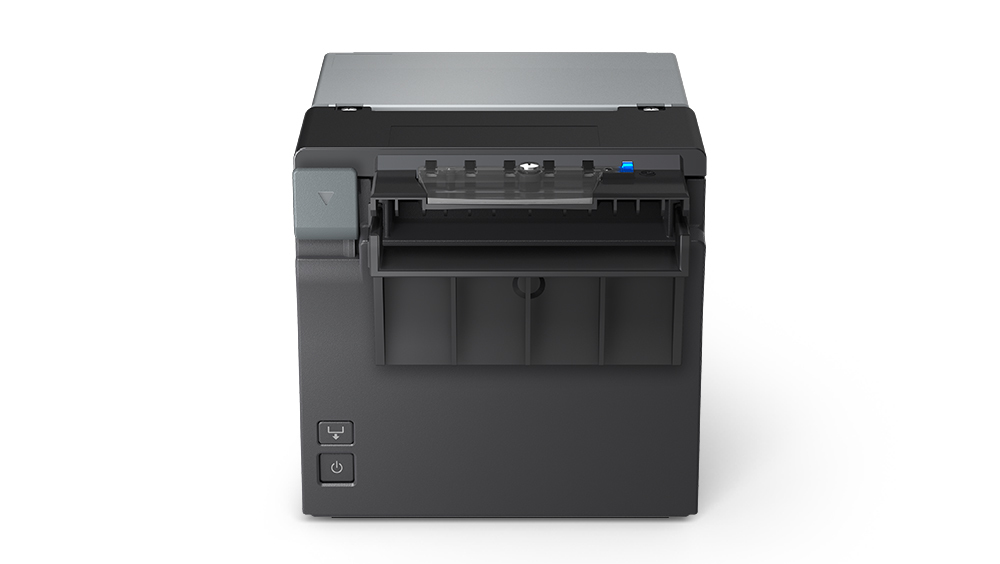

New bezel for efficient kiosk integration – optional bezel with LED indicators aids in better paper path alignment and paper jam prevention
Easy troubleshooting – illuminated attention and error status LED alerts help with speedy error resolutions in the field
Secure access – security features like restricted front cover access and button cover options prevent unauthorized access to the printer
High printer reliability – 150 km printhead life and auto cutter life of 1.5 million cuts
Fast receipt printing – print speed up to 250 mm/sec
Paper-saving functions – reduce paper usage by up to 30%
Specification:-
THERMAL RECEIPT PRINTER
PRODUCT NAME EU-m30
PRODUCT SPECIFICATIONS
PRINT METHOD Direct thermal line printing
PRINT RESOLUTION 203 x 203 dpi
PRINT FONTS (True Type) Font A: 12 x 24 dots
Font B: 10 x 17 dots
Font C: 9 x 17 dots
COLUMN CAPACITY 80mm: 48 col (font A), 57 col (font B), 64 col (font C)
58mm: 35 col (font A), 42 col (font B), 46 col (font C)
CHARACTER SIZE Font A: 1.25 x 3.00 mm
Font B: 1.13 x 3.00 mm
Font C: 0.88 x 2.13 mm
CHARACTER SET 95 Alphanumeric
18 International
128x43 pages extended graphics
Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two dimensional code: PDF417, QR Code, MaxiCode, Data Matrix, Aztec, 2D GS1 DataBar, Composite Symbology
PRINT SPEED Max. 250mm/sec
CONNECTIVITY Built-in USB, Built-in Serial
PAPER SPECIFICATION
DIMENSIONS 79.5 + 0.5 / -1.0mm (paper width 80mm)
57.5 + 0.5 / -1.0mm (paper width 58mm)
PAPER ROLL Drop-in
SENSORS Full-end sensor
POWER SPECIFICATION
POWER CONSUMPTION Approx. 32.8W (operating)
Approx. 1.5W (standby)
POWER 100 – 230V AC, 50 to 60 Hz
POWER SUPPLY AC Adaptor PS-180 (Optional)
RELIABILITY
MTBF 360,000 hours
MCBF 65 million lines
AUTO CUTTER 1.5 million cuts
PRINTER OPTIONS
COLOUR Epson Black, Epson Ultra White
EMI STANDARD AS/NZS CISPR22 Class A, AS/NZS 4268
OVERALL DIMENSIONS 127mm (W) x 131.2mm (D) x 127mm (H) (Without Bezel) / 127mm (W) x 155.9mm (D) x 127mm (H) (With Bezel)
WEIGHT 1.3Kg
WHAT'S IN THE BOX
Printer, roll paper, spacer for 58mm paper, power switch cover
CONFIG BUILDS
C31CK01201 EU-m30-201, Bult in USB, Built-in serial - White
C31CK01202 EU-m30-202, Bult in USB, Built-in serial - Black
OPTIONS
OT-BU30 Bezel for EU-m30
OT-BZ20 External Buzzer
PS-180 Power Supply adaptor
WARRANTY 2 Years return to base (RTB)
COVER PLUS
1YWEUM30 CoverPlus 1yr Service Pack EU-m30
2YWEUM30 CoverPlus 2yr Service Pack EU-m30
3YWEUM30 CoverPlus 3yr Service Pack EU-m30
What's in the box?
Epson EU-m30 Printer
Thermal Roll Paper (Starter Roll for Testing)
Power Switch and Power/Feed Switch Covers
Roll Paper Guides for 58 mm Paper
Small Cover Open Lever
Including 1 Spare Screw
Equipment Mounting Brackets (x2)
Product Fixing Brackets
Including 2 Screws + 1 Spare (Total of 3 Screws)
Product Specifications
Max. Print Speed 250mm/sec.
Up to Print Res 203 x 203 dpi
83 mm Max. Roll Diameter
17 Million Printing Lines
LED Indicators, Auto Cutter
USB & Serial Interface
2-Year RTB Warranty
Brochure for Epson EU-m30-202 Black Kiosk Thermal Receipt Printer
