Brief Overview
Bundle Includes 1x QL-820NWB and 12x DK22205
Product Description

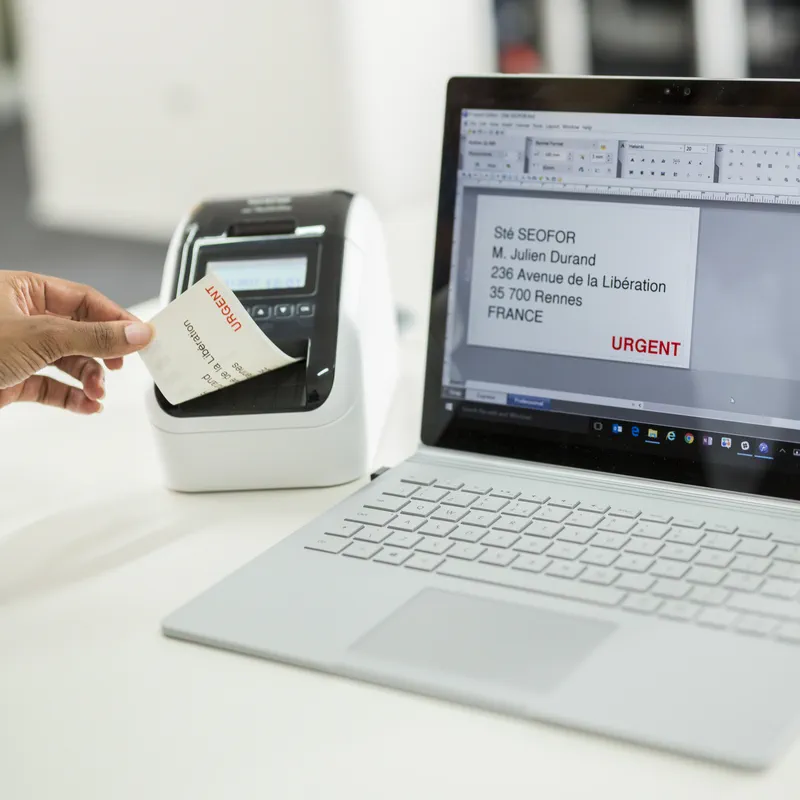

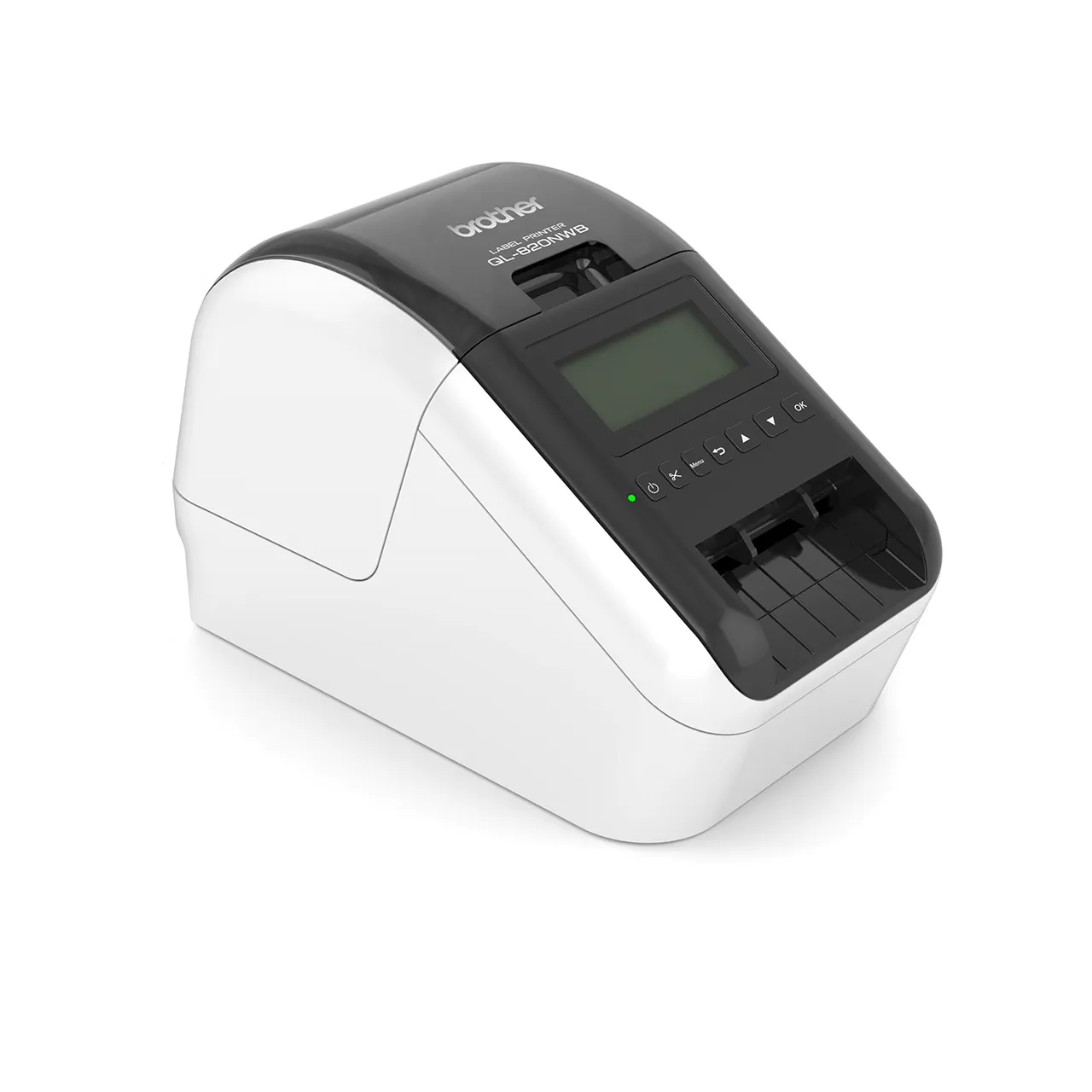

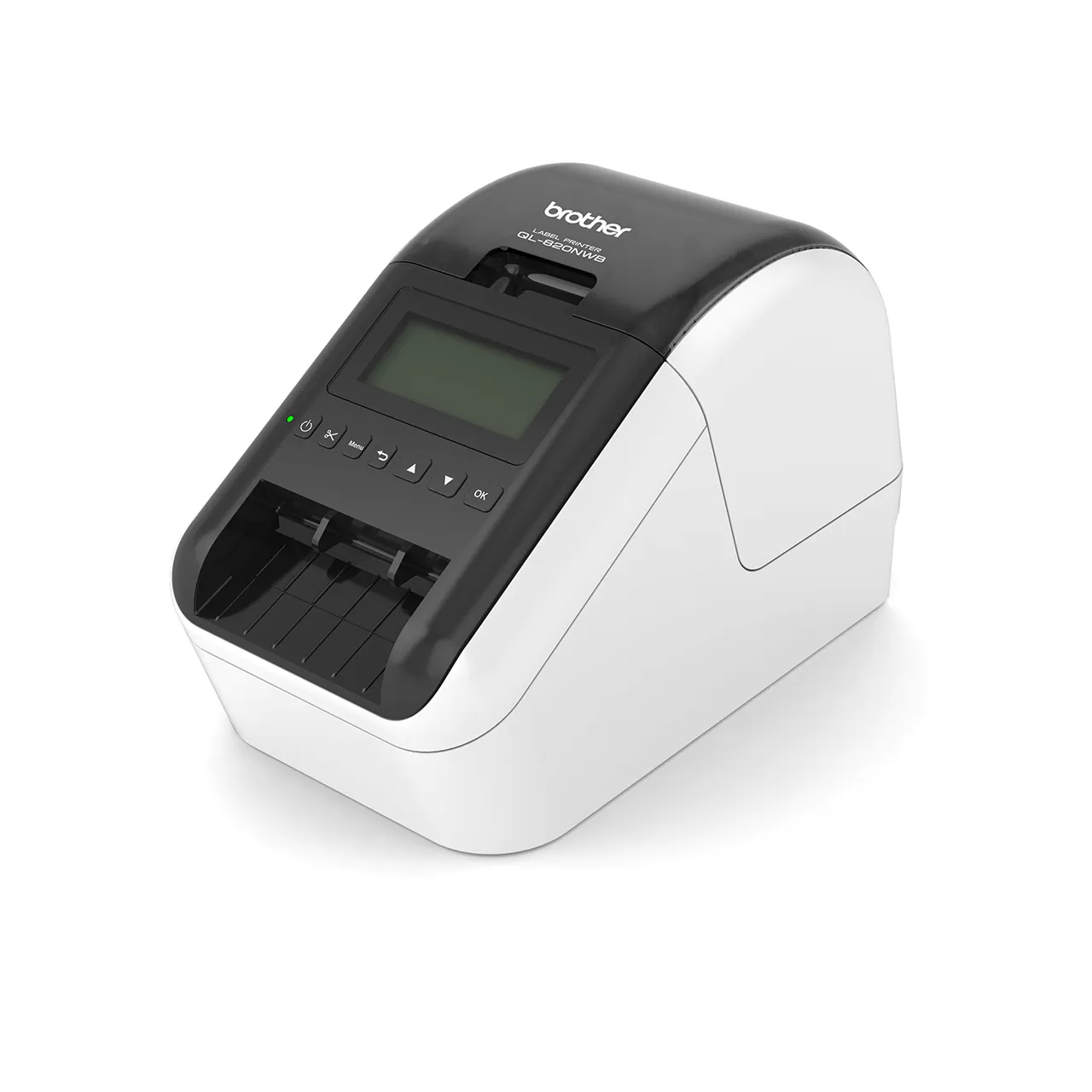

Introducing the QL-820NWB; Brother’s fastest label printer of up to 110 labels/min. Equipped with a large graphic LCD, making it easier to operate and design personal labels, the Brother QL-820NWB can also work without being connected to a PC. Providing unprecedented flexibility and creative possibilities for users, this device prints in both black and red text, enabling a variety of use applications including warnings, highlighting important messages or emphasising offers on signs. Offering Bluetooth and wired network connectivity in addition to Wi-Fi, AirPrint and USB connection, and an optional Li-ion battery supporting mobile use, the QL-820NWB is the professional tool you’ve been looking for.
General
Functions Wired/Wireless network ready with Bluetooth labeller that prints 62mm labels with auto cutter Hardware Type Desktop Engine Direct thermal Standard Memory 6Mb / 255 templates
Display
Display Type: LCD Display 62mm x 26mm with Preview and Back light, LED - Power
Control Panel
Buttons7 (Power, Cut, Menu, Return, Up, Down, OK)
Printer
Emulation1.Raster
2.ESC/P
3.PTouch template Print Speed Max. 176 mm/sec. Printer Resolution300 dpi / 720 dots. Distributed Printing (Windows Only via USB or Ethernet)
Labeller
Characters and Symbols PC Select Frames and Backgrounds PC Select Barcodes Yes Bar Code Names Software side: CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), IMB**
Machine side: CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 Data Bar(RSS)(GS1 DataBar Omni directional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 Data Bar Stacked Omni directional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION Multi Line PrintPC Select Tape Length Setting12.7mm - 1000mm Max Print Height58.93 mm Max Print Length Up to 1000mm long (Windows) Fonts LabellerBuilt-in Bitmap fonts: Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Built-in Outline fonts: Helsinki, Brussels, Letter Gothic
All True Type Fonts installed on your computer, Time and Date Feature, Built-in or Via Computer
Software
Software Included Win: P-touch Editor, Office Add-in (Word, Excel, Outlook), P-touch Address Book ver. 1.1
Mac: P-touch Editor Template Transfer to Machine Yes (255 Templates or 6MB)
Connectivity
Interface USB(Full Speed), RS-232C, 10/100 BASE-TX Wired Ethernet, IEEE 802.11b/g/n Wireless LAN, Bluetooth, USB Host Wired Interface 10/100 BASE-TX Wired Ethernet Wireless Interface Yes Operating System Windows 10, Windows 8/8.1, Windows 7, Vista, Server 2008, Server 2008R2, Server 2012, Server 2012R2
Mac: OSX 10.9 or greater
Linux deb, rpm (Only driver)
Android / IOS
Mobile / Web Printing
Mobile Operating System Iprint&Label (Android/IOS), AirPrint iPrint Label Android/IOS
Networking
Wireless Interface Yes Wireless ModeIEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11b (Adhoc Mode) Wireless Security SSID (32 chr), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), LEAP, EAP-FAST
Power Supply
AC Adaptor External S/W Power Supply (PA-AD-001A) Battery Life Mono:4,300 labels / 2 colour:1,400 labels Battery RechargeLess than 2 hours and 30 minutes
Options
Optional Power Rechargeable Lithium-Ion Battery Pack (PA-BU-001), Optional Other Cleaning Sheet (10 sheets), Battery, Optional Rechargeable Lithium-Ion Battery Pack (PA-BU-001)
Consumable
Roll Width 62 mm Roll Type DK Rolls (DK Die-cut Labels / DK Continuous Length Tape / DK Two Colour Rolls) Roll Size See Roll Type Roll Cutter Durable Auto cutter (User unreplaceable)
Weight and Measures
Size 125x234x145 (WxDxH) mm Weight1.13kg (without DK roll)
Environment
Energy Star Compliant: Yes, Auto Power Off: Yes
Others
Warranty 3 Years Return To Base Carton ContentsQL-820NWB, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter roll, 5m), Power Cord and Adaptor
What's in the box?
QL-820NWB with 12x DK22205 Roll Paper, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter roll, 5m), Power Cord and Adaptor
Product Specifications
Up to Print Speed Max. 176mm/Sec.
Up to Resolution 300 dpi / 720dots
6 MB Standard Memory
7 Control Panel Buttons
Up to 1000mm Max. Print Length
USB & Wireless Interface
3 Years Return to Base Warranty
Brochure for Brother QL-820NWB Label Maker Printer Bundle
