Product Description
Portable Bluetooth Label Maker for Electricians and Data Installers

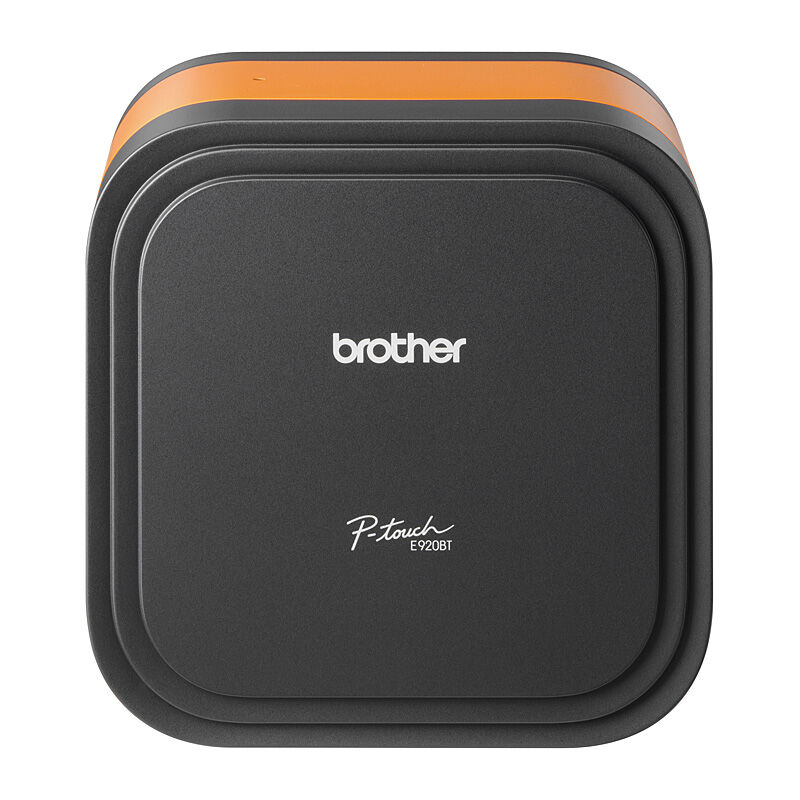

Print industry-compliant labels fast, without the bulk. The Brother PT-E920BT is a compact, portable label maker built for high-volume work. Ideal for electricians and data installers, it prints from your laptop or phone via Bluetooth using the Brother Pro Label Tool app.
Print wirelessly with the Brother Pro Label Tool app
Cut down time on site with a trade-focused mobile app built for fast, practical labelling. With built-in Bluetooth, create and print job-ready labels for electricians and data installers straight from your smartphone or PC on demand, wherever the work takes you.
Trade-ready templates for Electrical & Data Labelling
From cable wrap, cable flag and patch panel to punch block and faceplate labels, choose from a wide range of industry-standard layouts or build your own. Add symbols, QR codes and barcodes, then customise and serialise labels to match your job, so you can label once and get back on the tools.
Versatile output, with wide 36mm labels
Leave label size restrictions behind with a versatile range of tape widths for every application. Choose from 3.5mm, 6mm, 9mm, 12mm, 18mm and 24mm, through to wide 36mm tapes for compliant (AS/NZS 3000) safety signage, standout switchboard callouts, and clear distribution board identification.
Batch print for high-volume jobs
More time on the tools, less on the labeller, with fast print speeds of 20mm/sec and a built-in automatic cutter (half and full) to batch print multiple labels in one continuous strip for fast peel-and-apply.
Site-ready in a compact footprint
At just 1.17kg (with tape and battery), the PT-E920BT packs serious capability into a compact, lightweight design, ideal for moving from your van to switchboard without weighing down your toolbelt.
Trade-grade TZe Pro Tapes
Brother’s TZe Pro Tapes are built and tested to withstand even the toughest conditions, laminated with six layers of material. From pouring rain to scorching heat, be confident in labels that are waterproof, abrasion and chemical-resistant.
Basic Specs
Keyboard No Keyboard
Display Type Smartphone Only
Media Type TZe, FLe tape
Available Tape Widths 3.5, 6, 9, 12, 18, 24, 36mm
Product Dimensions (Width X Depth X Height) 138 mm × 94 mm × 138 mm
Weight 1.17 kg
Print Speed 20 mm/sec
Warranty 3 years Return to Base Warranty
What's in The Box
PT-E920BT labelling machine, 36mm TZe black on yellow strong adhesive tape, USB Type C cable, Li-Ion rechargeable battery (PA-BT-003)
Print
Resolution 360 dpi
Number of Characters Smartphone Select
Number of Symbols Smartphone Select
Connectivity
Connectivity USB 2.0 Full Speed Type C, Bluetooth® Dual-Mode (Classic + LE)
Media
Maximum Tape Width Up to 36 mm
Printing Width 32 mm
Functions
Cutter Auto
Copy Printing Yes
Mirror Printing Yes
Preview Smartphone Select
Memory
File Storage No
Memory Buffer Size No
Power
Power Source Li-Ion battery (PA-BT-003 included)
Auto Power-Off Yes
Supported Operating Systems
Supported OS Windows 10, 11, Mac OS 17, 18, 26, Android 12, 13,14,15,16
Software and Apps
Software And Apps P-touch Editor 6
Mobile Apps Pro Label Tool
What's in the box?
PT-E920BT Label Maker
36mm TZe black on yellow strong adhesive tape
USB Type C cable
Li-Ion rechargeable battery (PA-BT-003)
Product Specifications
Up to Print Speed 20mm/Sec.
Up to Res 360 dpi / 560 dots
3.5, 6, 9, 12, 18 , 24, 36mm Tapes
Lightweight And Compact Design
Li-Ion Rechargeable Battery
USB 2.0 Type C & Bluetooth
3 Years Return to Base Warranty
