Brief Overview
TT PRINTER ZD420 STANDARD EZPL 203 DPI APAC CORD BUNDLE (EU UK AUS JP) USB USB HOST MODULAR CONNECTIVITY SLOT
Product Description

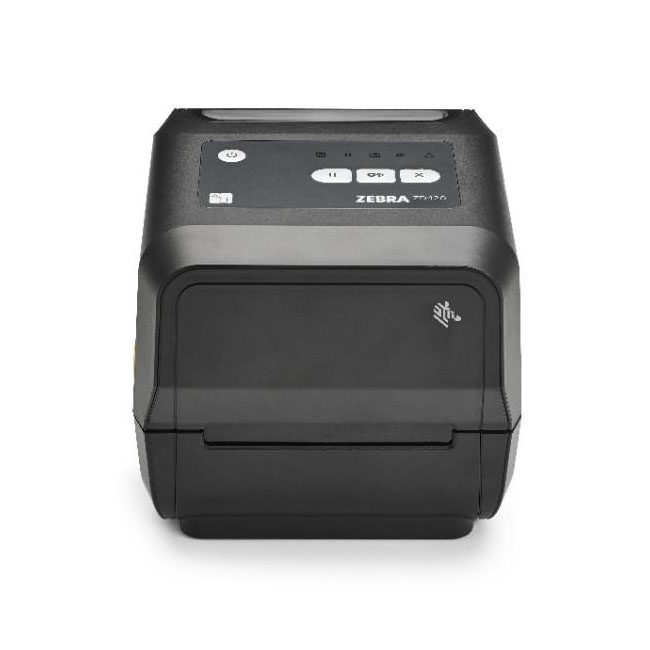

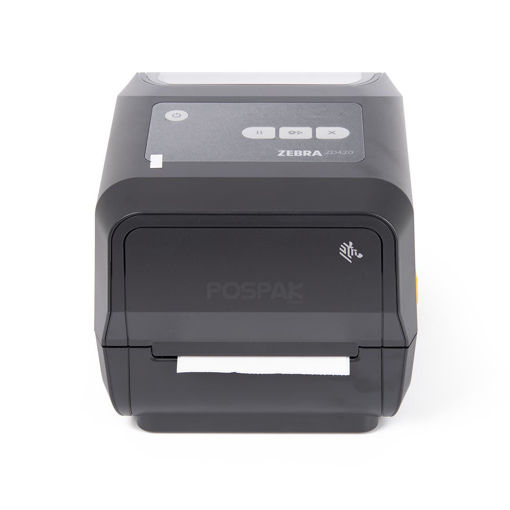

Zebra ZD420 design with compact footprint in order to fit into your valuable space on front counter for thermal transfer and direct thermal printing application. With Zebra more than 20 years label printer design experience, ZD420 give you the highest quality label printing as well as wristbands, tag even receipts printing requirement. Come with latest design easy loading ribbon feature. Default with USB and USB host connectivity, ZD420 also give you the option to upgrade on site for Wireless and Ethernet connectivity. No need to pre order from factory. Believe on Zebra quality, ZD420 give use the maximum uptime, let this small tiny printer to assist your big business operation. Design specifically for healthcare purpose.
Interfaces/Ports
USB Yes
Memory
Standard Memory 256 MB
Power Description
Power Source AC Supply
Warranty
Limited Warranty 2 Year
Miscellaneous
Package Contents
ZD420 Thermal Transfer Printer
Empty ribbon take-up cores (1 in. and 0.5 in.)
2 x 300 m Ribbon Core Adapters for non-Zebra Ribbon
AC Power Supply
Power Cord(s)
USB Cable
Quick Start Guide
Regulatory Guide
Cables Included USB
AC
Energy Star Yes
Power Adapter Included Yes
Media Types & Handling
Maximum Roll Diameter 127 mm
Media Type Tag Stock
Gap
Black Mark
Receipt
Roll Fed
Fanfold
Label
Continuous Receipt
Die-cut Label
Wristband
Maximum Label Width 118 mm
Maximum Label Length 991 mm
Physical Characteristics
Weight (Approximate) 2.40 kg
Form Factor Portable
Height 192 mm
Width 202 mm
Depth 267 mm
Technical Information
Maximum Print Width 104 mm (4.09")
Recommended Use Label/Receipt Print
Maximum Print Resolution 203 dpi
Maximum Mono Print Speed 152 mm/s
Print Color Capability Monochrome
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZD42042-T0P000EZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZD420t
Product Name ZD420 Thermal Transfer Printer
Product Series ZD420
Brand Name Zebra
What's in the box?
ZD420 Thermal Transfer Printer
Empty ribbon take-up cores (1 in. and 0.5 in.)
2 x 300 m Ribbon Core Adapters for non-Zebra Ribbon
AC Power Supply
Power Cord(s)
USB Cable
Quick Start Guide
Regulatory Guide
Product Specifications
Max. Mono Print Speed 152mm/s
Max. Print Resolution 203 dpi
Max. Label Width 104mm (4.09")
256MB Standard Memory
127mm Max. Roll Diameter
USB Interface
2 Year Limited Warranty
Brochure for Zebra ZD420 203DPI USB/MOD Thermal Transfer Label Printer
