Brief Overview
HIGH SPEED PROFESSIONAL PC/MAC LABEL PRINTER / UP TO 62MM WITH BLACK/RED PRINTING (*DK-22251 required)
Product Description

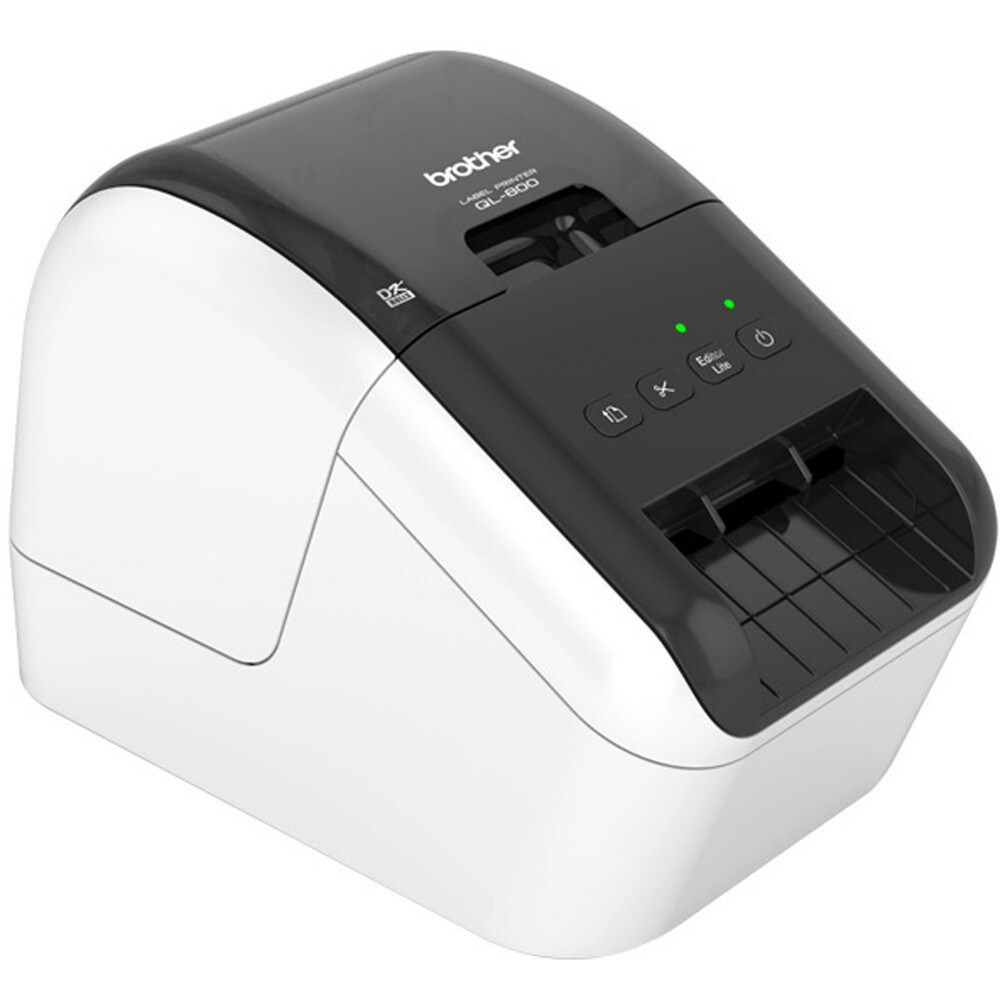

Introducing the Brother QL-800; a professional label printer that
ensures you’re always one step ahead with print speeds of up to 93
labels/min. Providing unprecedented flexibility and creative
possibilities for users, this device prints in both black and red text,
enabling a variety of use applications including warnings, special
identification of persons on name tags, highlighting important messages,
emphasising offers on signs or for practical reminders. Offering USB
connectivity, an integrated cutter and software for designing your own
labels, and easy to use drop-in rolls with built-in spools to ensure a
simple change of rolls, the QL-800 is the professional tool you need.
General
Functions Labeller that prints 62mm labels with auto cutter Hardware Type Desktop Engine Direct thermal
Display
Display Type LED - Editor Lite, Power
Control Panel
Buttons4 (Feed, Cut, Editor Lite, Power)
Printer
Emulation Raster Print Speed Max. 148 mm / sec.Printer Resolution300 dpi / 720 dots
Labeller
Characters and Symbols PC Select Frames and Backgrounds PC Select
Barcodes Yes BarCode Names Software side: CODE39, CODE128,
UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR (NW-7), UPC-A, UPC-E, EAN13,
EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode,
POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14
Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked),
PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data
Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4,
Model5), IMB**Multi Line PrintPC SelectTape Length Setting12.7mm -
1000mmMax Print Height58.93 mmMax Print LengthUp to 1000mm long
(Windows)Fonts LabellerAll True Type Fonts installed in your computer
Time and Date Feature Via Computer
Software
Software Included Win: P-touch Editor , Office Add-in (Word, Excel, Outlook), P-touch Address Book ver. 1.1
Mac: P-touch Editor
Connectivity
Interface USB(Full Speed) Operating System Windows 10, Windows 8/8.1, Windows 7, Vista
Mac: OSX 10.9 or greater
Linux deb, rpm (Only driver)
Android
Mobile / Web Printing
Mobile Operating System Iprint & Label (Android Only)iPrint Label Android
Power Supply
AC Adaptor Internal S/W Power Supply
Options
Optional Other Cleaning Sheet (10 sheets)
Consumable
Roll Width 62mmRoll Type DK Rolls (DK Die-cut Labels / DK Continuous
Length Tape / DK Two Colour Rolls)Roll SizeSee Roll TypeRoll
CutterDurable Auto cutter (User unreplaceable)
Weight and Measures
Size125x213x142 (WxDxH) mm Weight 1.13kg (without DK roll)
Environment
Energy Star Compliant Yes Auto Power OffYes
Others
Warranty 3 Years Return To Base
Carton ContentsQL-800, CD-ROM (Software/Driver/User's Guide), Quick
Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label

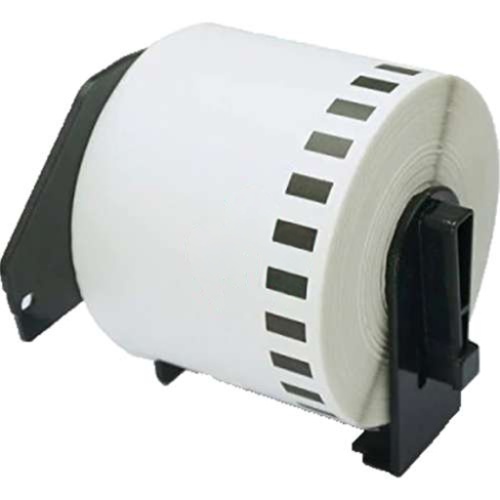

(Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length
Paper Tape (Starter roll, 5m), Power Cord
What's in the box?
Product Specifications
Up to Print Speed 148mm / Sec.
Up to Resolution 300 dpi / 720 dots
12.7mm - 1000mm Tape Length
Feed, Cut, Editor & Power Button
62mm Roll Width
USB 2.0 Interface
3 Years Return to Base Warranty
Brochure for Brother QL-800 Professional Label Printer
