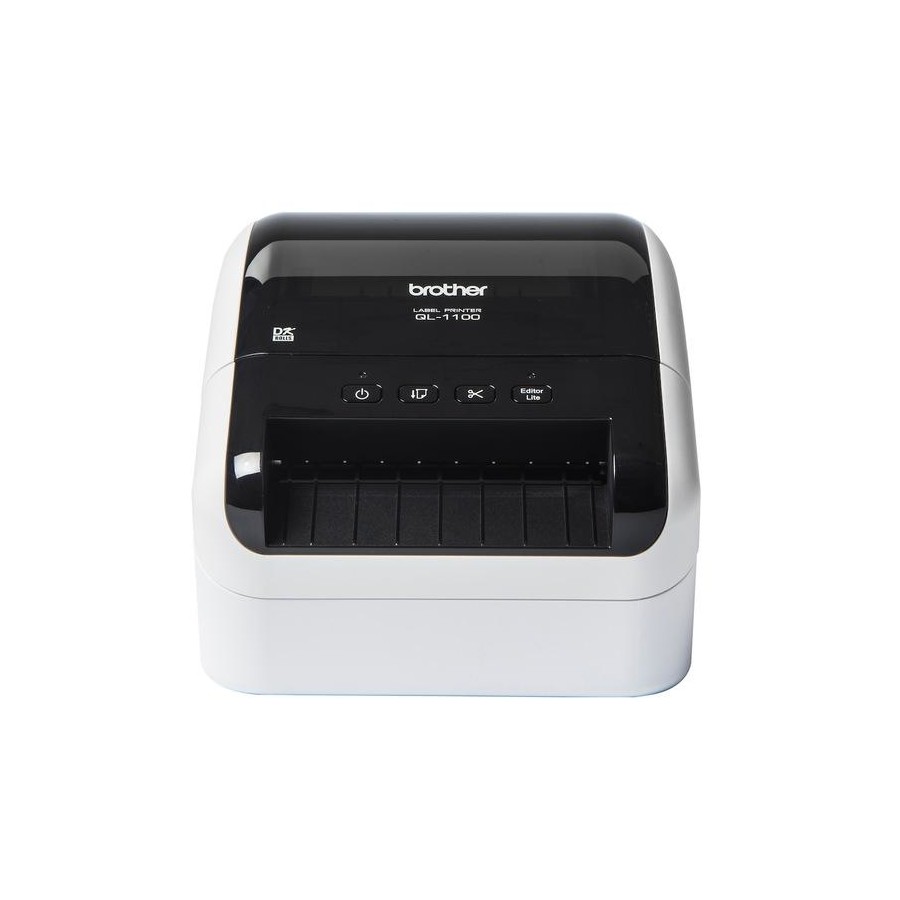

Brief Overview
Streamline your shipping and inventory processes with this Brother
wide-format label printer. The automatic crop function lets you print
perfectly sized labels for packages and envelopes, while the fast
printing action delivers up to 69 clear, easy-to-read address labels per
minute. This Brother label printer offers plug-and-play function
without the need for installing software, and it's compatible with
Windows PC's.
Product Description
General
Functions Network ready labeller that prints 102mm labels Hardware Type Desktop EngineDirect thermal Standard Memory7.8MB or 99 templates
Display
Display Type LED lamp (3 colour - Green, Red, Orange)
Control Panel
Buttons4 buttons(Power, Feed, Cutter, Editor Lite)
Printer
Emulation Raster, ESC/P, PTouch template, ZPL/ZPLⅡ*Print Speed Max. 110 mm / sec. or 69 standard address labels / min.Printer Resolution300 dpi / 1296 dotsDistributed Printing Yes
Labeller
Characters and Symbols PC Select Frames and Backgrounds PC Select Barcodes Yes Bar Code Names Software side(*1): CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), AztecCode**, PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), IMB
Machine side(*1): CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION, MSI, AztecMulti Line PrintPC SelectTape Length Setting25.4mm - 3000 mm (Win)Max Print Height101.6mmMax Print LengthUp to 3000mm long (Windows)Fonts LabellerBuiltin Bitmap fonts: Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
Builtin Outline fonts: Helsinki, Brussels, Letter Gothic
All True Type Fonts installed in your computerTime and Date FeatureVia Computer
Software
Software IncludedWin: P-touch Editor 5.2, P-touch Address Book 1.3, Printer Setting Tool, P-touch Update Software, P-touch Editor Lite
Mac: P-touch Editor 5.2, Printer Setting Tool, P-touch Update SoftwareTemplate Transfer to Machine7.8MB or 99 templatesPtouch Editor LiteYes
Connectivity
Interface USB Ver.2.0 (Full Speed) TypeB, USB Host (HID Class)Operating SystemWindows 10, Windows 8/8.1, Windows 7, Server 2008, Server 2008R2, Server 2012, Server 2012 R2, Server 2016
Mac: OS X 10.11 or above
Linux deb, rpm (Only driver)
Mobile / Web Printing
Mobile Operating SystemYes AndroidiPrintLabelAndroid
Power Supply
AC AdaptorInternal S/W Power Supply
Consumable
Roll Width12 - 103.6mmRoll TypeDK Rolls (DK Die-cut Labels / DK Continuous Length Tape)Roll SizeSee Roll TypeRoll CutterDurable Auto cutter (User unreplaceable)
Weight and Measures
Size170 x 222 x 151(WxDxH)mmWeight1715g (without DK roll)
Environment
Energy Star Compliant Yes Auto Power OffYes Off/1/2/4/8/12 Hours
Others
Warranty 3 Years Return To Base Carton ContentsQL-1100, CD-ROM (Software/Drivers/User‘s Guide, ESC/P tools), USB cable, DK-11247 Starter roll (41 labels), DK-22205 (62mm Continuous Length Paper Tape) Starter roll (8 m), AC Power cord Footer**Windows Only
What's in the box?
QL-1100, CD-ROM (Software/Drivers/User‘s Guide, ESC/P tools), USB cable,
DK-11247 Starter roll (41 labels), DK-22205 (62mm Continuous Length
Paper Tape) Starter roll (8 m), AC Power cord
Product Specifications
Up to Print Speed Max. 110mm/sec.
Up to Resolution 300 dpi/1296 dots
Max. Print Height 101.6mm
Max. Print Length 3000mm long
3 Colour LED Lamp Display
USB Ver 2.0 Interface
One Year Return to Base Warranty
