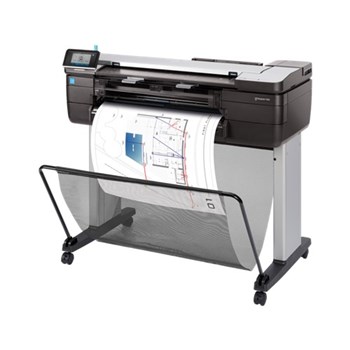

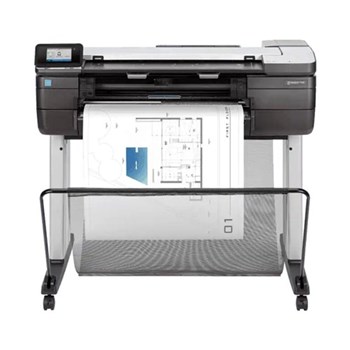

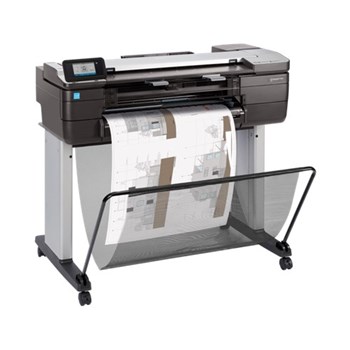

Product Description
Immediately update all your partners on project review results with the most compact large-format MFP. Intuitive, convenient print/scan/copy and HP DesignJet print quality help you communicate effectively and move the project forward.
Specification:-
Print speed 26 sec/page on A1, 81 A1 prints per hour
Print resolution Up to 2400 x 1200 optimized dpi
Technology: HP Thermal Inkjet
Margins Roll: 5 x 5 x 5 x 5 mm / Sheet: 5 x 5 x 5 x 5 mm
Ink types: Dye-based (C, M, Y); pigment-based (mK)
Ink drop 6 pl (C, M, Y); 12.6 pl (mK)
Printheads 1 (C, M, Y, mK)
Printhead nozzles 1376
Line accuracy ±0.1%
Minimum line width 0.02 mm (HP-GL/2 addressable)
Max optical density 8 L* min/2.10 D
Multifunction capabilities Up to 3.81 cm/sec (color, 200 dpi)
Scan speed Up to 11.43 cm/sec (grayscale, 200 dpi)
Scan resolution Up to 600 dpi
Scan format: JPEG, PDF, TIFF
Scan destinations: Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
Thickness 0.8 mm
Handling Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Roll size 279 to 610 mm
Sheet size Input tray: 210 x 279 to 330 x 482 mm / Manual feed: 330 x 482 to 610 x 1897 mm
Standard sheets Input tray: A4, A3 / Manual feed: A2, A1
Grammage 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
Applications: Line drawings, Renderings, and Presentations
Memory 1 GB
Hard disk None
Interfaces Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Print languages (standard) HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
Printing paths Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive
Printer 1098 x 605 x 1155 mm
Shipping 1310 x 570 x 645 mm
Printer Weight 46.7 kg
Shipping Weight 65.7 kg
What's in the box: HP Designjet T830 24-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers
What's in the box?
HP DesignJet T830 24-in MFP
Printhead

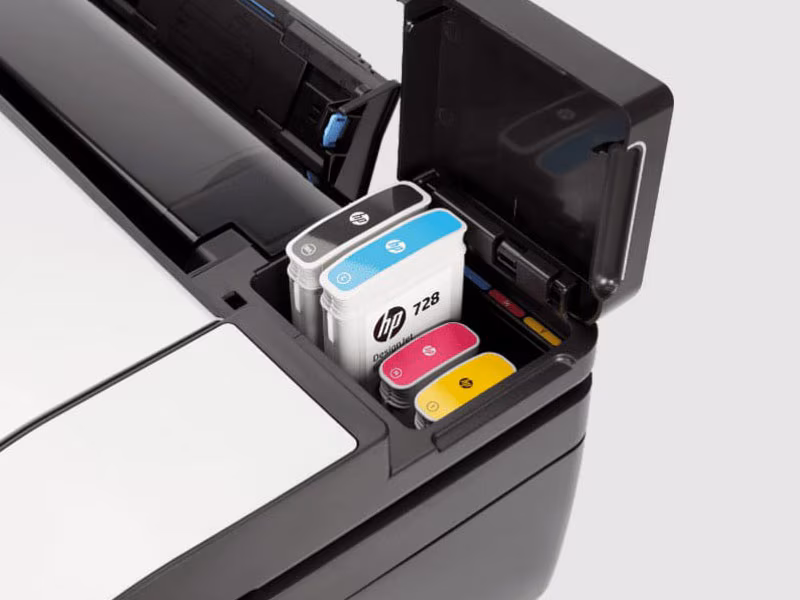

Ink cartridges
Printer stand
Spindle
Quick reference guide,
Set up poster
Startup software,
Power cord,
Refeed preventers
Product Specifications
Max. Print Width 24 Inch
Up to Res 2400 x 1200 dpi
1376 Print Head Nozzles
1 GB RAM Standard Memory
±0.1% Line Accuracy
USB, Network & Wireless
One Year Limited Warranty
Brochure for HP Designjet T830 MFP 24inch Printer with 1 Year Warranty
