Product Description
A 44-inch multifunction printer designed for high-volume production. It features a PrecisionCore print head, UltraChrome XD3 ink with six colors, including Red, and a large-format scanner. This model is perfect for companies needing to print, scan, and copy large-format color drawings, posters, and POS materials. Connectivity options include USB 3.0, 1000/100/10 base-T network, WiFi, and WiFi Direct. It also supports on-board high-speed PostScript and has an optional 960 GB SSD for efficient workgroup operation

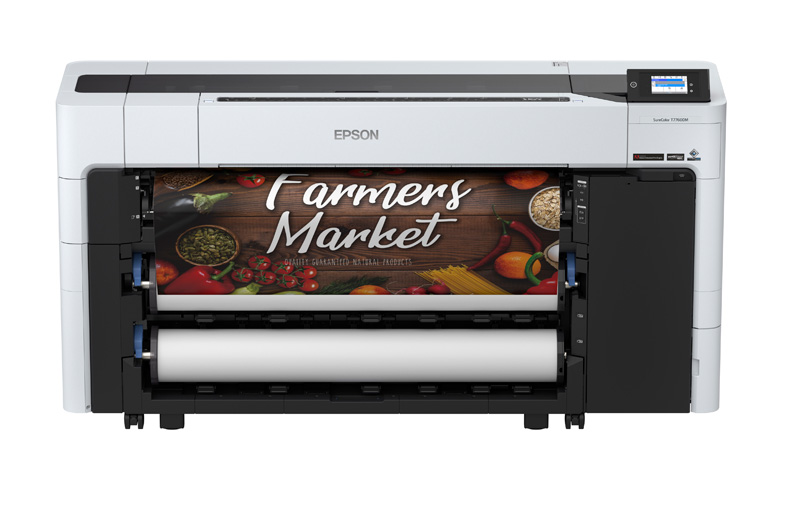

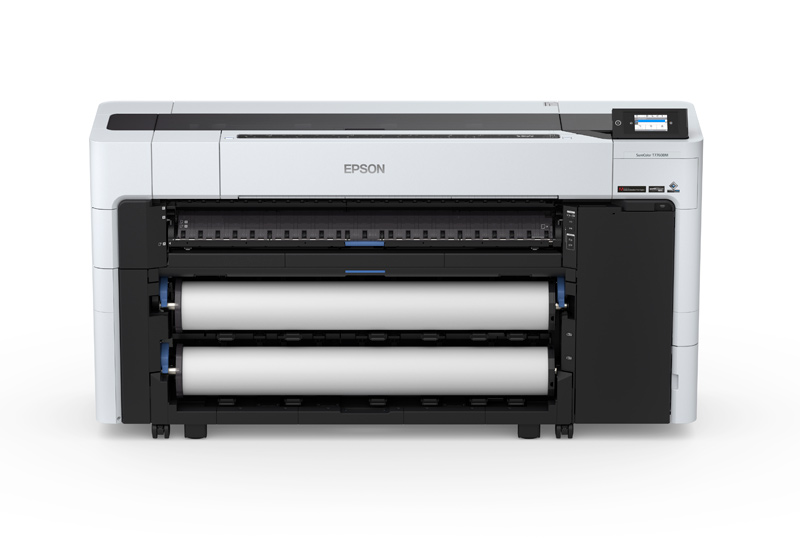

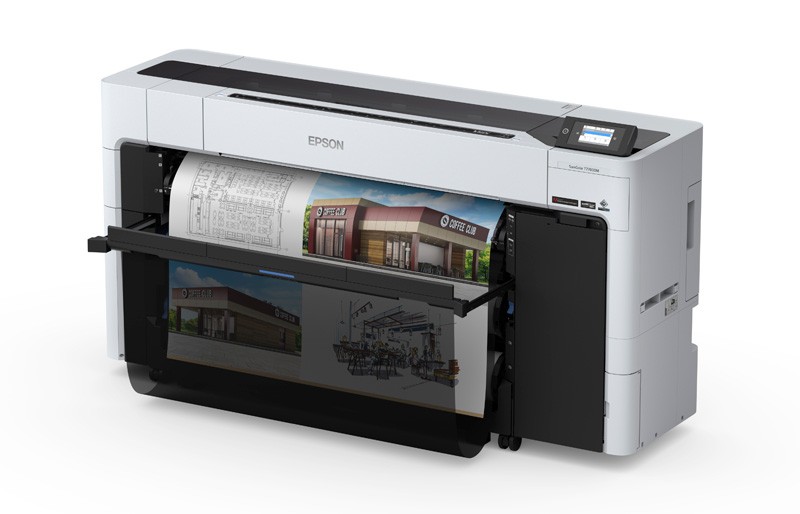

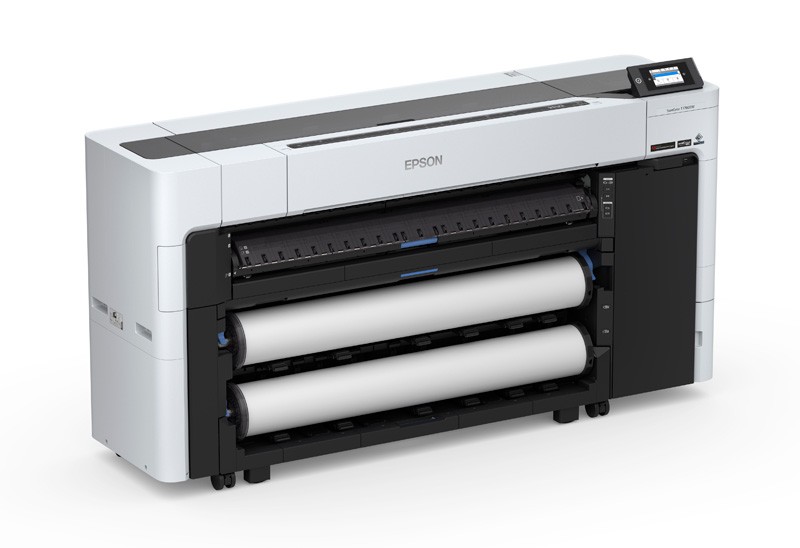

44" Production Drawing & Poster Multifunction Printer
Incredible performance – crisp, detailed, colourful prints with industry-leading 2.64-inch PrecisionCore print head enables poster and POP production at over 27 m2/hr, CAD and technical drawings at up to 130 m2/hr. The integrated scanner supports speeds up to 25.4 cm/s in mono and 11.4 cm/s in colour
Innovative design – up to 25% smaller than equivalent machines with a flat top, lit platen window, and front panel USB interface
Unparalleled image quality – UltraChrome XD3 Ink for fine lines and solid fills with vibrant imaging and enhanced colour gamut
Wide application – print on glossy, bond, matte, and specialty medias, even rigid poster board up to 1.5mm thick, and has an integrated scanner for MFP functionality
Adobe Level 3 Print Engine – print PDFs up to 3x faster with more accurate processing and transparent layer handling
Dual-roll productivity – print continuously or on multiple media types and/or sizes with auto-loading and exchange, alternatively use the second roll as a take-up reel for roll-to-roll production
Easy setup and operation – simple to install, large 4.3" LCD touch screen control panel, all-front loaded consumables, integrated pull-out drop-down media bin
Versatile connectivity – High-Speed USB 3.0, Gigabit Ethernet, and Wi-Fi® connectivity (2.4 GHz and 5 GHz)
Enhanced integration and workflow – over 28 IT security features including IEEE 802.1x, NFC card support, and optional 960GB SSD with encryption
Maximum productivity – ships with Win & Mac drivers, print and accounting s/w, remote management and monitoring with Epson Cloud Solution PORT
Specification:-
TECHNICAL & CAD - PRINTER
PRODUCT NAME SureColor T7760DM - 44" MFP
SIZE
Max Print Width 44 inches wide (1118 mm)
PRINT TECHNOLOGY
Print Head 2.64" PrecisionCore TFP
Print Modes Uni & Bi-directional
Nozzle Configuration 9600 nozzles (400 nozzles x 24 channels x 1head)
Maximum Resolution 2400 dpi x 1200 dpi
Min Droplet Size 3.5 pl
SCAN TECHNOLOGY
Technology Contact Image Sensor (CIS) with RGB filters
Light Source Dual LED (white)
Feed System Sheet pass-through
Maximum Resolution 600 dpi
INK SYSTEM
Family Epson Ultrachrome® XD3
Type All-Pigment Aqueous
Colours C+M+Y+MK+PK+Red
Cartridges: 350 ml or 700 ml ink cartridges
PERFORMANCE (per Sheet)
Print Speed (CAD)
A0 Plain Paper 28s Draft | 43s Speed
A1 Plain Paper 16s Draft | 23s Speed
Print Speed (Poster)
B0 Photo Paper 152s Speed | 281s Quality | 614s Max Quality
A1 Plain Paper 35s Draft | 46s Speed | 258s Quality
SCAN PERFORMANCE
11.43cm/s or 4.5 ips (Colour)
25.4cm/s or 10.0 ips (Mono)
38s per A1 sheet mono
44s per A1 sheet colour
MEDIA SUPPORT
Roll Format Dual roll front loaded spindle, 2" core, 3" (plain paper only), 0.07 to 0.8 mm thick, 254-914 mm wide, 170 mm max diameter, 12.5 kg max weight
Sheet Format Top loaded A4-A0/B1 single sheets, 0.07 to 0.8 mm thick, 203-914 mm wide.
Front-loaded poster board 0.8 to 1.5 mm
Borderless Print 254, 300, 330, 356, 406, 432, 500, 508, 515, 594, 610, 700, 728, 841, 914 mm widths
Auto Cutter, Inbuilt rotary type
Output Sheet or Roll-2-Roll (2nd roll can be configured as an ATU)
Integrated media basket
SCAN & COPY SUPPORT
Media Handling Single Sheet Front Loading
Media Types Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8 mm or 0.55 mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148 mm-914 mm wide, 148-30480 mm long
Document Types Line & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster
Scan To Formats: JPEG, PDF, Encrypted PDF, PDF/A, TIFF
Copy Function 1-99 Sheets
25-755% scaling, Auto Fit
5.494 m (300 dpi) Max copy length
OPERATION
Control Panel 4.3" Colour LCD touch screen
Control Code ESC/P Raster, HP/GL/2 & HP-RTL*
Adobe PostScript Level 3
Connectivity USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct
Included Software: Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), PS driver, PS folder
Software via web download HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, Epson Media Installer, Epson Print Layout, Epson Print Automate, Epson Cloud Solution PORT
Roll Management System (Roll Format) Barcode Roll Media Management system helps keep track of the type of media and how many metres are left on the roll
USB Input Front panel USB slot enables PDF, JPEG, and TIFF files to be printed directly from a thumb drive
Compatibility Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later, MacOS 11 or later
Networking IPv4 & IPv6 addressing, IPsec, IEEE902.1X and SSL/TLS support
NFC Card Reader slot (card not included)
Memory 4 GB + 4 GB RAM (embedded in HW and Adobe PostScript unit) + 960 GB SSD
Physical (WxDxH) 1848 × 499 × 975 mm, 166 kg (no ink, media, or options)
ARM 64 Processor Compatibility IMPORTANT NOTICE: Several printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges to issue updates. Unfortunately, although we will roll these out as quickly as we can, the process is not expected to be completed until early 2026. In the interim, we do not recommend operation with this type of equipment.
ENVIRONMENT
Operational Temp 10° to 35° C
Operational Humidity 20 to 80% (40 to 60% is recommended for no condensation)
Power Supply 100 - 240 V AC, 50/60 Hz
Power Consumption 90 W Operating, 44 W Standby, 2 W Sleep
Operating Noise 50 dB
SHIPPING INFO
Packaging (WxDxH) 1,984 x 750 x 1,199 mm, 203 kg
What’s in the Box: Printer, Power Cord, set of 240 ml ink cartridges, Standard and Borderless Maintenance Tanks, Setup Guide & Warranty Info. Driver, user software & manuals on CD.
Delivery & Install. Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer, and it is recommended that an additional set be purchased for production work. Delivery, de-boxing, and package removal are not typically included but can be provided at an additional charge for most locations.
Service & Support Support is provided via authorised Epson Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option, or a consumable, please contact your dealer for initial problem evaluation. Should your printer require service, this will be provided on-site free of charge within the period covered by your Warranty and any optional CoverPlus. Note: The provision of service is subject to the Large Format Printer Warranty terms, and traveling charges may apply for equipment located outside major metropolitan areas. CoverPlus requires activation of the Epson Cloud Solution PORT and connection of your printer.
CONFIGURATION OPTIONS
C11CH84401 T7760DM with 1Yr On-Site Warranty
SCT7760DM3YR T7760DM with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT7760DM5YRR T7760DM with 4Yr CoverPlus On-Site Service Pack (total 5 yrs cover)**
OPTIONAL ACCESSORIES
C12C936171 Additional 44” Roll Feed Spindle
