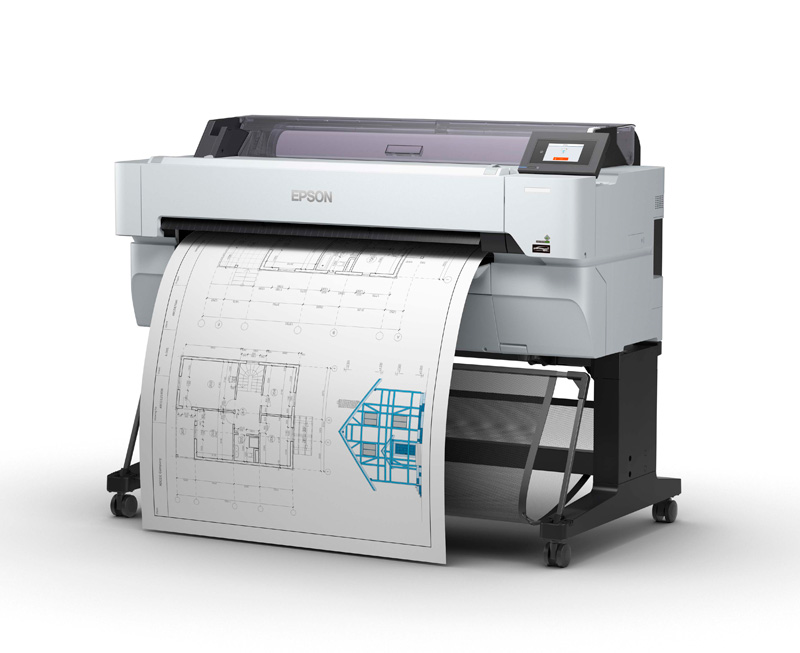

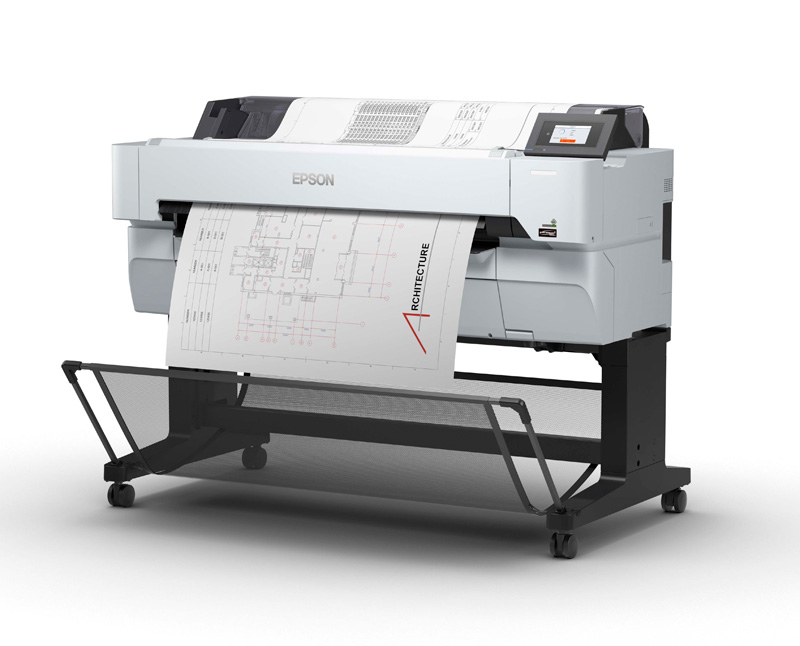

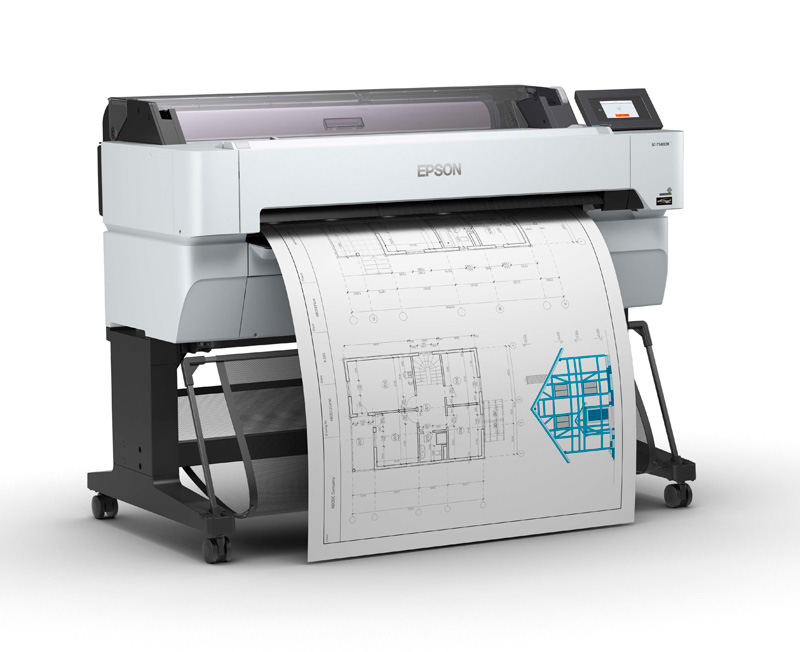

Product Description
The SC-T5460M will print an A1 image in as little as 22s with output that dries almost instantly to be water and rub resistant. Designed for businesses that want to produce wide-format prints, the printer is supplied with a stand and paper basket and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
High Productivity – prints an A1 image in as little as 22s, scans an A1 image in 4s, copies an A1 image in 38s and includes an integrated auto-cutter
High Precision – 2400 x 1200 dpi resolution Epson PrecisionCore™ print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
High Durability – all-pigment Epson UltraChrome™ XD2 ink dries almost instantly to be moisture & scratch resistant
High Reliability – solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 5 years1
High Flexibility – supports roll paper up to 36" (914mm) wide, sheet paper up to A0 and has an integrated scanner for MFP functionality
High Convenience – scans and recognises highlighted documents, has a large 4.3" touchscreen panel with an easy-to-use interface, has front-loaded ink and media, a Barcode Roll Media Management system and comes with a stand and basket to catch your prints
Low Running Cost – ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 350 ml, and you can track how much your prints are costing with the LFP Accounting tool
Easy Integration – compact design, high speed Gigabit Ethernet, convenient WiFi / WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation2
Greater Connectivity – Connect a USB thumb drive to the printer and print JPEG or TIFF images directly from the USB
SIZE
Max Print Width36 inch wide (914mm)
PRINT TECHNOLOGY
Print Head PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes Uni & Bi-directional
Nozzle Configuration800 per colour
Maximum Resolution2400dpi x 1200dpi
Minimum Ink Droplet Size 4.0pl
SCAN TECHNOLOGY
Technology Contact Image Sensor (CIS) with RGB filters
Light SourceDual Low Angle
Feed System Sheet pass-through
Maximum Resolution600dpi
INK SYSTEM
FamilyEpson Ultrachrome® XD2
TypeAll-Pigment Aqueous
ColoursC+M+Y+K
Cartridges CMYK 110ml
CMYK 350ml
PRINT PERFORMANCE (per Sheet)
CAD A122sec
Figures represent print times only for Epson test sample images as shown, produced on plain paper in speed mode. Additional processing time may be required, with individual results likely to vary depending on print mode, software, operating environment, media, and data file size/type.
SCAN PERFORMANCE
Max Scan Speed11.43cm/s or 4.5 ips (Colour)
19.05 cm/s or 7.5 ips (Mono)
Max Copy Speed 38s per A1 sheet mono
44s per A1 sheet colour
Scan speeds represent feed times only for a standard CAD image on plain paper @200dpi in TIFF format and are provided for comparison purposes only. Additional processing will be required, with the total time taken for completion dependent on the media & image type, media orientation, image processing, image scaling and other factors. Copy times represent the total scan, processing and print time for the image shown, scanned long edge and printed on plain paper. Individual results will vary depending on media & image type, media orientation, image processing, image scaling and other factors.
MEDIA SUPPORT
Roll FormatSingle roll top loaded spindle, 2" core, 3” core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg
Sheet FormatTop loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick
Borderless PrintingSupported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm)
Cut Sheet only borders to the left and right of the sheet
Auto CutterInbuilt rotary type
Manual Double Sided PrintingPlease refer to the user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. The Output Printer Stand incorporates a media basket
SCAN & COPY SUPPORT
Media Handling Single Sheet Front Loading
Media TypesPlain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-914mm wide, 148-30480mm long
Document TypesLine & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster
Scan To FormatsJPEG, PDF, & TIFF
Copy Function1-99 Sheets
25-400% scaling, Auto Fit
OPERATION
Control Panel 4.3" Colour LCD touch screen
Control CodeESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1
ConnectivityUSB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Included Software/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only)
Software via web download driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, LFP Accounting tool
Roll Management System (Roll Format)Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll
USB Input Front panel USB slot enables JPEG and TIFF files to be printed directly from a thumb drive
CompatibilityWindows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory1GB RAM + 8GB microSD Card
Physical (WxHxD)Floor Standing: 1385 × 966 × 1060 mm, 89kg (open basket, no consumables, media or options)
What's in the box?
SureColor T5460M-36" MFP
Power Cord
Set of 110ml ink cartridges,
1 x Maintenance Tank
Setup Guide & Warranty Info.
Driver, User software & manuals on CD
Product Specifications
Up to 36-inch Wide Printing
Up to Res 2400 x 1200 dpi
1 GB RAM Memory
800 Nozzles Per Colour
4.3" Colour LCD touch screen
USB, Network & Wireless
One Year on Site Warranty
