Product Description
Produce exceptional quality computer graphics prints with an 11 colour, 44-inch large-format printer featuring innovative print technology and newly developed inks.
Experience powerful colour expression with a super-wide colour gamut and stunning print quality
Produce premium-quality computer graphics designs with striking vibrancy and clear clarity, with Canon’s 11-colour LUCIA PRO pigment ink featuring newly developed, high-impact colours. Advanced media handling supports high-volume output.
Industry-standard coverage
The imagePROGRAF GP-4000 is the world’s first PANTONE™ calibrated printer for PANTONE PASTEL & NEON GUIDE Coated, in addition to 99% coverage from the PANTONE FORMULA GUIDE Solid Coated
High productivity

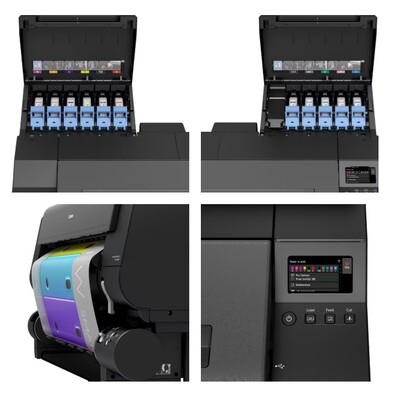

Smart roll paper and multifunction roll capabilities help maximise efficiency, while hot swap ink tanks allow ink to be replaced without interrupting the printing process.
PIN-accessed security
The enhanced security print feature brings extra confidence in your data security as it utilises a PIN access system to help prevent leakage due to misidentification, loss.
Specifications:-
Printer Technology
Printer Type 11 Colour 44"
Print Technology Canon Bubblejet on Demand 11 colours integrated type (12 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total: 18,432 nozzles MBK, PBK, C, M, Y, GY, R, O, G, V, FP: 1,536 nozzles each
Line Accuracy ±0.1% or less
User adjustments are necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch 600 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size minimum 4 pl per colour
Ink Capacity Bundled Starter Ink: 330 ml (MBK, PBK, C, M, Y, GY, R, O, G, V, FP)
Sales Ink: 160 ml, 330 ml, 700 ml
Ink Type Pigment inks: 11 colour MBK, PBK, C, M, Y, GY, R, O, G, V, FP
Printer Languages PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB
Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex
Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to the user manual on how to activate/deactivate the wireless LAN
Memory
Standard Memory 3GB Expansion slot: No
Hard Drive 500GB (Encrypted)
Print Speed
Poster Plain Paper (A0) 01:37 (Fast) 02:49 (Standard)
Heavy coated Paper (A0) 02:49 (Standard) 05:33 (High Quality)
Photo Paper (A0) 05:33 (Standard) 08:16 (High Quality)
Media Handling
Media Feed and Output Upper Roll Paper: One Roll, Front-loading, Front Output
Lower Roll Paper (option): One Roll, Front-loading, Front Output
Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Width Roll paper: 152.4 mm - 1118 mm Cut sheet: 152.4 mm - 1118 mm
Media Thickness Roll/Cut: 0.07 mm - 0.8 mm
Minimum Printable Length Roll paper: 101.6 mm Cut sheet: 203.2 mm
Maximum Printable Length Roll paper: 18 m (Varies according to the OS and application) Cut sheet: 2133.6 mm
Maximum Media Roll Diameter 170 mm
Media Core Size Internal diameter of roll core: 2"/3"
Margins Recommended Area Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable Area Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity Roll Paper: 1 roll Cut Sheet: 1 sheet
Media Take-Up Roll Unit: A dual-direction roll take-up unit allowing print surface to be wound inside or outside of the roll.
Borderless Printing Width (Roll Only) [Recommendation] 515 mm (JIS B2), 728 mm (JIS B1), 1030 mm (JIS B0), 594 mm (ISO A1), 841 mm (ISO A0), 10", 14", 17", 24", 36", 42", 44"
[Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 6", 8", 12", 15", 16", 20", 22", 30", 34", 300 mm, 500 mm, 600 mm, 800 mm, 1000 mm, and custom roll width (152.4 - 1118 mm)
Maximum Number of Delivered Prints Standard position: 1 sheet
Flat position: A2 landscape, glossy paper up to 10 sheets, coated paper up to 20 sheets (excludes strong curled condition)
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption Operation: Approx. 115W
Sleep mode: Approx. 2.2W
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: Approx. 0.2W
Operating Environment Temperature : 15~30℃, Humidity : 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure) Pressure
Operation: 49 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
Standby: 35 dB (A) or less
Power Operation: 6.6 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
Regulations Europe: CE mark
Other Countries: CB certification
Environment Certificates TUV, CB
Dimensions and Weight
Physical Dimensions and Weight 1593 x 984 x 1168 mm (Basket Open)
1593 x 766 x 1168 mm (Basket Closed)
124 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight Printer (Main unit with stand and pallet): 1820 x 915 x 1042 mm 178 kg
Roll Unit: 1727 x 562 x 461 mm 33 kg
What's Included
What's in the Box?
Printer, 1 print head, 1 roll holder (spool), 3-inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet
Software Included
imagePROGRAF GP Printer Driver and PosterArtist Lite
Other software is available for download from the Web.
Options
Optional Items
2/3" Roll Holder : RH2-46
Roll Unit : RU-43
Consumables

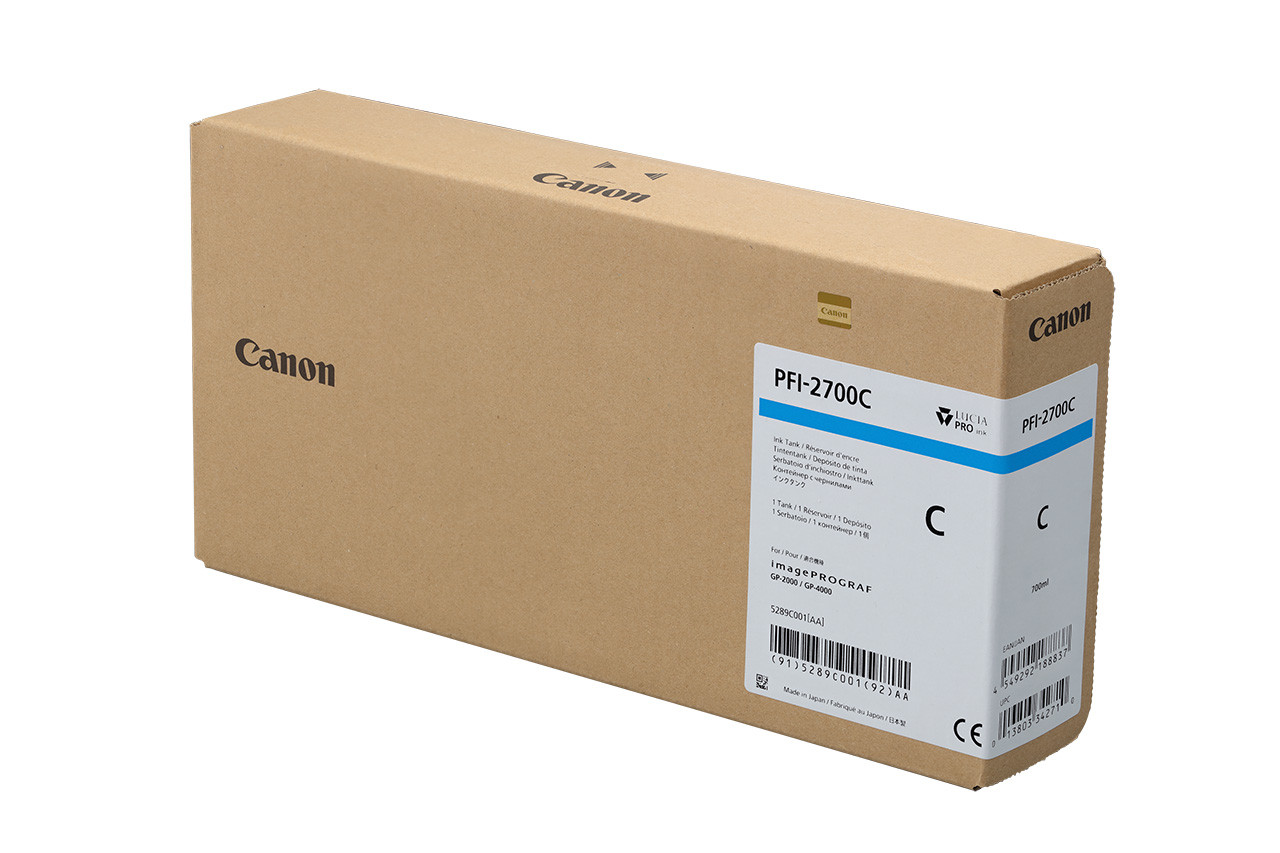

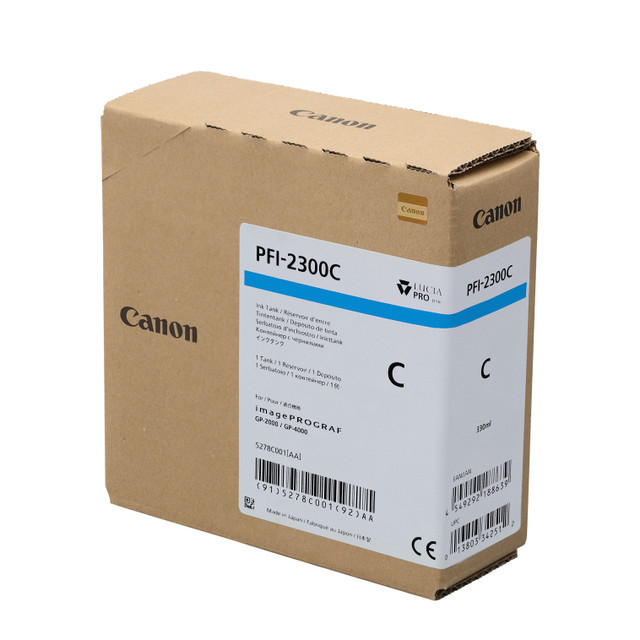

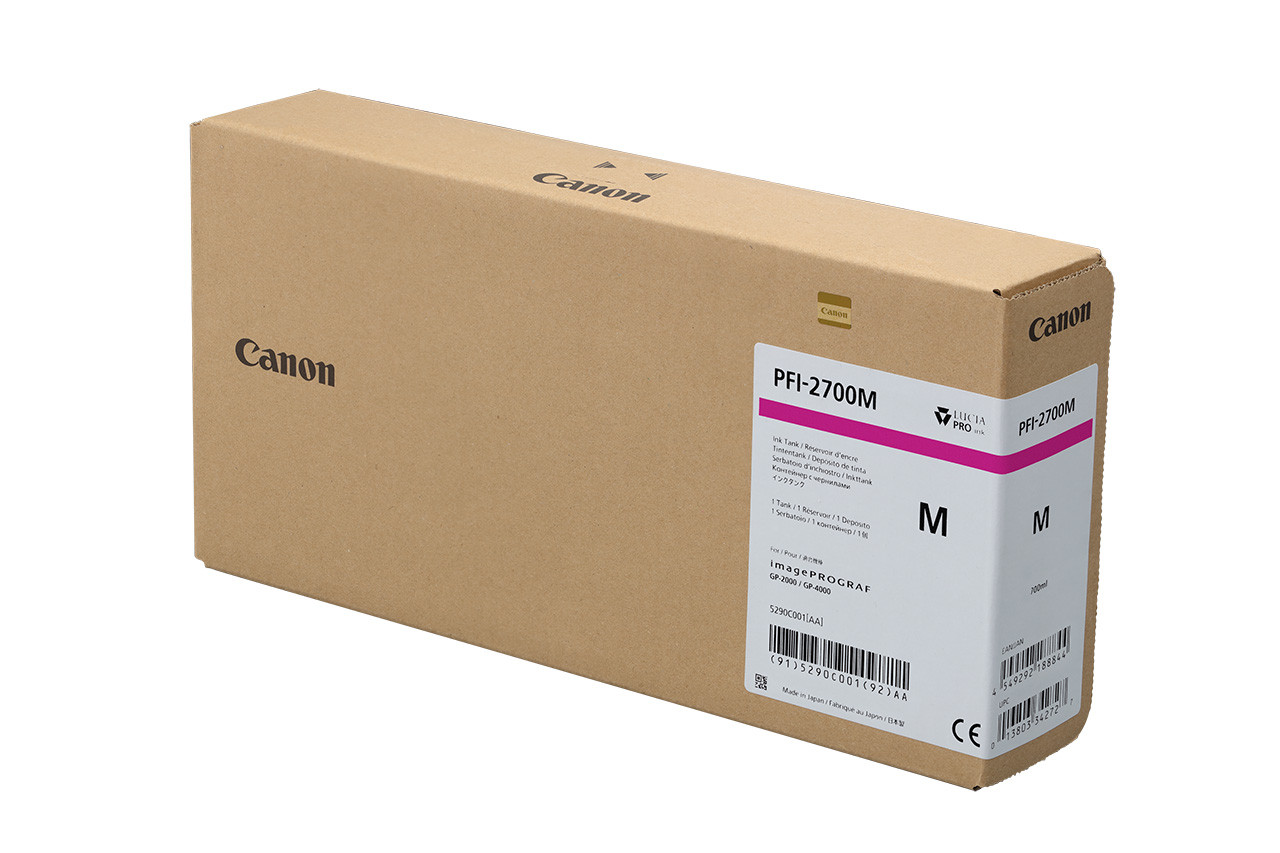

User Replaceable Items Ink Tank : PFI-2100 (160ml), PFI-2300 (330ml), PFI-2700 (700ml)
Print Head: PF-10
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
