Brief Overview
IPFPRO-6000S 60 8 COLOUR GRAPHIC ARTS PRINTER WITH HDD
Product Description

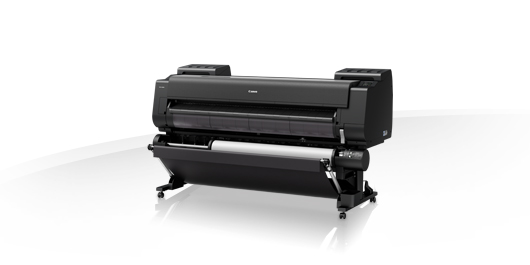

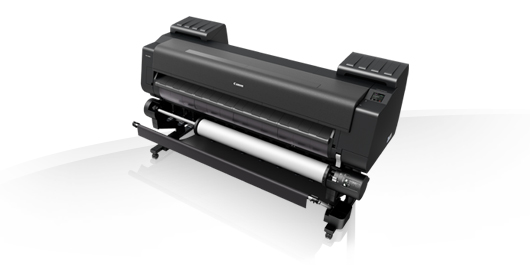

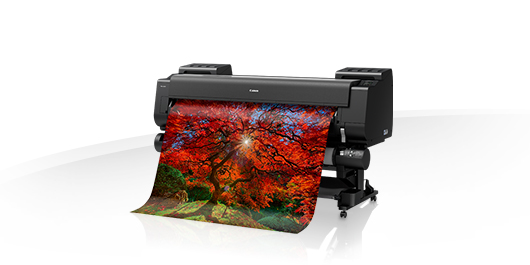

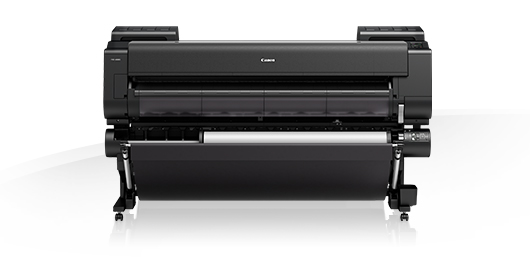

imagePROGRAF iPF PRO-6000S
The iPF PRO-6000S large format printer is one of the most versatile machines in our range, boasting a 60” borderless print width with the smallest footprint in its class. An optionall Mulitfunctional Roll Unit gives customers the option to load two rolls of paper at the same time or have a take-up reel all from the one accessory
Key Selling Points
60" wide printing with the same footprint as most 42"-44" wide printers
Unique ink configurationImprove image quality in faster print modes
Reduced ink consumption
LUCIA PRO pigmented ink
For durability and light-fastness
Colour Management and Control
Fleet-wide Colour Management
Target Markets
Graphic Designers
Print for Pay
Service bureaus
Internal print rooms
Proofing customers
Exhibition and event printing
Printer Type
8 Colour 60"/1524mm
Print Technology
Canon Bubblejet on Demand 8 colours integrated type (12 chips per print head x 1 print head)
Print Resolution 2400 x 1200 dpi
Number of Nozzles
18,432 nozzles (1536 nozzles x 12 colour)*
*The four key colours (C, M, Y, MBk) are arranged symmetrically on the print head
Nozzle Pitch
600 dpi x 2 includes Non-firing nozzle detection and compensation system
Line Accuracy
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Ink Droplet Size
minimum 4 pl per colour

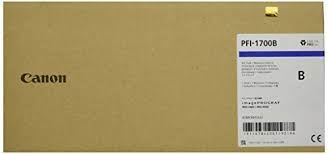

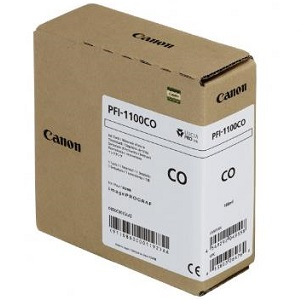

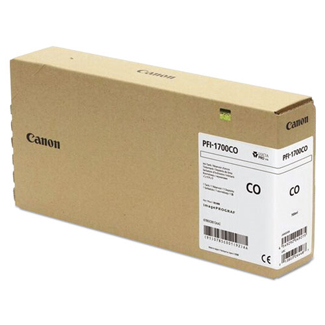

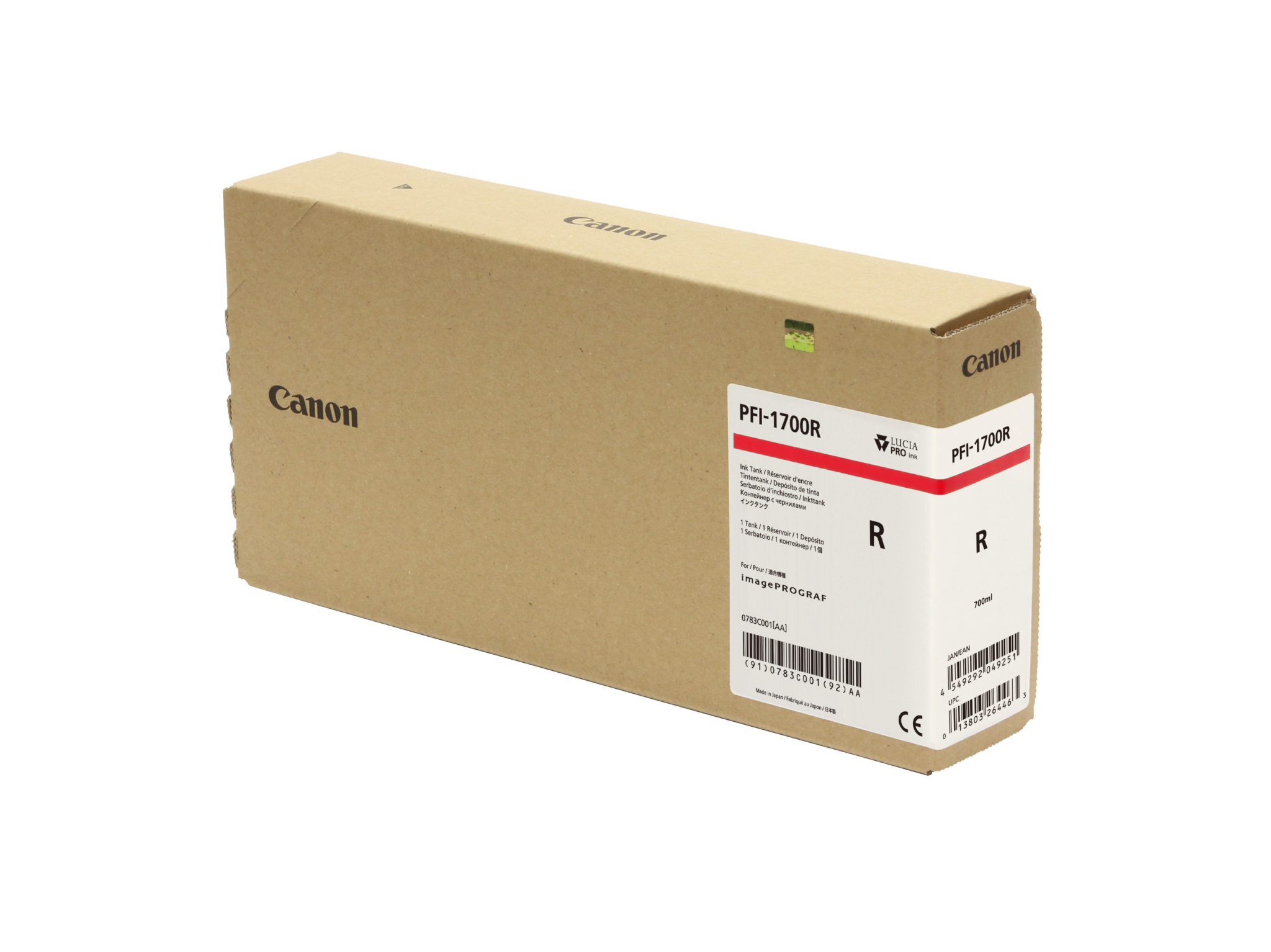

Ink Capacity
Sales use：160ml/330ml/700ml
Bundled starter ink: 330ml (C, M, Y, MBk), 190ml (PC, PM, Bk, GY)
Ink Type
Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Grey
OS Compatability
Microsoft Windows 32 Bit: Vista, 7, 8, 8.1, 10, Server 2008, 64 Bit: Vista, 7, 8, 8.1, 10, Server 2008/R2, Server 2012/R2
Apple Macintosh: OSX 10.7.5 ~ 10.11
Printer Languages
SG Raster (Swift Graphic Raster), PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB 2.0
Ethernet: 10/100/1000 base-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
MEMORY
Standard memory 3 GB
Hard Drive
320GB
PRINTING PAGE SIZE/PRINT SPEED
PRINTING SPEED
Media Type (A0 Page Size)
Print Mode: Print Time
Plain Paper (A0 Page Size)
Fast: 0:55 min
Standard: 2:51 min
Coated Paper (A0 Page Size)
Fast: 1:35 min
Standard: 2:51 min
Glossy Photo Paper (A0 Page Size)
Fast: 2:58 min
Standard: 4:46 min
MEDIA HANDLING
Media Feed and Output
Roll Paper: Two Roll, Front-loading, Front Output
Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 203.2 -1524 mm
Cut sheet: 203.2 -1524 mm
Media Thickness
Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length 203.2 mm
Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 1.6 m
Maximum Media Roll Diameter
170 mm
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Roll Paper: Two roll automatic switching possible
Cut Sheet: 1 sheet
Media Take-up roll unit
Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
Borderless Printing Width (Roll Only)
515mm(JIS B2), 728mm(JIS B1), 1030mm(JIS B0), 594mm(ISO A1), 841mm(ISO A0), 10”, 14”, 17”, 24”, 36”, 42”, 44”, 50”, 54”, 60”, 257mm(JIS B4)*, 297mm(ISO A3)*, 329mm(ISO A3+)*, 420mm(ISO A2)*, 8”*, 16”*, 30”*, 300mm*
*Some environmental conditions may not produce the desired result.
Maximum number of delivered prints
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10 sheets, Coated paper less than 20 sheets (excludes strong curled condition)
DIMENSIONS AND WEIGHT
Physical Dimensions and Weight
W x D x H 1999 x 984 x 1168 mm (Basket Open)
1999 x 766 x 1168 mm (Basket Closed)
137 kg (including Roll Holder Set, excluding ink and print heads)
Packaged Dimensions and Weight
Printer w x D x H (Main unit with pallet): 2227 x 915 x 1022 mm 211 kg
Roll unit: 2133 x 562 x 461 mm 40 kg
What's in the box?
imagePROGRAF PRO-6000S
Multifunction Roll Unit with Tools (Separate Box)
Stand (legs, basket & tools)
US AC Power Cable
Print Head PF-10
Starter ink tanks (PBK/PC/PM/GY -330ml ) (MBK/C/M/Y – 330ml)
2" Roll Holder with 3” Core Adapters
Quick Guide
Safety and Environmental Sheet
Setup Guide
Printer Stand Setup Guide
Important Information Sheet
Print Head Alignment Sheet
USB Connection Sheet
Software Discs (Windows Drivers)
Sample media (5 sheets of Heavy Weight Coated HG paper A2 size)
Call Center Notice Card (USA)
User Registration Card
Printer and Print Head Warranty Cards (USA and Canada)
Canon USA Media Compatibility Sheet
imageWARE Remote Service Terms Leaflet
Product Specifications
Max Printable Width 60"
Max Res 2400 x 1200 dpi
12 LUCIA PRO Inks
320GB Hard Drive
3GB RAM Memory
USB, Network & Wireless
One Year on site Warranty
Brochure for Canon imagePROGRAF PRO-6000S 60" Colour Large Format Inkjet Printer
