Product Description
Canon’s imagePROGRAF TX series is purpose-designed to meet the needs of large retail outlets, industry and pay-for-print environments. With smart technology, like reserve sub-ink tanks, automatic media detection and paper feeders, operator involvement is minimised while workflow is maximised. An optional dual roll unit means you can switch between jobs with ease and borderless printing on any paper size means you’re assured of the most professional results at a rapid speed of 3.2 A1 pages per minute.
Printer Type
5-Color 44-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh® OS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
160 ml, 330ml or 700ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet - 6” - 44”
Roll Feed - 6” - 44”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
6.7” (170m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: Cut Sheet, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less
Physical Dimensions
46” x 63” x 47” (Main unit and TX Stacker)

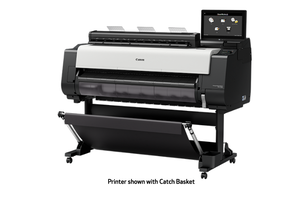

46” x 63” x 39” (Main unit and Catch Basket Opened)
Weight
approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 252 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 116W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
What's in the box?
imagePROGRAF TX-4100
TX Stacker or Catch Basket
Printer Stand
2"/3" Core Media Spool (Adaptors Included)
US AC Power Cable
Tools and Screws
Print Head PF-06
Maintenance Cartridge (Installed)
5 Ink Tanks (330 ml: MBK/C/M/Y/BK)
Ethernet Card (built-in)
USB 2.0 High-speed Interface
USB Connection Sheet
iWR Service Terms Leaflet
User Manual
Quick Setup Guide
User Software CD for Windows (Printer Driver Utilities)
PosterArtist Lite CD
User Registration Card
Warranty Statement
Z36 Scanner Box
Z36 Scanner with power cord, USB 3.0 Cable
15.6" System Controller
3:1 Trident Power Cord
Power Supply
Mount for system controller
(2) Paper Edge Guides
(3) Document Return Guides
Calibration Target
Assembly and Start-up Guide
Product Specifications
Up to 44inch Wide Printing
Up to Res 2400 x 1200 dpi
500GB Hard Disk Drive
2560 Nozzles Per chip
5 Picolitre Per Colour
USB, Network & Wireless
One Year on Site Warranty
