High speed printing in its class – Up to 350 mm/second
Superb reliability – longer print head life of 200km and enhanced auto-cutter life of 3 million cuts
Designed for the cloud – ePOS-Print and ePOS-Display prints and displays in XML format for web apps
Triple interfaces – maximum connectivity for your business
Advanced paper-saving functions for thermal receipt
Two-year warranty
MULTIFUNCTION / HYBRID PRINTER

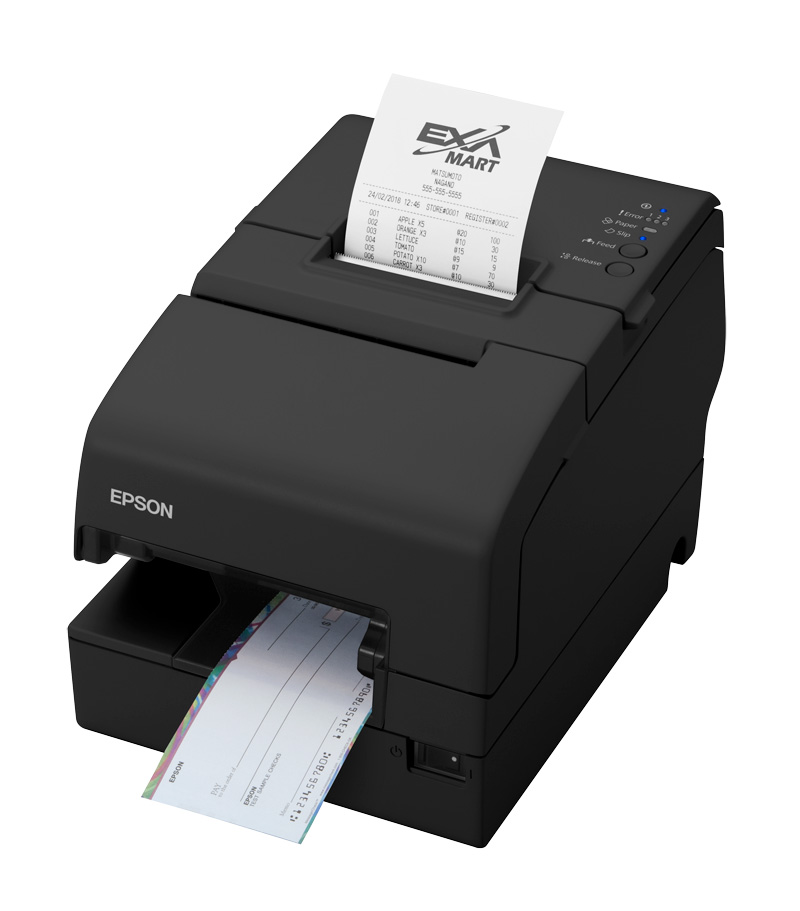

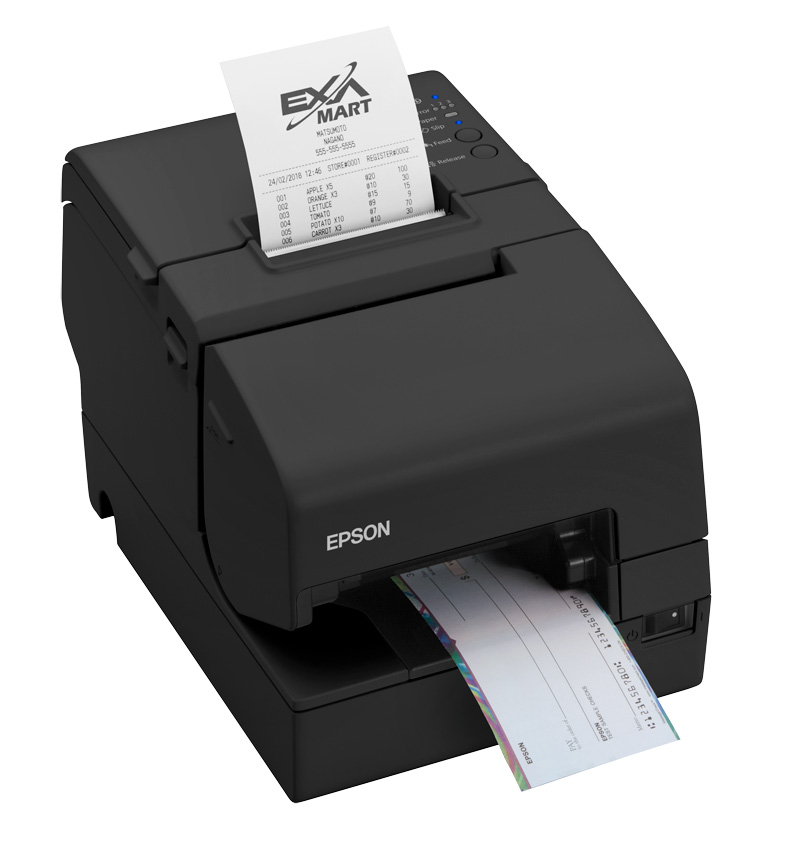

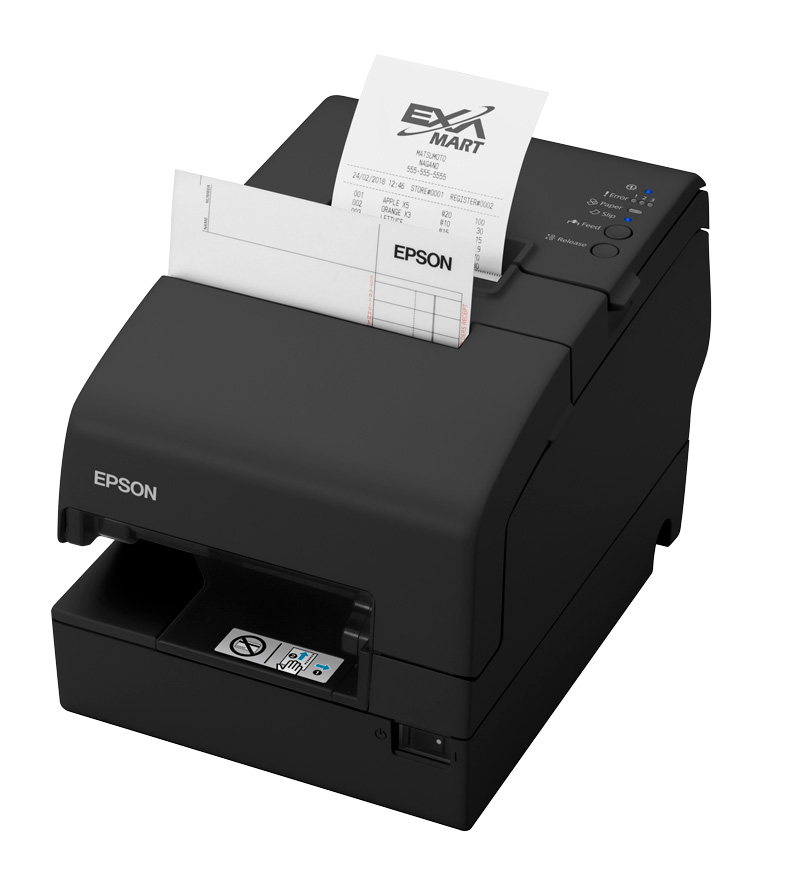

PRODUCT NAME TM-H6000V
PRINTER SPECIFICATION RECEIPT SLIP ENDORSEMENT PRINTER
PRINT METHOD Thermal line printing 9-pin serial impact dot matrix 9-pin impact dot matrix
PRINT SPEED Up to 350mm/sec Up to 5.7 lps
(40 columns, 17.8 cpi) Up to 4.0 lps (21.2cpi)
PRINT FONT 9 x 17 / 12 x 24 / 10x20 5 x 9 / 7 x 9 5 x 7
COLUMN CAPACITY 56 / 42 / 50 columns 60 / 45 columns 40 columns
CHARACTER SIZE 0.99 x 2.4mm (W x H)
1.41 x 3.39mm (W x H)
1.27 x 2.82 (W x H) 1.56 x 3.1mm (W x H)
1.24 x 3.1mm (W x H) 1.09 x 2.41mm (W x H)
BARCODE One- and two-dimensional and composite n/a n/a
PAPER DIMENSIONS 79.5 ± 0.5 x dia. 83.0mm 68-230mm (W), 68-297mm (L) n/a
PAPER THICKNESS 0.048 to 0.08 mm 0.09 to 0.47mm 0.09 to 0.31 mm
COPY CAPABILITY n/a One original and three copies One original & 2 copies
IINKED RIBBON n/a ERC-32B (Black) ERC-43B (Black)
RIBBON LIFE n/a 4,000,000 characters 3,000,000 characters
POWER CONSUMPTION Approx. 1.8 A
Standby approx. 0.1a minimum Approx. 1.7 A Approx. 1.7 A
RELIABILITY MTBF: 360,000 hours
MCB: 96,000,000 lines MTBF: 180,000 hours
MCB: 29,000,000 lines MTBF: 180,000 hours
MCB: 29,000,000 lines
CHARACTER SET 95 Alphanumeric, 18 international sets, 128 x 12 extended graphics set
INTERFACE Built-in USB and Ethernet. WiFi Option, UIB option for Serial, Parallel, Powered USB
DATA BUFFER 45 bytes or 4 KB (up to 384 KB for graphic memory)
AUTOCUTTER High-speed with partial cut
SUPPLY VOLTAGE 24 VDC ± 7 %
D.K.D. FUNCTION 2 drivers
SENSORS Cover open, Top of form, Bottom of form, Slip eject, Roll paper near end, Roll paper end
FACTORY OPTIONS MICR device, Endorsement printer, 58mm width paper guide PG-58II, Power supply unit (PS-180)
COLOUR White (ENNB.5), Black (EBCK)
ENVIRONMENTAL STANDARDS RoHS compliant
EMI STANDARDS VCCI class A, FCC class A, CE marking, AS/NZS CISPR 32:2013 Class A (EN 55032 (2012) Class A)
SAFETY STANDARDS UL / CSA / TÜV (EN60950) / GOST-R (IEC60950. CISPR22)
OVERALL DIMENSIONS
186mm (W) x 278mm (D) x 181mm (H)
WEIGHT
Approximately 4.4Kg
cpi: characters per 25.4mm (characters per inch)
lps: lines per second
