Product Description

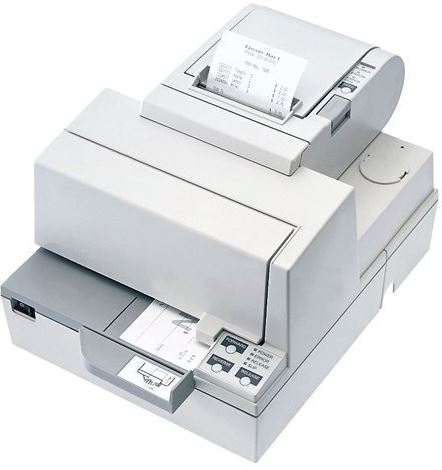

Fast and powerful multifunction printer
The speedy yet quiet TM-H5000II boasts a thermal print head for beautiful receipts and a dot-matrix print head for sharp slips as large as A4 size. This high-performance, multifunction printer supports a wide variety of applications. It also sports a user-friendly design, including such standard features as a convenient drop-in loading system for roll paper and a time-saving auto-cutter that busy operations will appreciate.
Two Different Printing Heads
The TM-H5000II has two printing heads: a thermal head for crisp printing of receipts and an impact head that handles slips as large as A4 size. Two types of printing in one printer make the TM-H5000II a new force in business.
Lightening Fast, Quiet Printing
The TM-H5000II will never keep your customers waiting or distract them with noise. Receipts are printed at amazing speed-28.4 LPS(1/6-inch paper feed). And, they're printed so quietly, you're customers will hardly notice.
User-friendly Design
A new drop-in roll-paper feeding system takes the hassle out of paper replacement. Just drop the paper in. That's it. Moreover, an auto-cutter is standard, so operators can concentrate on giving even better service.
Further, a slip extension table ensures smooth feeding of wide slips. It keeps the paper from snaking, and prevents double-printing and other printing errors.
Also, an ASB function automatically forwards the printer status, allowing operators to constantly monitor the status of the printer.
Supports a Variety of Printing
The TM-H5000II not only supports nine kinds of bar code UPC-A, UPC-E, JAN8(EAN), JAM13(EAN), CODE39, CODE93, CODE128, ITF, and CODABAR, it also prints both ladder and fence bar codes. What's more, you can create a unique receipt design by specifying page mode or downloadable fonts.
Speedy Transaction
Flash memory for digital logos is available on the printer side. Settable up to 384 Kbytes, it speeds up transactions.
Superb Reliability
Epson's world-renowned quality and reliability are reflected in every component and mechanism of the TM-H5000II, ensuring products unsurpassed in performance and dependability.
PRINTER SPECIFICATION RECEIPT SLIP
PRINT METHOD Thermal line printing 9-pin serial impact dot matrix
PRINT FONT 9*17 / 12*24 7*9 / 9*9
COLUMN CAPACITY/td> 56/42 columns 88/66 columns
CHARACTER SIZE 0.99(W)*2.4(H)/ 1.41(W)*3.39(H)mm 1.3(W)*3.1(H)/ 1.6(W)*3.1(H)mm
CHARACTER SET 95 Alphanumeric
32 International
128*7 Graphic 95 Alphanumeric
32 International
128*10 Graphic
CHARACTERS PER INCH 20CPI / 15 CPI 16.7CPI / 12.5 CPI
PRINT SPEED 28.4 LPS(120mm/sec) 311/233CPS
DATA BUFFER 4K bytes / 45 bytes
INTERFACE RS-232C / Bi-directional parallel/RS-485(option)
PAPER DIMENSIONS Thermal roll paper
79.5mm±0.5mm*dia. 83.0mm 70(W)*70(L) to 210(W)*297(L)mm
PAPER THICKNESS 0.06 to 0.07mm 0.09 to 0.36mm
COPY CAPACITY – One original and four copies
INKED RIBBON – ERC-31(purple, black)
RIBBON LIFE – 7*106 characters (purple)
4.5*106 characters (black)
POWER 24VDC±10%
CURRENT CONSUMPTION Approx. 1.7A (at 24VDC) Approx. 1.9A (at 24VDC)
D.K.D FUNCTION 2 drivers
RELIABILITY MTBF: 36*104 hours
MCBF: 52*106 lines MTBF: 18*104 hours
MCBF: 29*106 lines
EMC STANDARDS VCCI#1, FCC class A, CE marking
SAFETY STANDARDS UL, C-UL, TÜV, GB4943-1995
OVERALL DIMENSIONS 252mm (W) x 331mm (D) x 201mm (H)
WEIGHT Approximately 6.5Kg
Product Specifications
9-pin Serial Impact Dot Matrix
Up to Max. Resolution 180 dpi
Up to Print Speed 4.70lps
95 Alphanumeric Char Sets
Automatic Cutting Method
USB & Serial Interface
2 Years Limited Warranty
